FLIR K Series User Manual

In-truck charger (optional
accessory)
12
12.1 Introduction
Thank you for choosing the Flir K series in-truck charger from Flir Systems.
The in-truck charger is intended to be mounted on a flat surface in the cab, in one of the
equipment lockers, or in another suitable compartment on the fire engine. The in-truck
charger has five ports for cable routing—one through the rear of the metal bracket and
one port on each side of the in-truck charger.
The in-truck charger can also be powered using a standard Flir Systems power supply,
and has a battery charger located at the lower front of the unit.

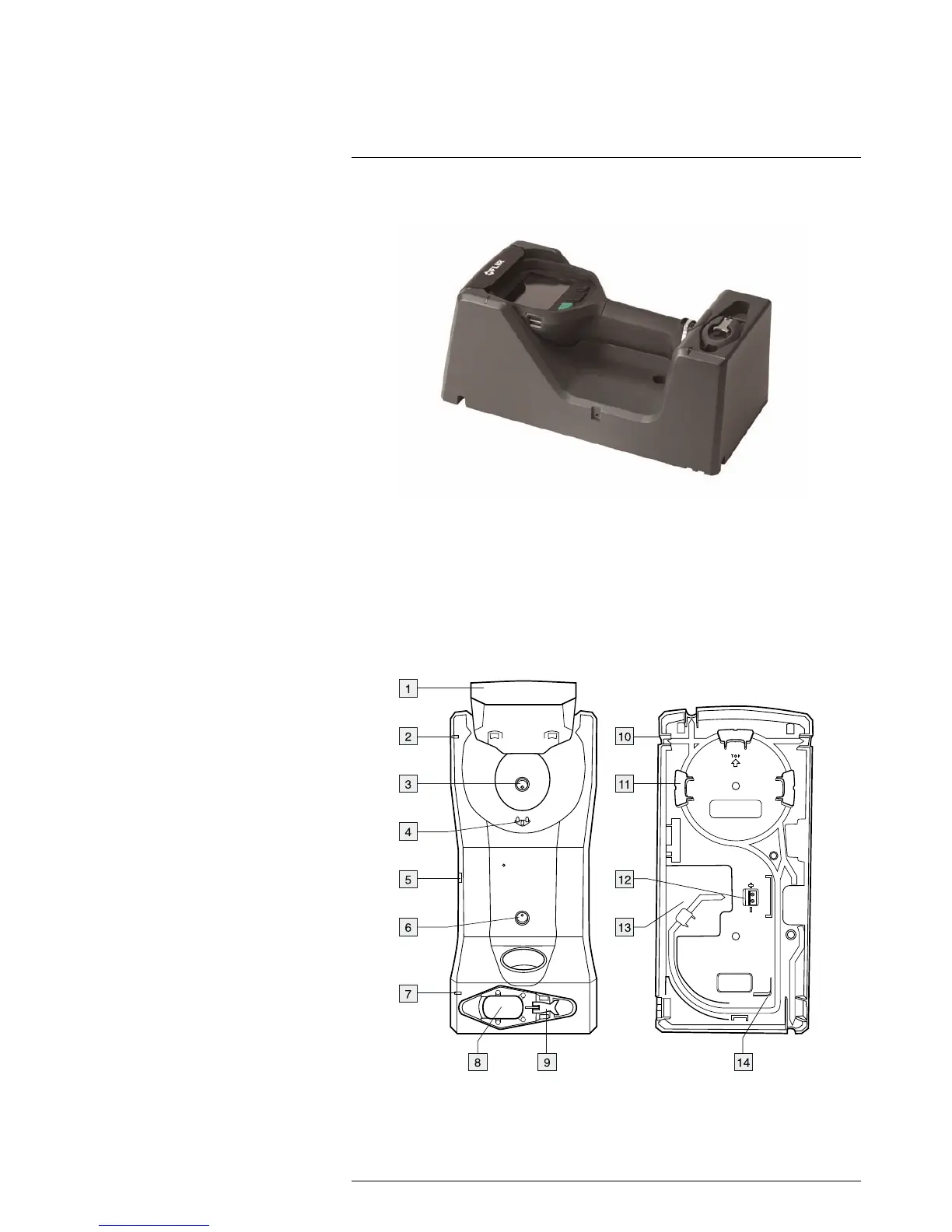

12.2 Parts and functions
1. Top cover.
2. LED indicator for the camera charger.
3. Hole for attaching the charger housing to the metal bracket.
#T559811; r. AE/ 9082/9150; en-US
23

FLIR K Series Specifications

General

Brand	FLIR
Model	K Series
Category	Thermal cameras
Language	English
