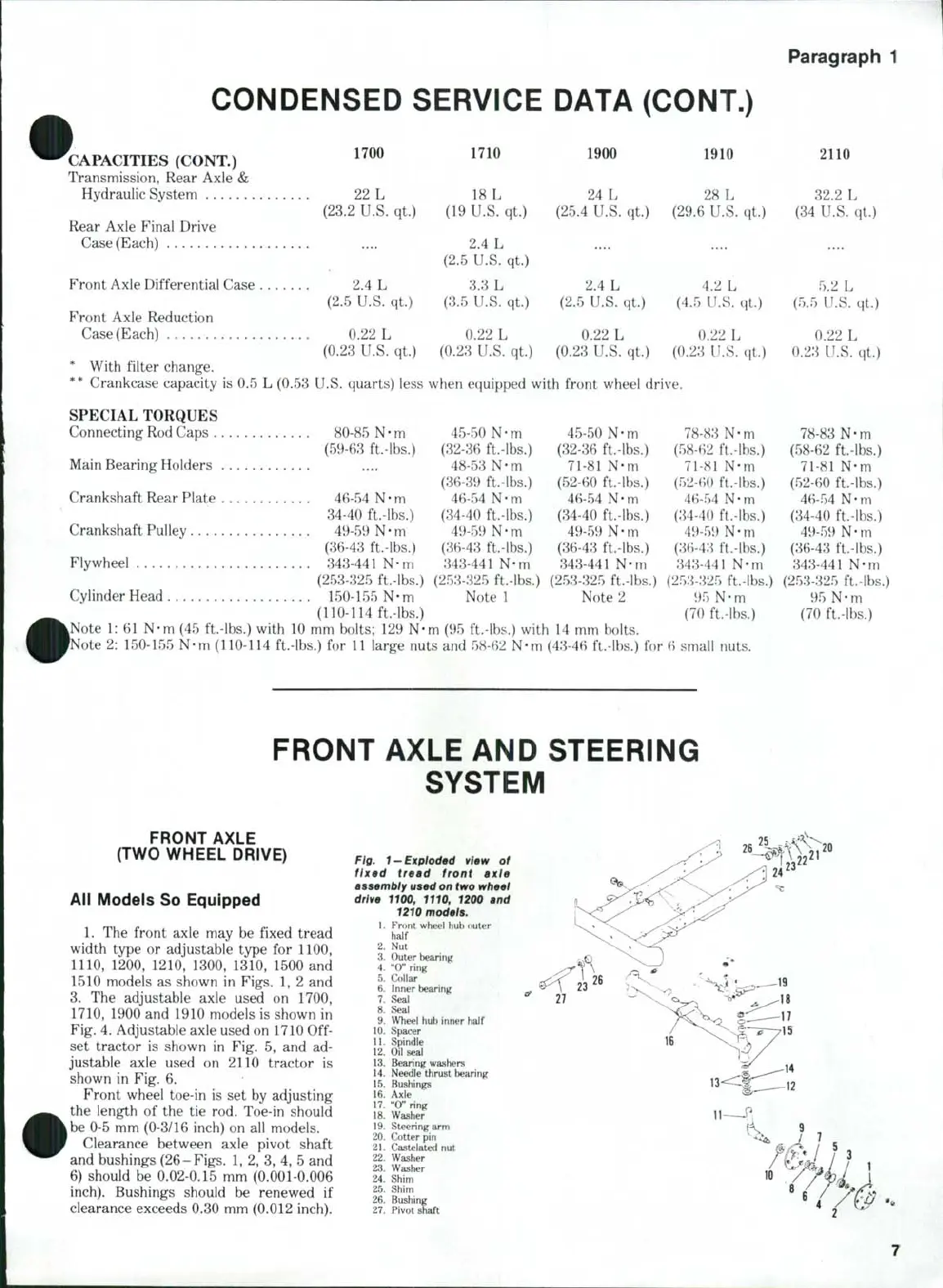

Paragraph
1
CONDENSED SERVICE DATA (CONT.)
'CAPACITIES (CONT.)
"0 0 ^™ ^^^ 191" 2110
Transmission, Rear Axle &
Hydraulic System 22
L
18
L 24 L 28 L
32.2
L
(23.2 U.S. qt.) (19 U.S. qt.) (25.4 U.S.
qt)
(29.6 U.S. qt.) (34 U.S.
qt.)
Rear Axle Final Drive
Case (Each)
.... 2.4 L
(2.5 U.S.
qt)
Front Axle Differential Case
2.4 L 3.3 L 2.4 L 4.2 L 5.2 L
(2.5 U.S.
qt)
(3.5 U.S. qt.) (2.5 U.S.
qt)
(4.5 U.S.
qt)
(5.5 U.S.
qt)
Front Axle Reduction
Case(Each)
0.22 L
0.22
L
0.22
L
0.22
L 0.22 L
(0.23 U.S.
qt)
(0.28 U.S. qt.) (0.23 U.S. qt.) (0.28 U.S.
qt)
0.28 U.S.
qt.)
* With filter change.
** Crankcase capacity
is
0.5
L
(0.53 U.S. quarts) less when equipped with front wheel drive.
SPECIAL TORQUES
Connecting Rod Caps 80-85
N • m
45-50
N • m
45-50
N - m
78-88
N - m
78-88
N - m
(59-68 ft.-lbs.) (82-36 ft.-lbs.) (32-86 ft.-lbs.) (58-62 ft.-lbs.) (58-62 ft.-lbs.)
Main Bearing Holders
....
48-58N-m 71-81
N-m
71-81
N-m
71-81
N-m
(86-39 ft.-lbs.) (52-60 ft.-lbs.) (52-60 ft-lbs.) (52-60 ft.-lbs.)
Crankshaft Rear Plate 46-54 N-m 46-54 N-m 46-54
N-m
46-54 N-m 46-54 N-m
84-40 ft-lbs.) (34-40 ft.-lbs.) (84-40 ft.-lbs.) (84-40 ft.-tbs.) (84-40 ft.-lbs.)
Crankshaft Pulley 49-59
N - m
49-59
N - m
49-59
N - m
49-59
N - m
49-59
N - m
(86-48 ft.-lbs.) (86-48 ft.-lbs.) (86-48 ft.-lbs.) (8(>48 ft-lbs.) (86-48 ft.-lbs.)
Flywheel 348-441
N-m
848-441
N-m
848-441
N-m
848-441
N-m
848-441
N-m
(258-325 ft.-lbs.) (258-825 ft.-lbs.) (258-825 ft-lbs.) (258-825 ft.-lbs.) (258-825 ft-lbs.;
Cylinder Head 150-155 N-m Note 1 Note
2 95
N-m
95
N-m
•
(110-114 ft.-lbs.)
(70
ft.-lbs.) (70 ft.-lbs.)
Note 1: 61 N-m (45 ft.-lbs.) with 10 mm bolts; 129 N-m (95 ft-lbs.) with 14 mm bolts.
Note 2: 150-155 N-m (110-114 ft.-lbs.)
for
11 large nuts and 58-62 N-m (48-46 ft.-lbs.)
for 6
small nuts.
FRONT AXLE AND STEERING
SYSTEM
FRONT AXLE
(TWO WHEEL DRIVE)
All Models
So
Equipped
1.
The
front axle may
be
fixed tread
width type
or
adjustable type
for
1100,
1110,
1200, 1210, 1300, 1810, 1500 and
1510 models
as
shown
in
Figs.
1, 2 and
3.
The
adjustable axle used
on 1700,
1710,
1900 and 1910 models
is
shown
in
Fig. 4. Adjustable axle used on 1710
Off-
set tractor
is
shown
in Fig. 5, and ad-
justable axle used
on 2110
tractor
is
shown
in
Fig.
6.
Front wheel toe-in
is set by
adjusting
the length
of
the
tie
rod. Toe-in should
be 0-5 mm (0-3/16 inch)
on all
models.
Clearance between axle pivot shaft
and bushings (26-Figs. 1,
2, 8, 4,
5 and
6) should
be
0.02-0.15 mm (0.001-0.006
inch).
Bushings should
be
renewed
if
clearance exceeds 0.30 mm (0.012 inch).
Fig. 1-exploded view of
ftxed tread front axle
assembly used on two wheel
drtve 1100, 1110, 1200 and
1210 models.
1.
Front wheel hub outer
half
2.
Nut
3.
Outer bearinjj
4.
"0" ring
5.
Collar
6. Inner bearing
7.
Seal
8. Seal
9. Wheel hub inner half
10.
Spacer
U. Spindle
12.
Oil seal
13.
Bearing washers
14.
Needle thrust bearing
15.
Bushings
16.
Axle
17.
"0"
ring
18.
Washer
19.
Steering arm
20.
Cotter pin
21.
Castelated
nut
22.
Washer
23.
Washer
24.
Shim
25.
Shim
26.
Bushing
27.
Pivot shaft
