If the battery has been disconnected and reconnected, refer to the
Battery section of the Maintenance and Specifications chapter.

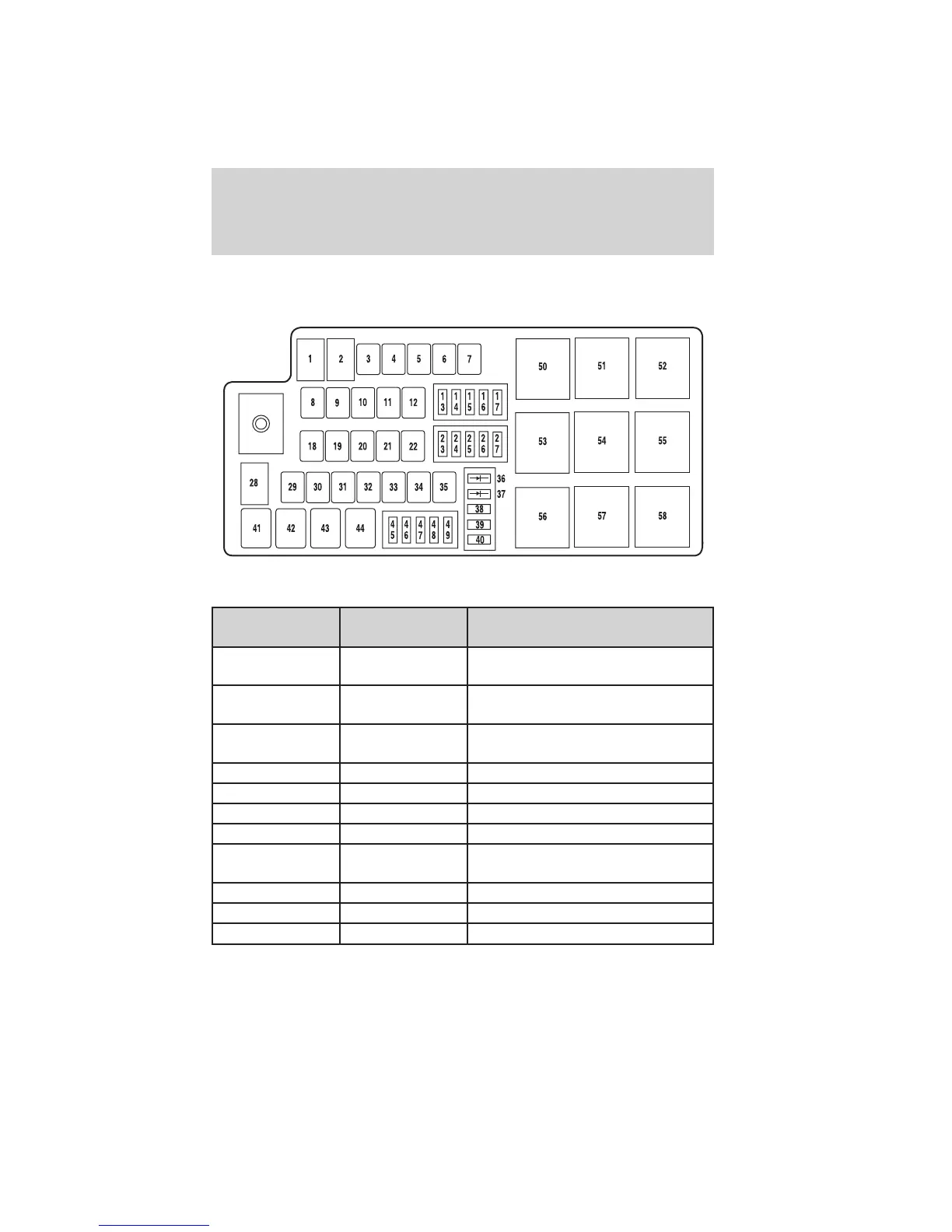

The high-current fuses are coded as follows.
Fuse/Relay
Location
Fuse Amp
Rating
Protected Circuits
1 50A* Electronic power assist steering
B+
2 50A* Electronic power assist steering
B+
3 40A* Powertrain control module (PCM)
(relay 57 power)
4 — Not used
5 30A* Starter motor (relay 55 power)
6 40A* Rear defrost (relay 53 power)
7 — Not used
8 40A* Anti-lock brake system (ABS)
pump
9 20A* Wiper washer
10 30A* ABS valve
11 — Not used
Roadside Emergencies
247
2010 Fusion (fsn)
Owners Guide, 2nd Printing
USA (fus)
