Ford 2010 Fusion User Manual
5
of 1
of 1 rating
344 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...

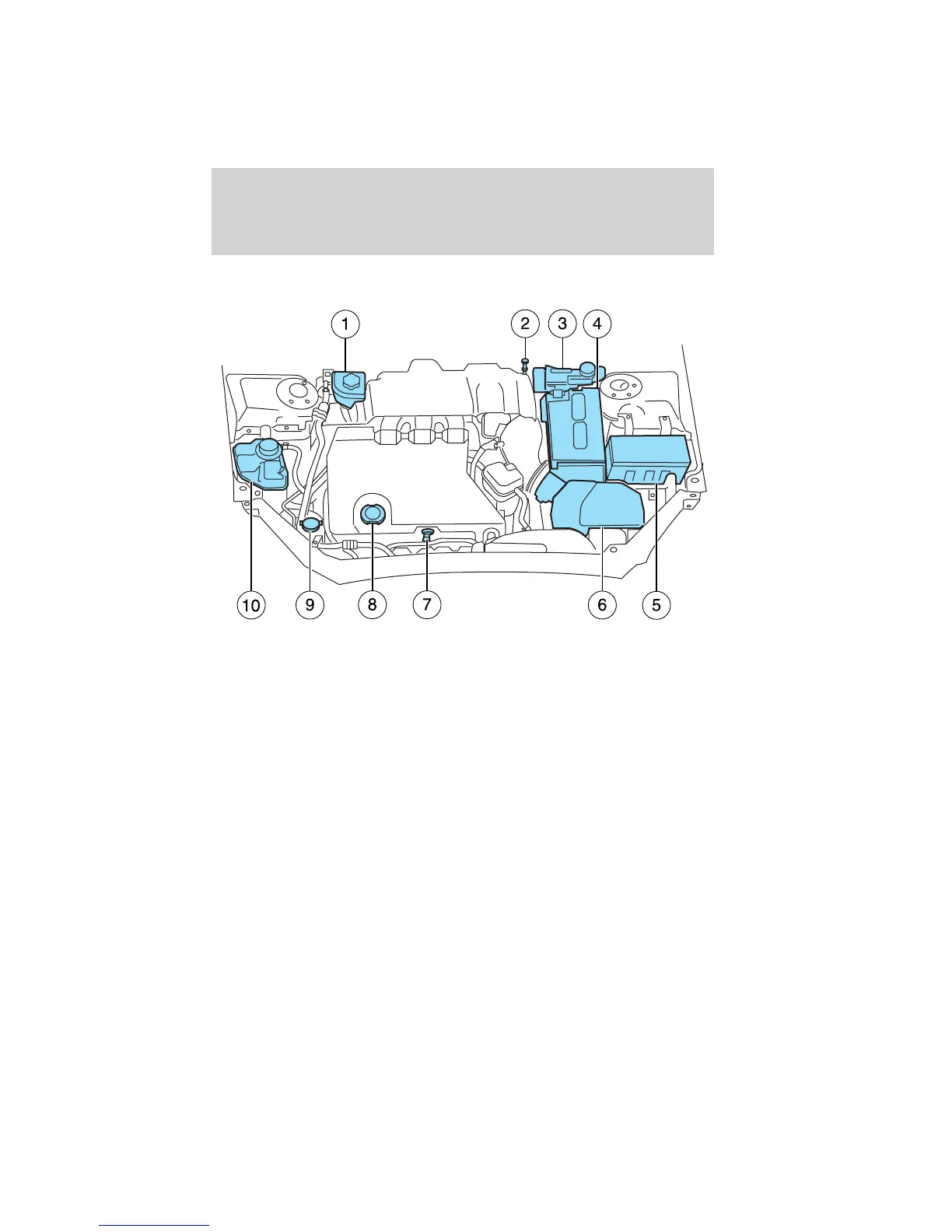

3.5L
V6
engine
1.
Power
steering
fluid
reservoir
2.
T
ransmission
fluid
dipstick
3.
Brake
fluid
reservoir
4.
Battery
5.
Power
distribution
box
6.
Air
filter
assembly
7.
Engine
oil
dipstick
8.
Engine
oil
filler
cap
9.
W
indshield
washer
fluid
reservoir
10.
Engine
coolant
reservoir
Maintenance
and
Specifications
283
2010
Fusion
(fsn)
Owners
Guide,
2nd
Printing
USA
(fus)
282
284
Table of Contents
Default Chapter
1
Table of Contents
1
Introduction
4
Safety and Environment Protection
4
Breaking-In Your Vehicle
5
California Proposition 65 Warning
5
Perchlorate Material
5
Protecting the Environment
5
Data Recording
6
Service Data Recording
6
Event Data Recording
7
Cell Phone Use
8
Export Unique (Non–United States/Canada) Vehicle Specific Information
9
Vehicle Symbol Glossary
10
Instrument Cluster
12
Warning Lights and Chimes
12
Service Engine Soon
12
Brake System Warning Light
13
Anti-Lock Brake System
13
Airbag Readiness
14
Safety Belt
14
Charging System
14
Engine Oil Pressure
14
Overdrive Cancel and Grade Assist
15
Low Tire Pressure Warning
15
Speed Control
15
Door Ajar
15
Throttle Control/Transmission
16
Turn Signal
16
High Beams
16
Key-In-Ignition Warning Chime
16
Gauges
17
Speedometer
17
Engine Coolant Temperature Gauge
17
Fuel Gauge
18
Tachometer
18
Odometer
18
Trip Odometer
18
Message Center
19
Selectable Features
19
Reset
19
Info Menu
19
Odometer/Trip Odometer
20
Distance to Empty (DTE)
20
Average Fuel Economy (AFE)
20
Instantaneous Fuel Economy (IFE)
21
Trip Elapsed Drive Time
21
Setup Menu
22
System Check
22
Oil Life
22
Units (English/Metric)
23
Autolamp Delay (if Equipped)
23
Autolock
24
Autounlock
24
Blind Spot System (if Equipped)
24
Cross Traffic Alert System (if Equipped)
24
Language
25
System Warnings
25
Am/Fm/Single CD or In-Dash Cd6/Mp3 Satellite Compatible Sound System
29
Audio Systems
29
Entertainment Systems
29
Setting the Clock
29
AM/FM Radio
30
RDS (Radio Data System) Radio
30
CAT/FOLD (Category/Folder)
31
CD/MP3 Player
31
Satellite Radio (if Equipped)
33
Extra Features
36
Sound Adjustments
36
Auxiliary Input Jack (Line In)
37
Required Equipment
37
To Play Your Portable Music Player Using the Auxiliary Input Jack
37
USB Port (if Equipped)
38
CD/CD Player Care
39
General Audio Information
39
Radio Frequencies
39
Radio Reception Factors
39
Audio System Warranty and Service
41
MP3 Track and Folder Structure
41
Sample MP3 Structure
42
Satellite Radio Channels
42
Satellite Radio Information (if Equipped)
42
Satellite Radio Reception Factors
42
Satellite Radio Electronic Serial Number (ESN)
43
SIRIUS Satellite Radio Service
43
Navigation System (if Equipped)
45
Sync (if Equipped)
45
Manual Heating and Air Conditioning System
46
Climate Controls
46
Dual Automatic Temperature Control (if Equipped)
48
For Maximum Cooling Performance in Max A/C Mode
48
To Aid in Side Window Defogging/Demisting in Cold Weather
48
Dual Zone Automatic Temperature Control
51
Navigation System Based Climate Control
51
Rear Defroster
51
Temperature Conversion
51
Max A/C
53
Temperature
53
Touchscreen Functions
53
Voice Commands in Climate Mode
53
Rear Window Defroster
55
Autolamp Control (if Equipped)
56
Autolamps - Programmable Exit Delay
56
Headlamp Control
56
Lights
56
Daytime Running Lamps (DRL) (if Equipped)
57
Fog Lamp Control (if Equipped)
57
Flash to Pass
58
Panel Dimmer Control
58
Aiming the Headlamps
59
Vertical Aim Adjustment
59
Dome Lamps and Map Lamps
60
Interior Lamps
60
Turn Signal Control
60
Ambient Lighting (if Equipped)
61
Bulb Replacement
61
Lamp Assembly Condensation
61
Using the Right Bulbs
62
High Beam/Low Beam Bulb Replacement
63
Replacing Exterior Bulbs
63
Replacing Headlamp Bulbs (2.5L/3.0L Engines)
63
Replacing Interior Bulbs
63
Low Beam
64
Low Beam Bulb Replacement
65
Replacing Headlamp Bulbs (3.5L Engine)
67
Replacing Front Parking Lamp/Turn Signal Bulbs (2.5L/3.0L Engines)
68
Replacing Front Parking Lamp/Turn Signal Bulb (3.5L Engine)
69
Replacing Front Side Marker Bulbs
70
Replacing Rear Side Marker Lamp
71
Replacing Tail/Brake/Turn Signal/Backup Lamp Bulbs
71
Replacing High-Mount Brake Lamp Bulb
72
Replacing License Plate Lamp Bulbs
72
Replacing Fog Lamp Bulbs
73
Driver Controls
74
Multi-Function Lever
74
Speed Dependent Wipers
74
Windshield Wiper/Washer Control
74
Illuminated Visor Mirror (if Equipped)
75
Slide on Rod Feature
75
Steering Wheel Adjustment
75
Tilt/Telescope Steering Wheel
75
Electronic Compass (if Equipped)
76
Overhead Console (if Equipped)
76
Storage Compartment
76
Compass Calibration Adjustment
77
Compass Zone Adjustment
77
Center Console
78
Auxiliary Power Point (12Vdc)
79
Instrument Panel Storage Compartment
79
One-Touch up or down (Driver’s Window Only)
80
Power Windows
80
Rear Window Buffeting
80
Accessory Delay
81
Bounce-Back
81
Security Override
81
Window Lock
81
Automatic Dimming Interior Rear View Mirror (if Equipped)
82
Interior Mirror
82
Exterior Mirrors
83
Heated Mirrors (if Equipped)
83
Power Side View Mirrors
83
Speed Control
83
Disengaging Speed Control
84
Setting Speed Control
84
Using Speed Controls
84
Increasing Speed While Using Speed Control
85
Reducing Speed While Using Speed Control
85
Resuming a Set Speed
85
Turning off Speed Control
85
Navigation System Hands Free Control Features (if Equipped)
86
Radio Control Features
86
Steering Wheel Controls (if Equipped)
86
Sync System Hands Free Control Feature (if Equipped)
86
Moon Roof (if Equipped)
87
Navigation System/Sync Hands Free Control Features
87
To Open the Moon Roof
87
Bounce-Back Override
88
To Close the Moon Roof
88
To Vent
88
Interior Trunk Control
89
Locks and Security
90
Keys
90
Power Door Locks
91
Smart Locks
91
Autolock Feature
91
Deactivating/Activating Autolock Feature
92
Keyless Entry Keypad Procedure
92
Autounlock Feature
93
Deactivating/Activating Autounlock Feature
93
Childproof Door Locks
95
Interior Luggage Compartment Release
95
Remote Entry System
97
Unlocking the Doors/Two Stage Unlock
97
Locking the Doors
98
Car Finder
98
Sounding a Panic Alarm
98
Opening the Trunk
98
Replacing the Battery
99
Replacing Lost Integrated Keyhead Transmitters (Ikts)
99
How to Reprogram Your Integrated Keyhead Transmitters (Ikts)
99
Illuminated Entry
99
Perimeter Lamps Illuminated Entry
100
Deactivating/Activating Perimeter Lamps Illuminated Entry
100
Illuminated Exit
101
Battery Saver
101
Securicode Keyless Entry System (if Equipped)
102
Programming a Personal Entry Code
102
Erasing Personal Code
102
Anti-Scan Feature
102
Unlocking and Locking the Doors Using Keyless Entry
103
Securilock Passive Anti-Theft System
103
Anti-Theft Indicator
104
Automatic Arming
104
Automatic Disarming
104
Replacement Integrated Keyhead Transmitters (IKT) and Coded Keys
105
Programming Spare Keys
105
Perimeter Alarm System
107
Arming the System
107
Disarming the System
108
Triggering the Anti-Theft System
108
Adjustable Head Restraints
109
Seating and Safety Restraints
109
Adjusting the Front Manual Seat (if Equipped)
112
Using the Manual Lumbar Support (if Equipped)
112
Folding down the Front Passenger Seatback (if Equipped)
113
Adjusting the Front Power Seat (if Equipped)
114
Power Recline (if Equipped)
115
DATC Systems
116
Heated Seats (if Equipped)
116
Navigation Based Systems
116
Rear Seats
117
Second-Row Adjustable Head Restraints
117
Split-Folding Rear Seatbacks
120
Personal Safety System
122
Safety Restraints
122
Seat-Mounted Cup Holders and Armrest Storage Compartment
122
Driver and Passenger Dual-Stage Airbag Supplemental Restraints
123
Driver’s Seat Position Sensor
123
Front Crash Severity Sensor
123
How Does the Personal Safety System Work?
123
Front Passenger Sensing System
124
Front Safety Belt Usage Sensors
124
Determining if the Personal Safety System Is Operational
125
Front Safety Belt Energy Management Retractors
125
Front Safety Belt Pretensioners
125
Safety Belt Precautions
126
Combination Lap and Shoulder Belts
127
Energy Management Feature — Front Outboard
127
Automatic Locking Mode
128
How to Use the Automatic Locking Mode
128
Vehicle Sensitive Mode
128
When to Use the Automatic Locking Mode
128
How to Disengage the Automatic Locking Mode
129
Safety Belt Height Adjustment
129
Safety Belt Extension Assembly
130
Safety Belt Pretensioner
130
Safety Belt Warning Light and Indicator Chime
130
Belt-Minder
131
Conditions of Operation
131
Deactivating/Activating the Belt-Minder Feature
134
One-Time Disable
134
Airbag Supplemental Restraint System (Srs)
136
Important Supplemental Restraint System Precautions
136
Children and Airbags
138
How Does the Safety Belt Pretensioner and Airbag Supplemental Restraint System Work?
138
Determining if the System Is Operational
144
If the Airbag Readiness Light Is Lit
144
Seat-Mounted Side Airbag System
145
How Does the Side Airbag System Work?
146
Side-Curtain Airbag System
147
How Does the Side Air Curtain System Work?
149
Disposal of Airbags and Airbag Equipped Vehicles
151
Safety Restraints for Children
151
Sos Post-Crash Alert System
151
Important Child Restraint Precautions
152
Recommendations for Safety Restraints for Children
153
Recommendations for Attaching Child Safety Restraints for Children
154
Transporting Children
155
Infant And/Or Toddler Seats
156
Safety Seats for Children
156
Installing Child Safety Seats with Combination Lap and Shoulder Belts
157
Attaching Child Safety Seats with LATCH (Lower Anchors and Tethers for Children) Attachments
162
Combining Safety Belt and LATCH Lower Anchors for Attaching Child Safety Seats
164
Use of Inboard Lower Anchors from the Outboard Seating Positions (Center Seating Use)
164
Attaching Child Safety Seats with Tether Straps
165
Child Booster Seats
166
When Children Should Use Booster Seats
167
Types of Booster Seats
168
The Importance of Shoulder Belts
169
Child Restraint and Safety Belt Maintenance
170
Information about Uniform Tire Quality Grading
171
Traction AA a B C
171
Treadwear
171
U.S. Department of Transportation-Tire Quality Grades
171
Tires, Wheels and Loading
171
Glossary of Tire Terminology
172
Temperature a B C
172
Inflating Your Tires
173
Tire Inflation
173
Maximum Permissible Inflation Pressure Is the Tire Manufacturer’s
174
Inspecting Your Tires and Wheel Valve Stems
175
Tire Care
175
Damage
176
Tire Wear
176
Tire Replacement Requirements
177
U.S. DOT Tire Identification Number (TIN)
177
Safety Practices
178
Highway Hazards
179
Tire and Wheel Alignment
179
Tire Rotation
179
Front Wheel Drive (Fwd)
180
Information Contained on the Tire Sidewall
180
Information on “P” Type Tires
181
Additional Information Contained on the Tire Sidewall for “LT” Type Tires
184
Information on “T” Type Tires
185
Location of the Tire Label
185
Tire Pressure Monitoring System (Tpms)
186
Changing Tires with TPMS
187
Understanding Your Tire Pressure Monitoring System (TPMS)
188
When Your Temporary Spare Tire Is Installed
188
When You Believe Your System Is Not Operating Properly
189
How Temperature Affects Your Tire Pressure
190
When Inflating Your Tires
190
Snow Tires and Chains
191
Base Curb Weight
192
Payload
192
Vehicle Curb Weight
192
Vehicle Loading
192
Cargo Weight
193
GAW (Gross Axle Weight)
193
GAWR (Gross Axle Weight Rating)
194
GVW (Gross Vehicle Weight)
194
GVWR (Gross Vehicle Weight Rating)
194
Steps for Determining the Correct Load Limit
196
Recreational Towing
197
Trailer Towing
197
All Wheel Drive (AWD) 3.0L Vehicles
198
Front Wheel Drive (FWD) 2.5L and 3.0L Vehicles
198
All Wheel Drive (AWD) 3.5L Vehicles
199
Front Wheel Drive (FWD) 3.5L Vehicles
199
Driving
200
Starting
200
Positions of the Ignition
200
Starting Your Vehicle
200
Important Safety Precautions
201
Starting the Engine
203
Guarding against Exhaust Fumes
203
Important Ventilating Information
203
Engine Block Heater (if Equipped)
204
Brakes
205
How to Use the Engine Block Heater
205
Four-Wheel Anti-Lock Brake System (ABS)
206
ABS Warning Lamp
206
Using ABS
206
Parking Brake
207
Advancetrac Stability Enhancement System
207
Traction Control System (TCS)
209
Electronic Stability Control (ESC)
210
Switching off Advancetrac
210
Steering
211
3.5L V6 Duratec Engine
212
Speed Sensitive Steering
213
Brake-Shift Interlock
213
Automatic Transmission Operation
214
Understanding Your Selectshift Automatic Transmission (SST) Gearshift Lever
218
If Your Vehicle Gets Stuck in Mud or Snow
219
Manual Transmission Operation (if Equipped)
220
Using the Clutch
220
Recommended Shift Speeds
221
Reverse
221
Parking Your Vehicle
221
Reverse Sensing System (if Equipped)
222
Removing the Key
222
Rearview Camera System (if Equipped)
224
Image Delay if Displayed through the Rear View Mirror
224
Image Delay if Displayed through the Navigation Screen
224
Night Time and Dark Area Use
225
Servicing
225
Blind Spot Information System (Blis ) with Cross Traffic Alert (Cta) (if Equipped)
226
BLIS Detection Limitations
227
BLIS False Alerts
227
Cross Traffic Alert (CTA) System Operation
228
CTA Detection Limitations
229
CTA False Alerts
229
CTA and Reverse Sensing System (RSS) Interaction
230
BLIS -CTA On/Off and Disable Operation
230
BLIS -CTA Fault Operation
230
Blocked Sensor
230
Trailer Tow False Alerts
231
Day and Night Brightness
232
All Wheel Drive (Awd) System (if Equipped)
232
Driving on Slippery Surfaces with Awd Vehicles
232
Basic Operating Principles
233
If Your Vehicle Goes off the Edge of the Pavement
233
If Your Vehicle Gets Stuck
233
Emergency Maneuvers
234
AWD Systems (if Equipped)
234
Sand
234
Mud and Water
235
Driving on Hilly or Sloping Terrain
236
Driving on Snow and Ice
236
Maintenance and Modifications
237
Driving through Water
238
Roadside Emergencies
239
Getting Roadside Assistance
239
Using Roadside Assistance
240
Hazard Flasher Switch
241
Fuel Pump Shut-Off Switch
241
Fuel Pump Shut-Off (2.5L and 3.0L Engines)
242
Fuses and Relays
242
Passenger Compartment Fuse Panel
243
Standard Fuse Amperage Rating and Color
243
Fuses Codes
244
Power Distribution Box
246
High-Current Fuses
247
Changing the Tires
249
Dissimilar Spare Tire/Wheel Information
250
Stopping and Securing the Vehicle
252
Removing the Spare Tire and Jack
252
Tire Change Procedure
253
Stowing the Wheel and Jack
255
Wheel Lug Nut Torque Specifications
255
Running out of Fuel
256
Jump Starting
257
Preparing Your Vehicle
257
Connecting the Jumper Cables
258
Removing the Jumper Cables
260
Wrecker Towing
262
Emergency Towing
263
Customer Assistance
264
Customer Assistance
270
Reporting Safety Defects (U.S. Only)
270
Reporting Safety Defects (Canada Only)
270
Cleaning
271
Exterior Chrome
271
Washing the Exterior
271
Aluminum Wheels and Wheel Covers
272
Paint Chips
272
Waxing
272
2.5L Engine
273
Engine
273
3.0L Engine
274
3.5L Engine
274
Plastic (Non-Painted) Exterior Parts
274
Instrument Panel/Interior Trim and Cluster Lens
275
Windows and Wiper Blades
275
Interior
276
Leather Seats (if Equipped)
277
Underbody
277
Ford and Lincoln Mercury Car Care Products
278
Maintenance and Specifications
279
Precautions When Servicing Your Vehicle
279
Service Recommendations
279
Working with the Engine off
279
Opening the Hood
280
Working with the Engine on
280
2.5L I4 Engine
281
Identifying Components in the Engine Compartment
281
3.0L V6 Engine
282
3.5L V6 Engine
283
Changing the Wiper Blades
284
Windshield Washer Fluid
284
Checking the Engine Oil
285
Adding Engine Oil
289
Engine Oil and Filter Recommendations
290
Use SAE 5W-20 Engine Oil
290
Battery
291
Checking Engine Coolant
293
Adding Engine Coolant
294
Coolant Refill Capacity
297
Recycled Engine Coolant
297
Severe Climates
297
How Fail-Safe Cooling Works
298
What You Should Know about Fail-Safe Cooling (2.5L I4 and 3.5L V6 Engines Only)
298
Fuel Filter
299
Fuel Information
299
What You Should Know about Automotive Fuels
299
When Fail-Safe Mode Is Activated
299
Easy Fuel “No Cap” Fuel System
302
Refueling
302
Flex Fuel Vehicle (FFV) Fuel Fill Inlet
303
Choosing the Right Fuel
304
FFV Engine (if Equipped)
304
Octane Recommendations
304
Cleaner Air
305
Fuel Quality
305
Refilling with a Portable Fuel Container
306
Essentials of Good Fuel Economy
307
Filling the Tank
307
Measuring Techniques
307
Calculating Fuel Economy
308
Driving Style — Good Driving and Fuel Economy Habits
309
Habits
309
Maintenance
309
Conditions
310
Emission Control System
310
Epa Fuel Economy Estimates
310
On Board Diagnostics (OBD-II)
311
Readiness for Inspection/Maintenance (I/M) Testing
312
Power Steering Fluid
313
Brake/Clutch Fluid
314
Checking 6–Speed Automatic Transmission Fluid (Aws21)
314
Transmission Fluid
314
Checking Automatic Transmission Fluid at Cool Temperature
315
Checking Automatic Transmission Fluid at Normal Operating Temperature (140°F-158°F [60°C-70°C])
315
Adjusting Automatic Transmission Fluid Levels
316
High Fluid Level
316
Low Fluid Level
316
Checking Automatic Transmission Fluid (6F35) (if Equipped)
317
Correct Fluid Level
318
Checking Transmission Fluid Level for Recreational Flat Tow Operation
320
Air Filter
321
Checking and Adding Manual Transmission Fluid (if Equipped)
321
Changing the Air Filter Element
322
Motorcraft Part Numbers
324
Maintenance Product Specifications and Capacities
325
Engine Data
329
Engine Drivebelt Routing
329
Identifying Your Vehicle
330
Safety Compliance Certification Label
330
Vehicle Identification Number (VIN)
331
Transmission Code Designations
332
Accessories
333
Ford Extended Service Plan
335
Index
338
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Ford 2010 Fusion and is the answer not in the manual?
Ask a question
Ford 2010 Fusion Specifications
General
Brand
Ford
Model
2010 Fusion
Category
Automobile
Language
English
Related product manuals
Ford 2010 Fusion Hybrid
326 pages
Ford Fusion Hybrid 2010
329 pages
Ford 2010 Flex
397 pages
Ford 2010 F-150
414 pages
Ford 2010 F-250
407 pages
Ford 2010 Focus
275 pages
Ford 2010 F-350
408 pages
Ford F-150 2010
419 pages
Ford Fiesta 2010
222 pages
Ford Falcon (FG) 2010
264 pages
Ford 2010 Edge
324 pages
Ford 2010 Ranger
286 pages
To Next PageTo Next PageTo Previous PageTo Previous Page
Loading...
Need help?
General
