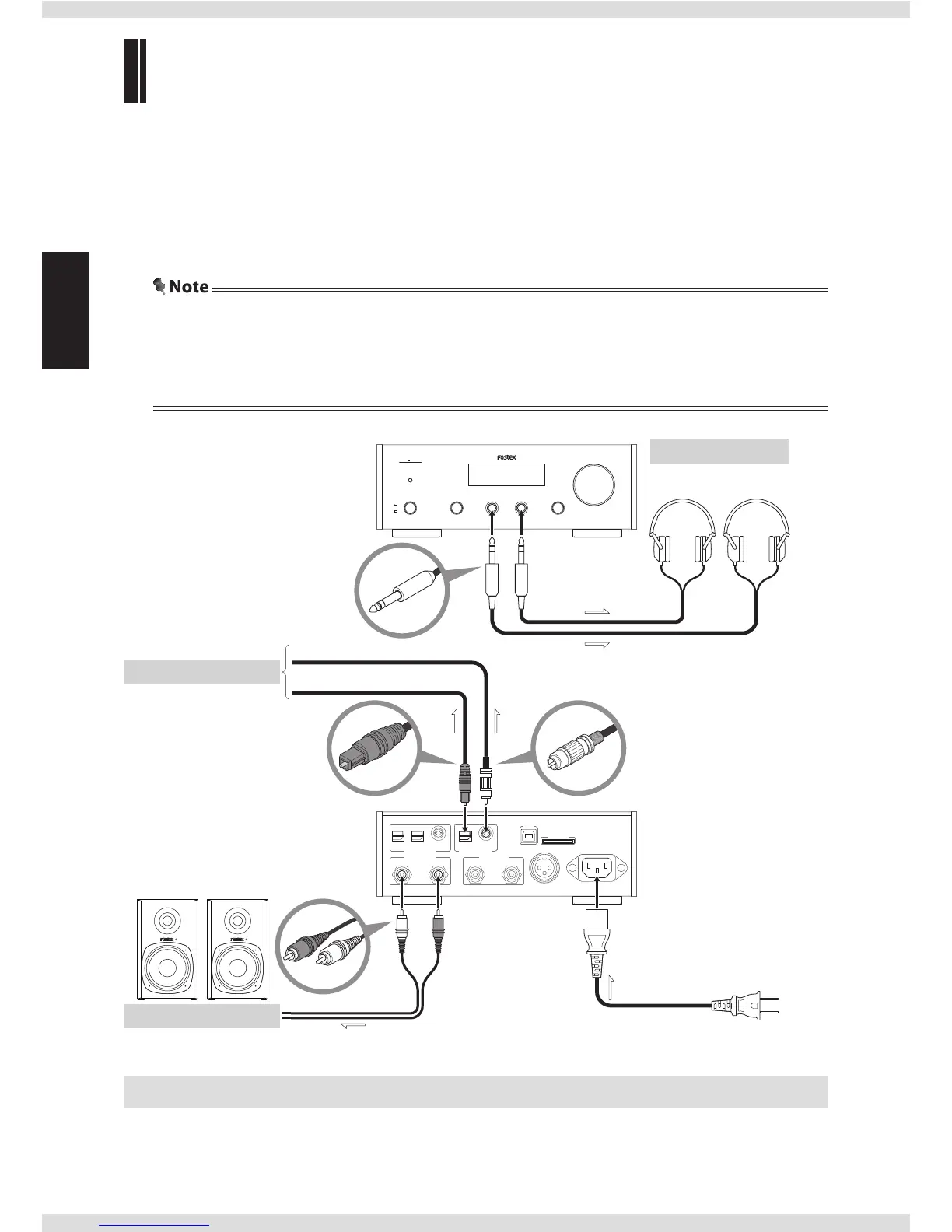

Connection
Connecting output devices
Connect headphones to the headphone terminals [phones] (1/2) on the front panel, or
connect an amplier or active speaker to the analog output terminal [ANALOG OUT] to
enjoy music.
To change the output, use the output sel switch on the left side of the front panel.
You can obtain S/PDIF format signals through the square optical terminal [OPTICAL] or
coaxial terminal [COAXIAL] when connecting a digital audio device.
• Do not connect the power cord until all connections are nished.
• The signal is always output from the [DIGITAL OUT] terminal regardless of the "OUTPUT SEL" setting
(page 11, 13). Digital signal does not output when the input source is set to [ANALOG IN] ("RCA") or a DSD
signal is input.
IN
AC IN
SD CARD
AES/EBU
USB
RIGHT LEFTRIGHTLEFT
ANALOG OUT ANALOG IN
1 2
OPTICAL COAXIAL COAXIALOPTICAL
DIGITAL IN DIGITAL OUT
volume
input sel1 2phonesoutput selpower
on
off
HPA8
32BIT DAC
HEADPHONE AMPLIFIER
Fostex
PM0.5d, etc. (sold separately)
To a digital audio device
RCA cable
Headphones
To an analog amplier, etc.
To an AC outlet
Optical cable
Coaxial cable
Front panel
Fostex
TH900, etc. (sold separately)
Rear panel
 Connecting the power cord
Connect the power cord after all connections are nished.
