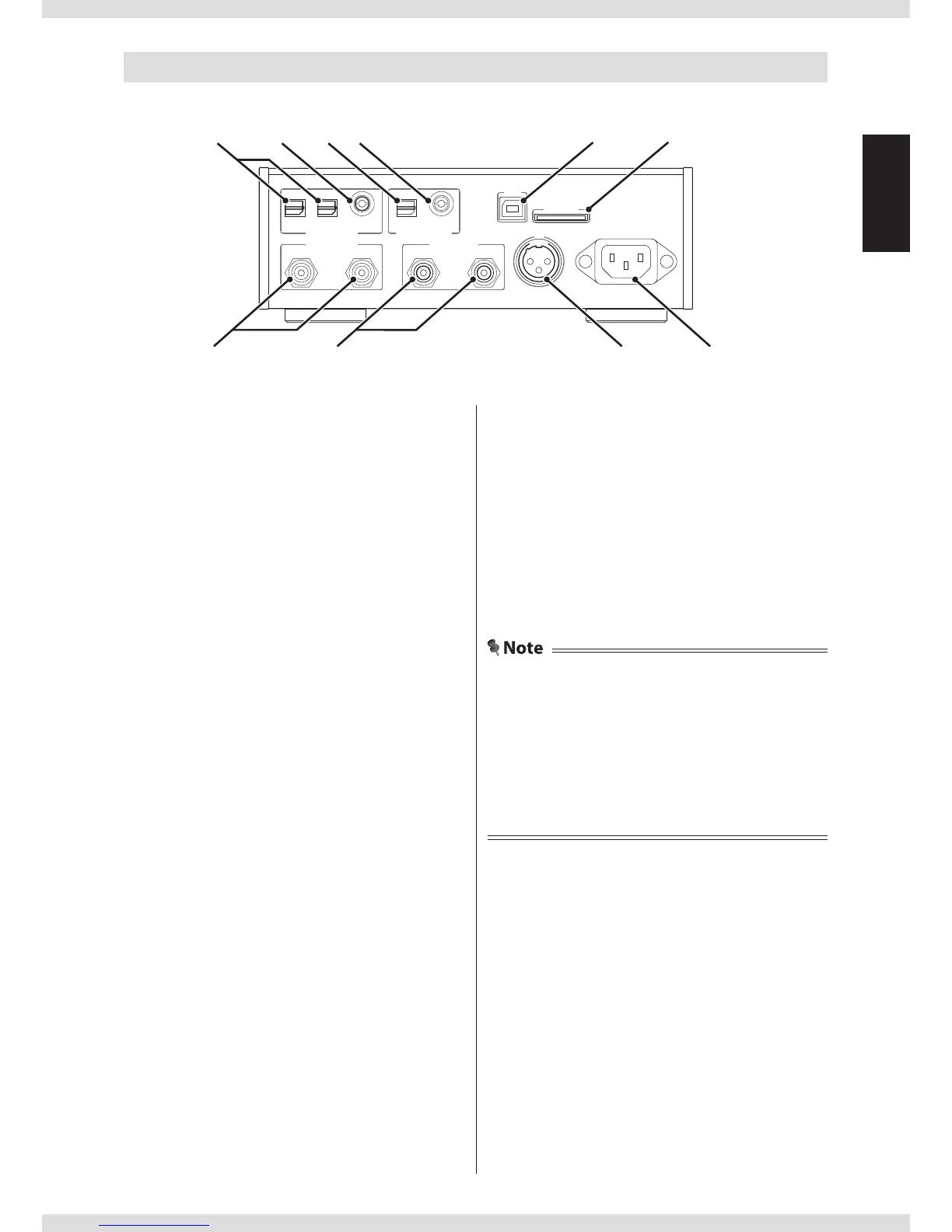

Rear panel
[DIGITAL IN - OPTICAL] terminals (1/2)
Connect a digital audio device as an input
source using a square optical cable. Up to
2 devices can be connected at the same
time.
[DIGITAL IN - COAXIAL] terminal
Connect a digital audio device as an input
source using a coaxial cable.
[DIGITAL OUT - OPTICAL] terminal
Outputs a digital audio signal to the
connected digital audio device via a square
optical cable.
[DIGITAL OUT - COAXIAL] terminal
Outputs a digital audio signal to the
connected digital audio device via a coaxial
cable.
[USB] terminal
Connect a computer (Win/Mac) as an input
source using a USB cable.
[SD CARD] slot
Insert an SD (SDHC) card including WAV
les, AIFF les or DSF les with the label
side facing upward.
[ANALOG OUT] terminals (RIGHT/LEFT)
Connect a device such as an amplier
using an RCA pin cable.
[ANALOG IN] terminals (RIGHT/LEFT)
Connect an analog audio device as an
input source using an RCA pin cable.
[AES/EBU] terminal (IN)
Connect a digital audio device as an input
source using an AES/EBU cable.
[AC IN] terminal
Connect the supplied power cable.
• S/PDIF format is used for digital audio input/
output.
• The signal is always output from the [DIGITAL OUT]
terminal regardless of the "OUTPUT SEL" setting
(page 11, 13). Digital signal does not output when
the input source is set to [ANALOG IN] ("RCA") or a
DSD signal is input.
