Chapter 1—Overview
38 2008K Hemodialysis Machine Operator’s Manual Rev P
Table 8 – Dialysate Section Features
FEATURE PURPOSE
Red acid and blue
bicarbonate
connectors
The concentrate connectors draw in acid and bicarbonate
concentrates. The concentrate connectors pull out and connect to
jugs of acid and bicarbonate concentrates or a concentrate central
feed. When connecting, make certain to correctly match red to acid
and blue to bicarbonate concentrates.
Concentrate Jug
Connector Cap
The connector cap snaps onto the top of concentrate jugs. The Acid
and Bicarbonate connectors connect to the cap so the machine can
pull concentrate from the jugs.
Fluid Sample Port The Fluid Sample Port allows testing of the UF pump.
The Shunt Interlock
The shunt interlock is located on the right side of the 2008K hemodialysis machine. It links
the dialysate lines when they are connected to it.
Shunt Door Dialyzer
Quick-Connectors
Shunt Interlock Dialysate Supply Line
Flow Indicator

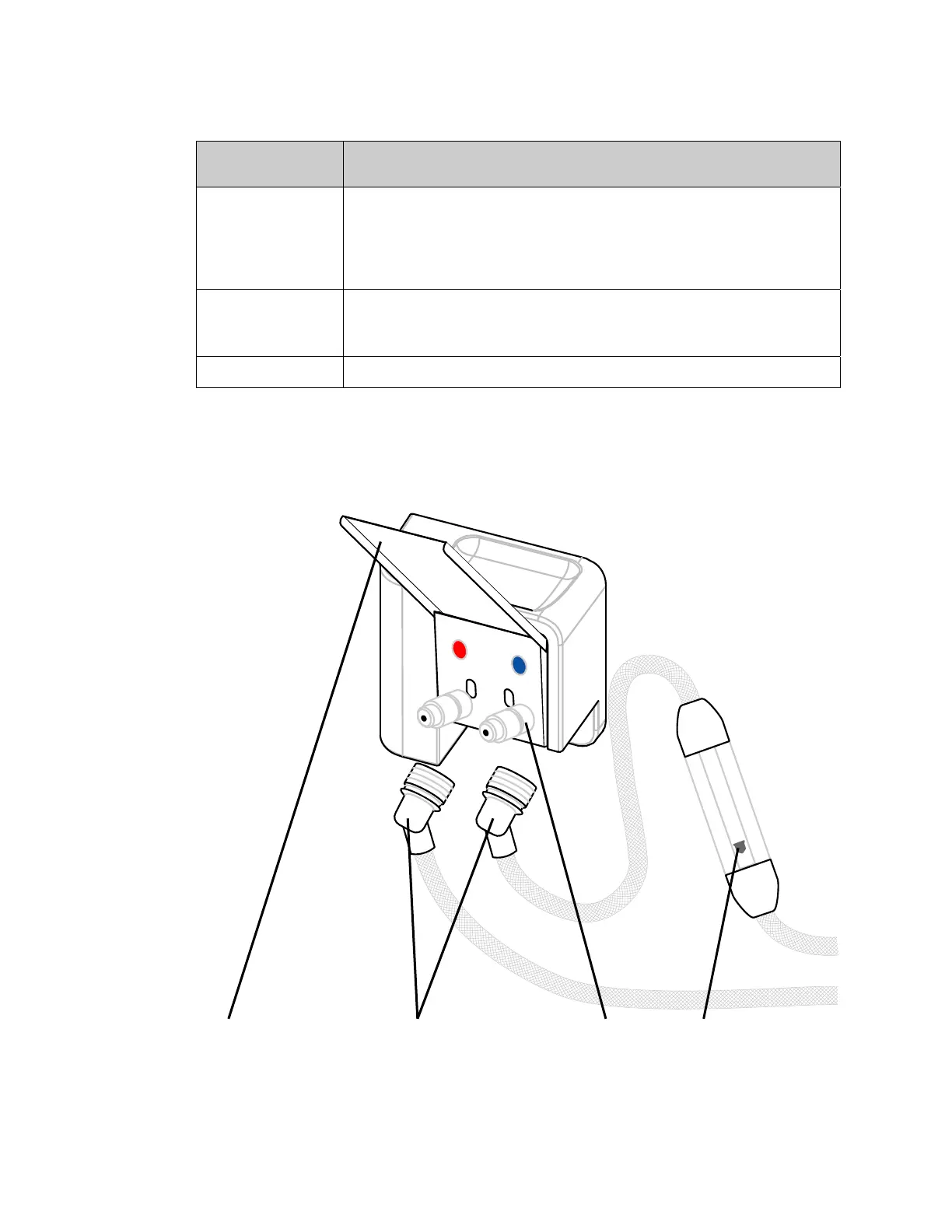

Figure 14 – Shunt Interlock, Flow Indicator & Dialyzer Connectors
