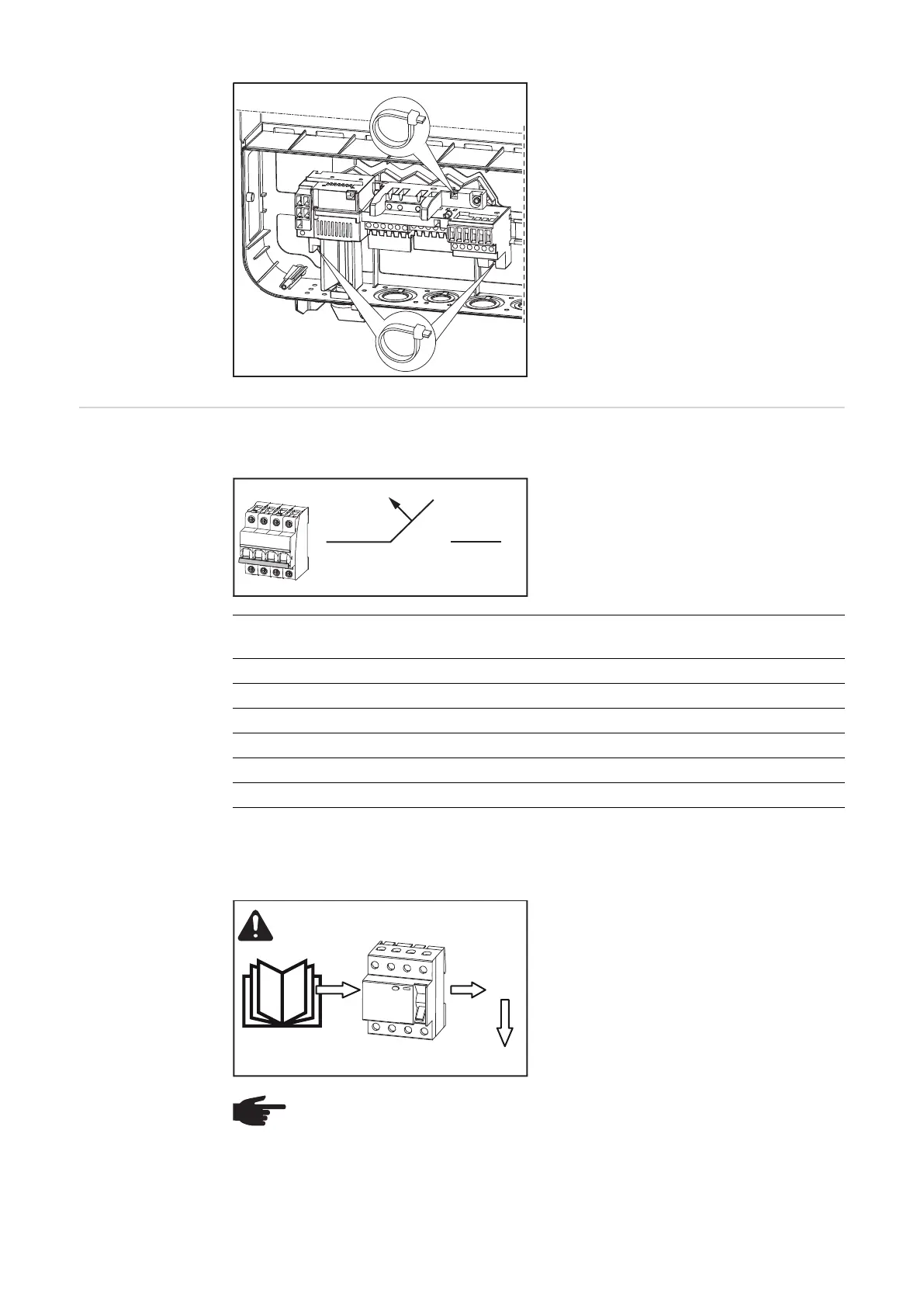

If excessively long AC or DC cables are laid
in loops in the connection area, fix the cab-
les to the designated eyelets at the top and
bottom of the connection block using cable
ties.
Maximum AC
Fuse Protection
Power circuit breaker
RCCB
Inverter Phases AC power
Maximum
fuse protection
Fronius Symo Advanced 10.0-3 208–240 3+N 10,000 W C 80 A
Fronius Symo Advanced 12.0-3 208–240 3+N 12,000 W C 80 A
Fronius Symo Advanced 15.0-3 480 3+N 15,000 W C 80 A
Fronius Symo Advanced 20.0-3 480 3+N 20,000 W C 80 A
Fronius Symo Advanced 22.7-3 480 3+N 22,700 W C 80 A
Fronius Symo Advanced 24.0-3 480 3+N 24,000 W C 80 A
NOTE! A residual current circuit breaker for the AC connecting cable may be re-
quired depending on local regulations, the grid operator, and other conditions. A
type A residual current circuit breaker with a trip current of at least 100 mA is gen-
erally sufficient in this case. However, false alarms can be triggered for the resid-
ual current circuit breaker type A in individual cases and depending on local
conditions. For this reason, Fronius recommends that you use a residual current
circuit breaker suitable for frequency converters.
max. 80 A
AC ~
RCD
National Standards
?
Type A
YES
I
ΔN
≥ 100 mA
§
