48
Clipping the Inverter onto the Mounting Bracket
Clipping the In-
verter onto the
Mounting Bracket
Due to the high weight, the inverter should be clipped to the mounting bracket in sets of
two.
The fixing screws in the data communication area of the inverter are used to fix the inverter
to the mounting bracket. Fixing screws must be properly tightened to ensure correct con-
tact between the inverter and the mounting bracket.
Use a torque screwdriver to insert the
screws into the inverter. Do not use a con-
ventional cordless screwdriver – the tigh-
tening torque will not be sufficiently
accurate.

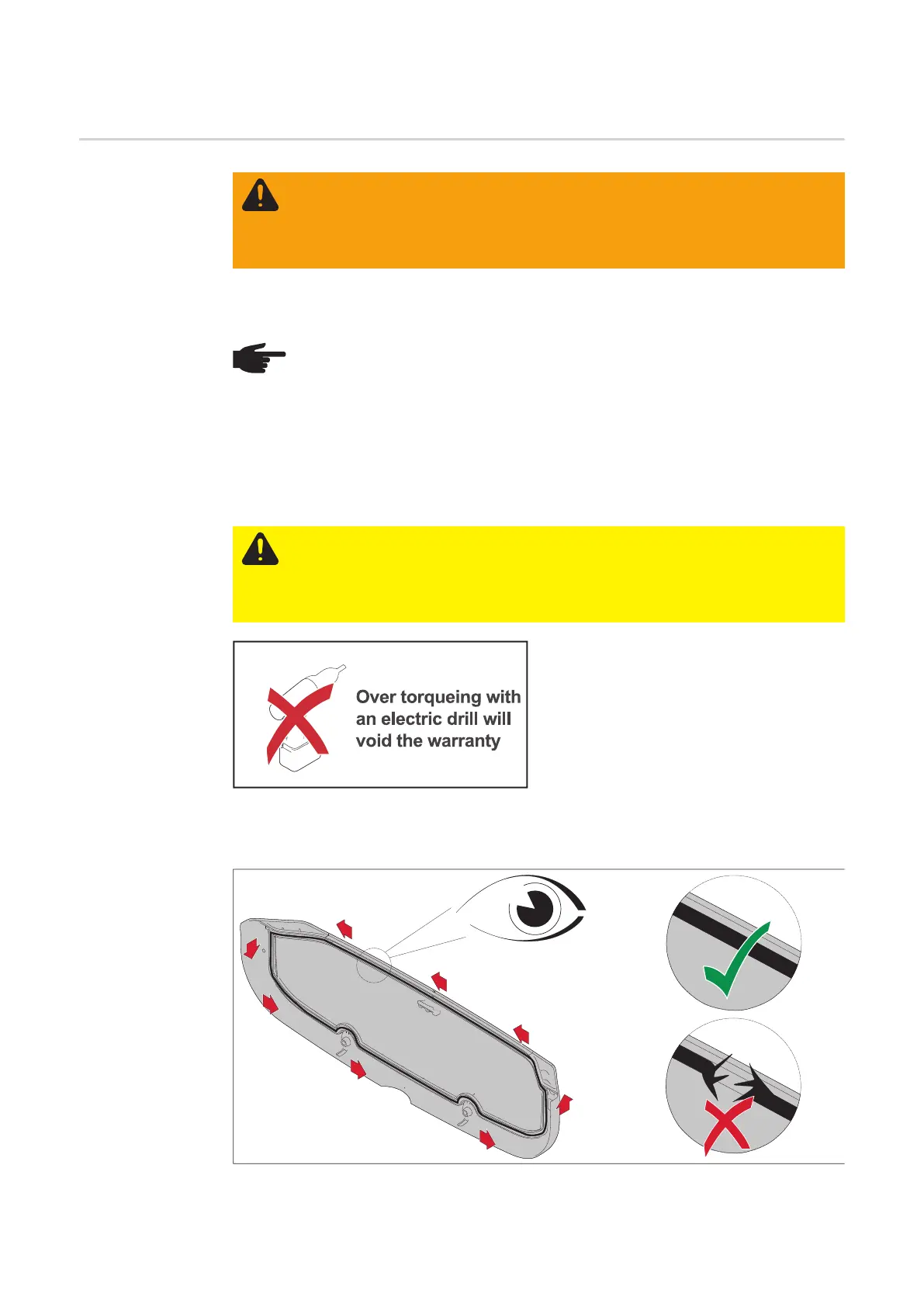

Before attaching the Datcom lid, check the seals on the back for damage. If there is dam-
age, replacement covers (DatCom Cover Upgrade Kit) must be ordered.
WARNING! An inadequate ground conductor connection can cause serious inju-
ry and damage to property. The housing screws provide an adequate ground con-
ductor connection for grounding the housing and should not be replaced under
any circumstances by other screws that do not provide a reliable ground conduc-
tor connection.
NOTE! The inverter is fitted with a lock for safety reasons, which allows the invert-
er to be pivoted in the mounting bracket only when the DC main switch is off.
- Only clip on and pivot the inverter in the mounting bracket when the DC main
switch is off.
- Do not use excessive force to clip on the inverter and pivot it.
CAUTION! Risk of damage to the inverter due to improperly tightened fixing
screws.
Improperly tightened fixing screws may cause arcs to occur when the inverter is
operated, which may lead to fire. Always tighten the fixing screws with the speci-
fied torque.
