Frontier GM1190R User Manual

34 Parts
WPMAN0142 (Rev. 9/1/2004)

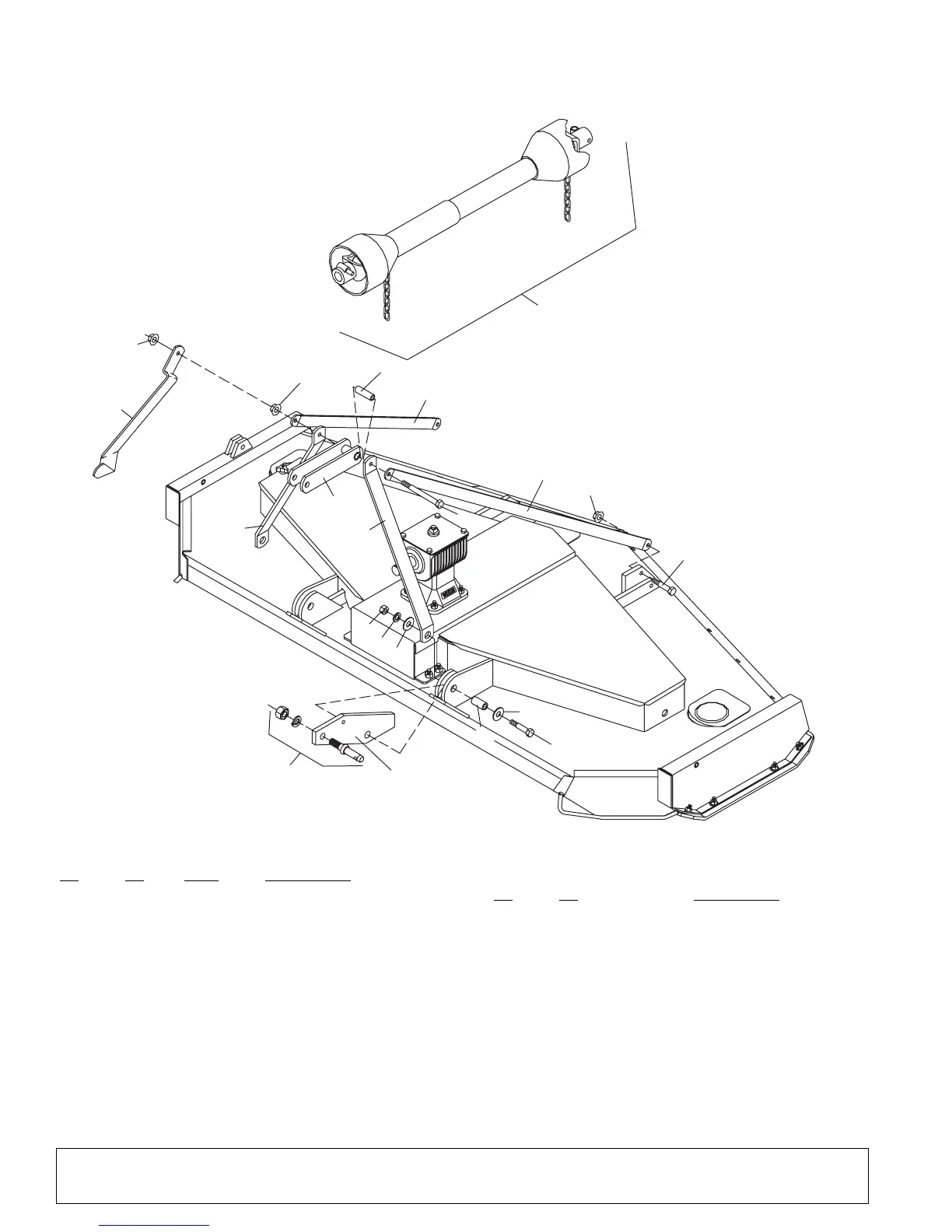

GM1190R MAIN FRAME ASSEMBLY
REF PART NO
NO
NO USED DESCRIPTION
1 WP19975 1 Bracket, Hitch Pin Left
-or- -or-
1 WP19976 1 Bracket, Hitch Pin Right
2 WP33661 2 Pin, Mntng Cat 1 w/Nut & Lkwshr
3 WP19977 2 Link, Front Offset
4 WP19585 1 Link, Top Clevis
5 WP19578 2 Link, Rear Offset
6 WP64814 1 Sleeve, .62 x .84 x 2.75
7 ----- 1 Universal drive (see page 36)
8 WP36998 1 Bracket, PTO Hanger
HARDWARE
REF PART
NO
NO DESCRIPTION
30 * Screw, HHCS 1/2 NC x 1-1/2 GR5
32 * Screw, HHCS 1/2 NC x 4-3/4 GR5
33 WP11900 Nut, Flanged Lock 1/2 NC
35 * Screw, HHCS 5/8 NC x 3-1/2 GR5
36 * Washer, Flat 5/8 Standard
37 * Washer, Lock 5/8
38 * Nut, Hex 5/8 NC
39 WP19524 Sleeve, HT .64 x 1.00 x 2.09
* Obtain Locally
33
8
4
3
3
32
6
5
33
33
35
36
37
36
38
5
7
2
39
30
1
