Frontier GM1190R User Manual

36 Parts
WPMAN0142 (Rev. 9/1/2004)

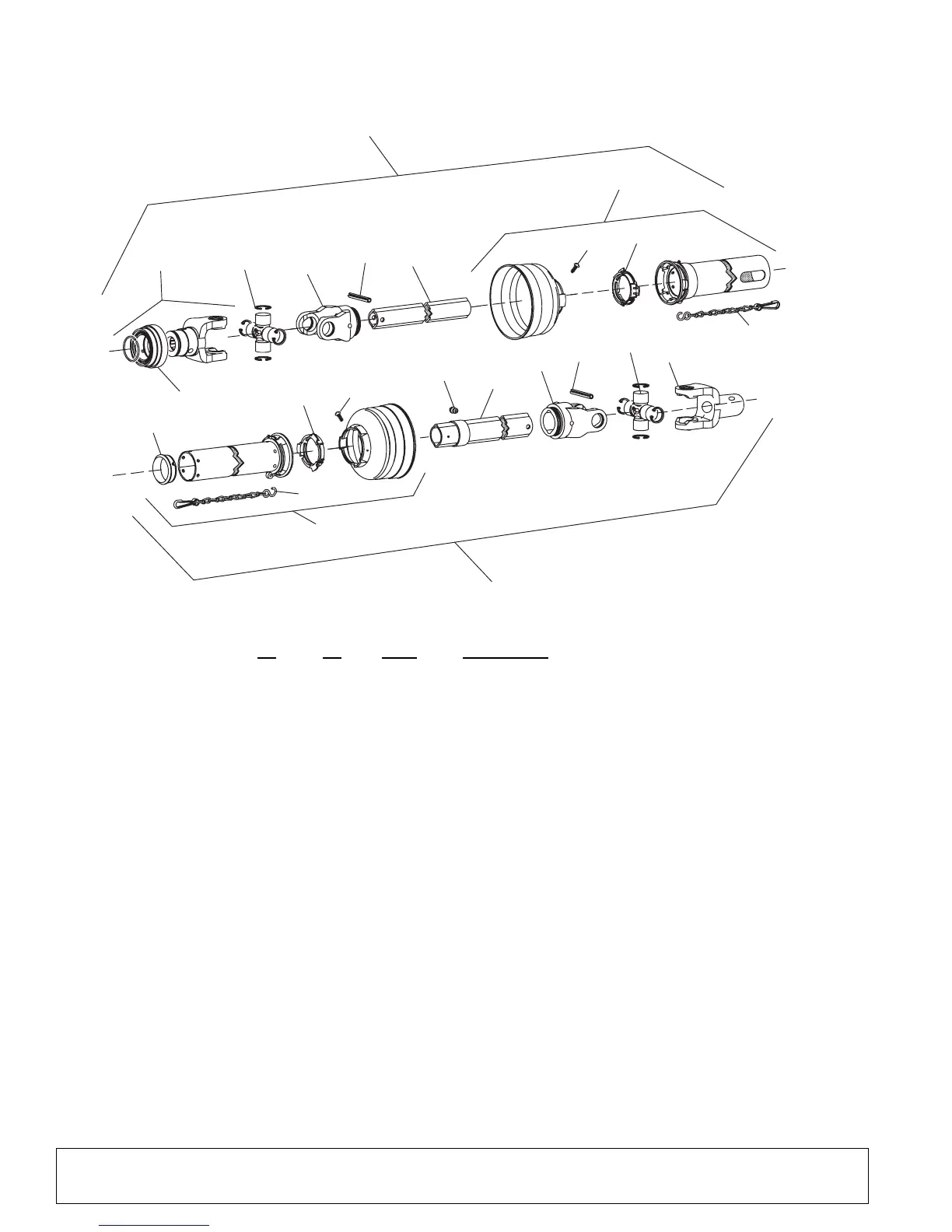

GM1190R DRIVE SHAFT
1
2
4
3
5
14
12
21
23
13
18
12
22
24
17
6
7
3
2
2
14
REF PART NO
NO
NO USED DESCRIPTION
-- WP1001228 1 Complete Drive Shaft
1 WP40574 1 Yoke, 1-3/8 - 6 Spline QD
2 WP110 2 U-Joint Repair Kit 35N
3 WP40764 2 Pin, Spring 10mm x 80mm
4 WP40575 1 Yoke, Inner Profile (male drive tube)
5 WP40587 1 Drive Tube, Inner Profile (cut to length)
6 WP40588 1 Drive Tube, Outer Profile (cut to
length)
7 WP40576 1 Inboard yoke
8 WP40570 1 Yoke, 1-3/8
12 WP40766 2 Bearing Ring, Guard
13 WP40777 2 Chain, Guard Anti-Rotation
14 WP40778 2 Screw, Guard Retainer
17 WP40779 1 Grease Zerk, Drive Line
18 WP40767 1 Bearing, Guard Support
20 WP40589 2 Slide Lock Collar Repair Kit
21 WP40590 1 Guard, Outer Half
22 WP40591 1 Guard, Inner Half
23 WP40744 1 Drive, Inner Half Complete
24 WP1001226 1 Drive, Outer Half Complete
