Frontier GM1190R User Manual

Parts 39
WPMAN0142 (Rev. 9/1/2004)

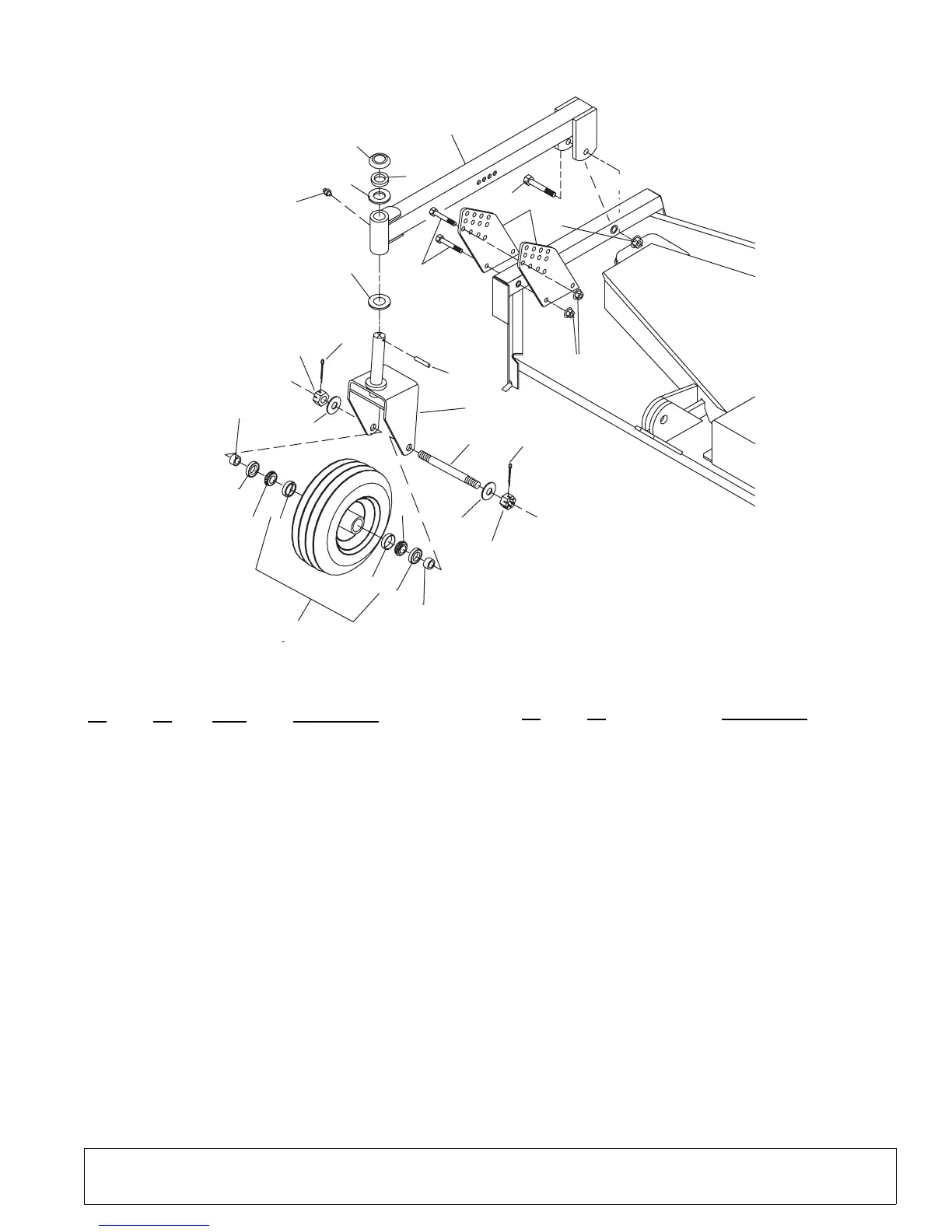

FRONT CASTER ARM ASSEMBLY
REF PART NO
NO
NO USED DESCRIPTION
1 WP20718G 2 Solid tire, wheel & hub, 13.00 x
5.00 x 10 Gray (includes item 5)
-or- -or-
1 WP19744G 2 Pneumatic tire, wheel & hub,
Gray 13 x 5-6 (includes item 5)
3 WP20777 2 Plate, Front Caster Support
4 WP20781 2 Caster Arm Assembly w/Bearing
5 WP2306 4 Bearing, Cup
6 WP2304 4 Bearing, Cone
7 WP5624 4 Seal, 1.13 x 1.78 x .47
8 WP52743 2 Caster Yoke & Shaft Asy
9 WP52741 2 Axle, Caster .75 x 8.25
10 WP52744 4 Sleeve, HT .75 x 1.13 x .63
.
HARDWARE
REF PART
NO
NO DESCRIPTION
14 * Pin, Spirol 1/4 x 2
15 * Grease Fitting, 1/4-28 Tapered
Thread
16 * Screw, HHCS 1/2 NC x 3-3/4 GR5
18 WP11900 Nut, Flanged Lock 1/2 NC
20 * Screw, HHCS 5/8 NC x 4 Hex GR5
22 WP19025 Nut, Flanged Lock 5/8 NC
24 WP23609 Washer, Flat 1.25 x 2.38 x .19
25 WP24588 Seal, Felt 1.25 x 1.88 x .38
26 WP24589 Washer, Cap Caster Wheel
28 * Washer, Flat 3/4 Standard
29 WP5849 Nut, Slotted Hex 3/4 NF
30 * Pin, Cotter 3/16 x 1-1/2
* Obtain Locally
26
25
24
15
24
22
18
14
8
930
29
28
6
5
7
10
1
5
6
7
10
28
29
30
16
3
20
4
CD3963D
(Rev. 7/6/2007)
