Frontier GM1190R User Manual

40 Parts
WPMAN0142 (Rev. 9/1/2004)

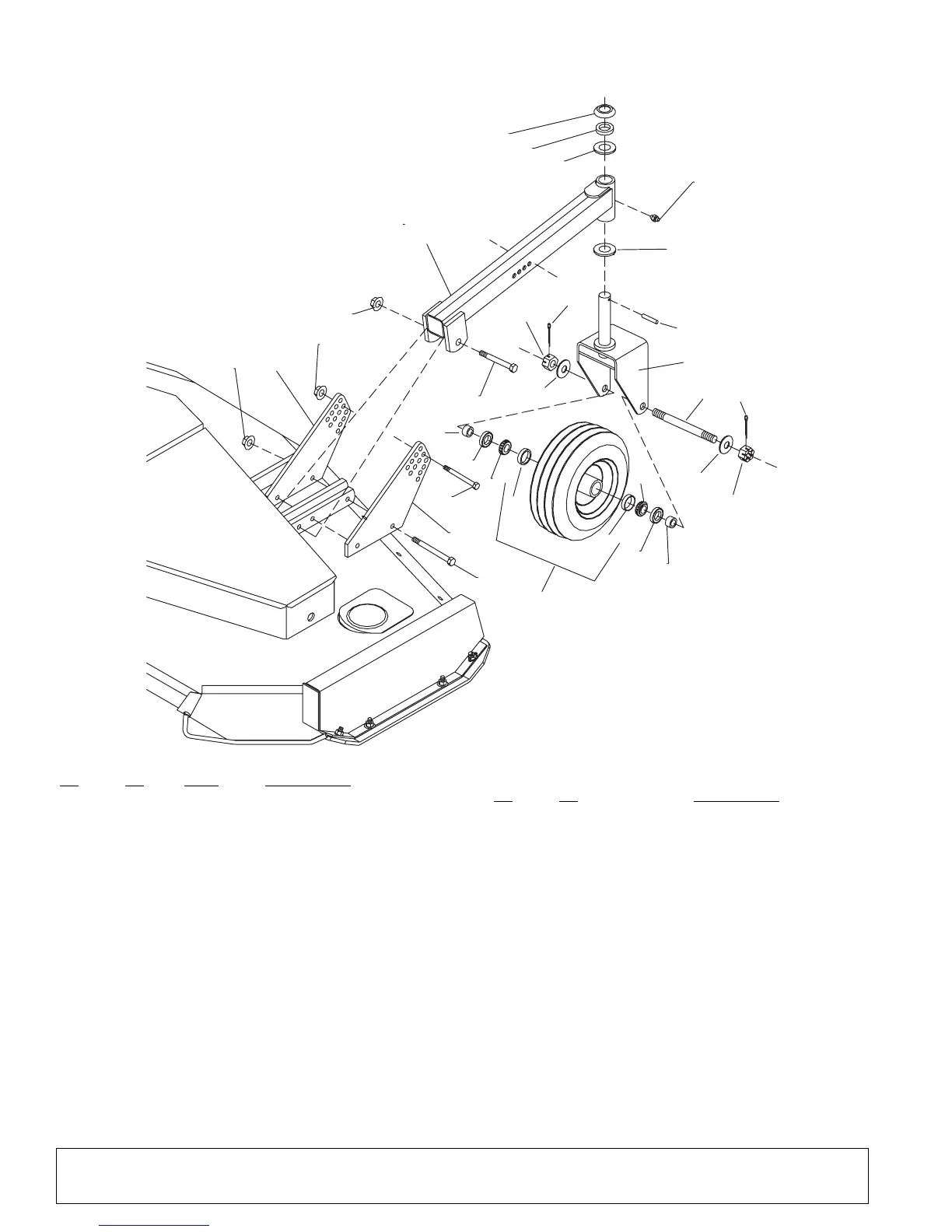

REAR CASTER ARM ASSEMBLY
REF PART NO
NO
NO USED DESCRIPTION
1 WP20776 2 Plate, Rear Caster Support
2 WP20781 2 Caster Arm Asy w/Bearing
3 WP24589 2 Washer, Cap Caster Wheel
4 WP24588 2 Seal, Felt 1.25 x 1.88 x .38
5 WP23609 4 Washer, Flat 1.25 x 2.38 x .19
9 WP5624 4 Seal, 1.13 x 1.78 x .47
10 WP2304 4 Bearing, Cone
11 WP2306 4 Bearing, Cup
12 WP20718G 2 Solid tire, wheel & hub, 13.00 x
5.00 x 10 Gray (includes item 5)
-or- -or-
12 WP19744G 2 Pneumatic tire, wheel & hub,
Gray 13 x 5-6 (includes item 5)
13 WP52743 2 Caster Yoke & Shaft Asy
14 WP52744 4 Sleeve, HT .75 x 1.13 x .63
15 WP52741 2 Axle, Caster .75 x 8.25
HARDWARE
REF PART
NO
NO DESCRIPTION
30 * Grease Fitting 1/4-28 Tapered Thread
31 * Pin, Spirol 1/4 x 2
32 * Screw, HHCS 1/2 NC x 3-3/4 GR5
34 WP11900 Nut, Flanged Lock 1/2 NC
36 * Screw, HHCS 5/8 NC x 4 GR5
38 WP19025 * Nut, Flanged Lock 5/8 NC
39 * Washer, Flat 3/4 Standard
40 WP5849 Nut, Slotted Hex 3/4 NF
41 * Pin, Cotter 3/16 x 1-1/2
* Obtain Locally
CD4000C
3
4
5
30
5
2
38
34
38
1
14
36
39
40
41
13
31
15
41
40
39
9
10
32
1
12
11
11
10
9
14
36
(Rev. 7/6/2007)
