Frontier GM1190R User Manual

Parts 35
WPMAN0142 (Rev. 9/1/2004)

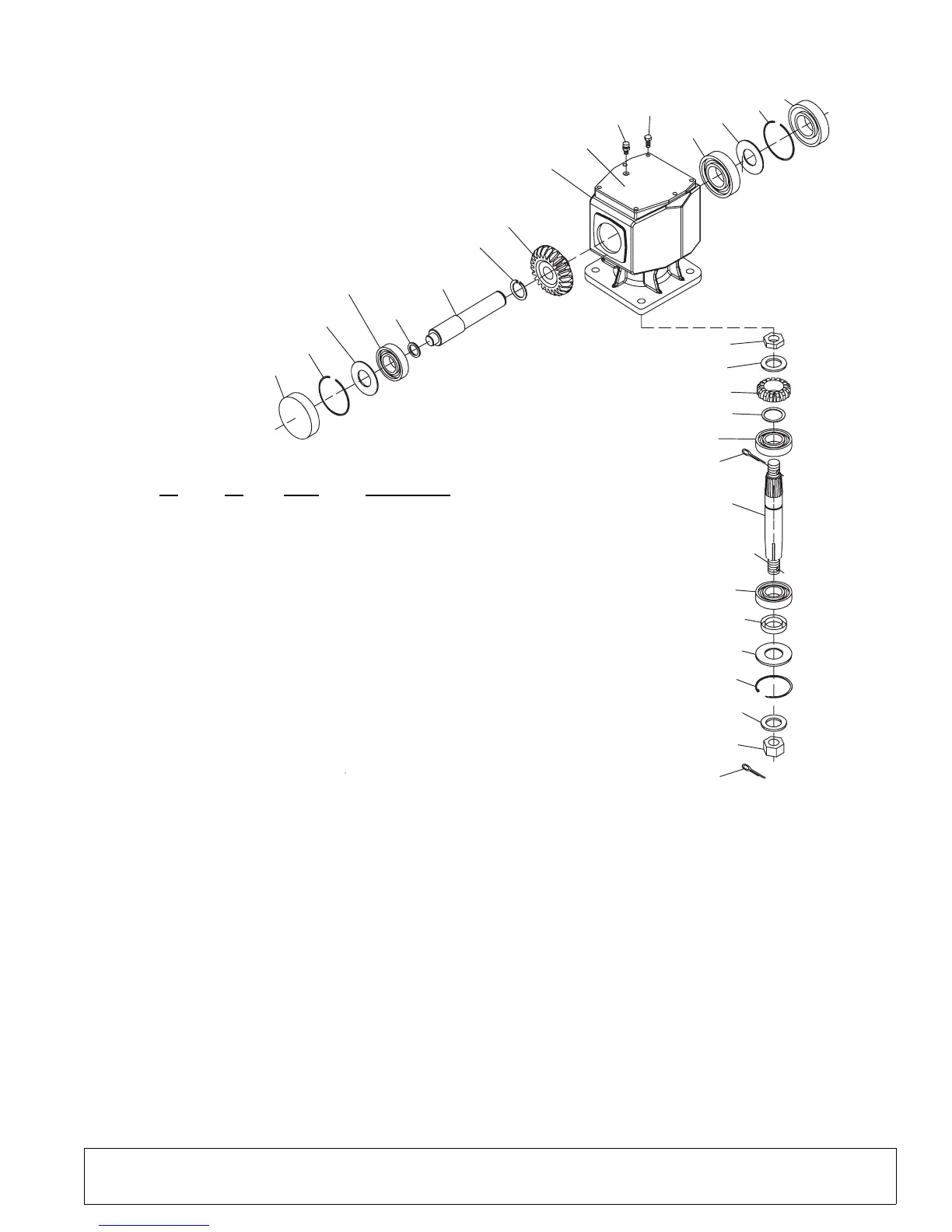

GEARBOX ASSEMBLY
15
12
1
13
3
14
9
12
23
16
20
5
15
6
11
4
7
21
19
10
18
17
25
8
27
15
2
26
11
22
REF PART NO
NO
NO USED DESCRIPTION
1 WP1001224 1 Gear, Bevel 22 Tooth
2 NS 1 Gearbox housing
3 WP57465 1 Shaft, Input
4 WP1001218 1 Shaft, Output
5 WP1001223 1 Gear, Bevel 13 Tooth
6 WP39257 1 Bearing, Cup & Cone
7 WP57478 1 Bearing, Cup & Cone
8 WP57462 1 Bearing, Cup & Cone
9 WP20890 1 Bearing, Ball
10 WP20897 1 Ring, Retaining Int 81mm
11 * 2 Pin, Cotter
12 WP57466 2 Ring, Snap
13 WP20895 1 Ring, Snap
14 WP57373 1 Washer, Flat 35.3mm x 48mm x 2.5mm
15 WP57328 2 Shim Kit
16 WP57469 1 Nut, Castle M24 x 1.5
17 WP20892 1 Nut, Castle M24 x 2
18 WP20893 1 Washer, Flat 25mm x 44mm x 4mm
19 WP57475 1 Washer, Protective
20 WP57474 1 Washer, Flat 25mm x 48mm x 2.5mm
21 WP20900 1 Seal, 40mm x 80mm x 12mm
22 WP57463 1 Seal, 35mm x 72mm x 10mm
23 WP57374 1 Oil cap
25 WP57376 1 Gearbox top cover
26 * 6 Bolt, 8mm x 16mm (8.8)
27 WP57076 1 Plug, Breather 1/2
* Obtain locally
NS = Not Serviced
(Rev. 2/27/2006)
