Frontier GM1190R User Manual

Parts 37
WPMAN0142 (Rev. 9/1/2004)

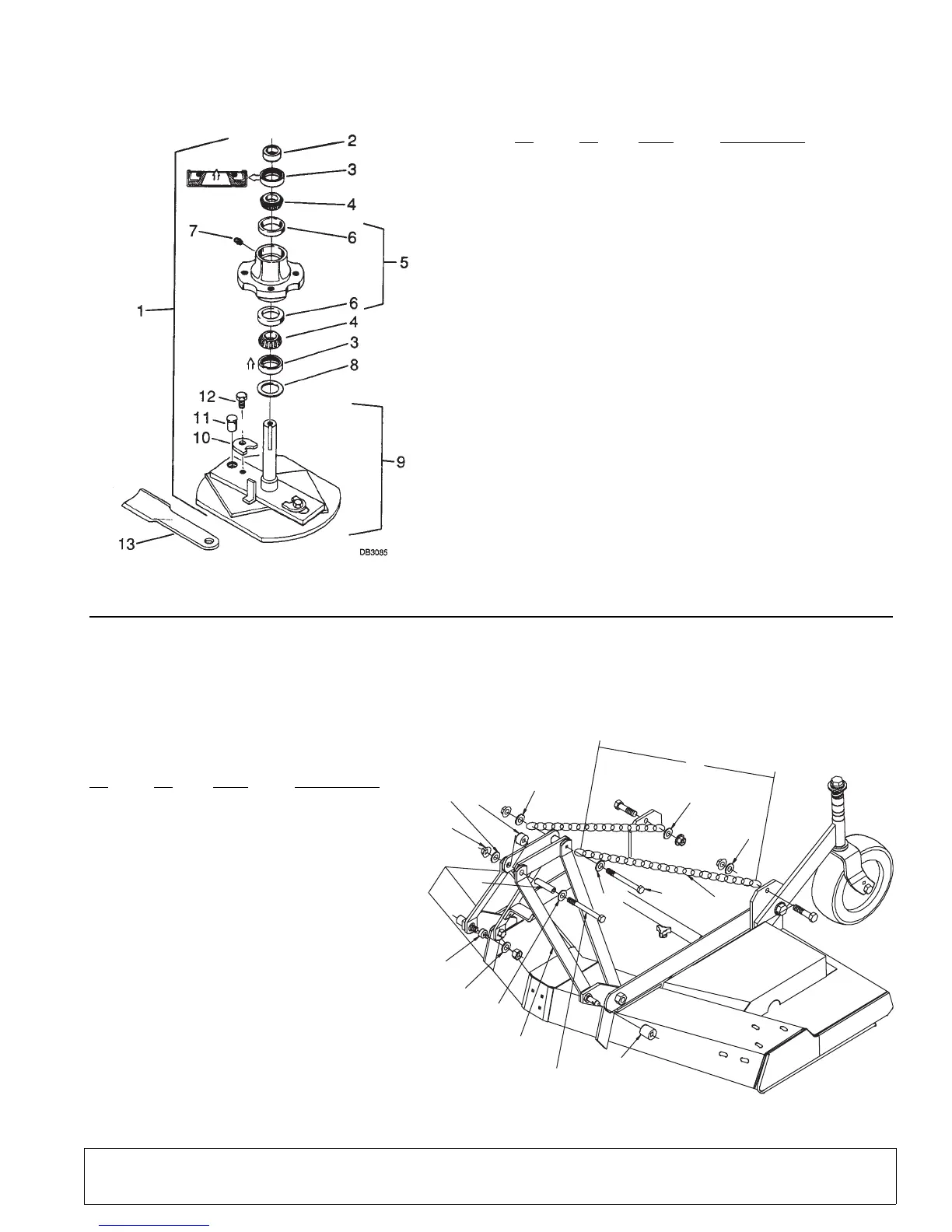

BLADE SPINDLE ASSEMBLY
QUICK HITCH KIT (OPTIONAL)
REF PART NO
NO
NO USED DESCRIPTION
1 WP24520 1 Spindle, Assembly Complete
2 WP18359 1 Sleeve, 1.38 x 1.75 x .63
3 WP2715 2 Seal, 1.75 x 2.56 x .50
4 WP2717 2 Bearing, Cone
5 WP18361 1 Spindle, Housing w/Cups
6 WP2716 2 Bearing, Cup
7 ----- 1 See extended zerk, page 33
8 WP2718 1 Washer, Flat 1.75 x 2.38 x 13 Ga
9 WP24521 1 Shaft, Blade Spindle & Crossbar
10 WP24527 2 Spindle, Blade Lock
11 WP3967 2 Pin, Blade QD
12 WP13288 2 Screw, HHCS Nylok 1/2 NC x
3/4 GR5
13 WP24590KT 1 CCW Blade, 13" long - Standard
-or- -or-
13 WP28329KT 1 CCW Low Suction Blade, 13"
Long - Optional
* Obtain Locally
CD6080A
A
5
5
7
6
10
5
5
2
5
4
3
5
1
9
8
1/2 x 4-3/4 HHCS
REF PART NO
NO
NO USED DESCRIPTION
1 WP1003692 2 Link, Offset .38 x 2.0 x 15
2 WP1005401 2 Chain 3/8 Proof Coil 38-
Link
3 WP38214 2 Sleeve, .91 x 1.44 x 1.25
4 WP13563 1 Screw, HHCS 1/2 NC x 6
GR5
5 * 6 Washer, Flat 1/2 ZP
6 WP29368 1 Sleeve, .50 x .75 x 3.38
7 WP11900 1 Nut, Flange Lock 1/2 NC
8 WP29281 2 Sleeve, 7/8 x 1-1/8 x 19/32
HT
9 * 2 Washer, Flat 7/8
10 WP1003614 1 Sleeve, .81 x 1.25 x 1.81
* Obtain locally
