1-2
1.2 External View and Terminal Blocks
(1) External views
Control circuit
terminal block
cover
Sub
nameplate
Keypad
Main circuit
terminal block
cover
Main
nameplate
Main
nameplate
Control circuit
terminal bock cover

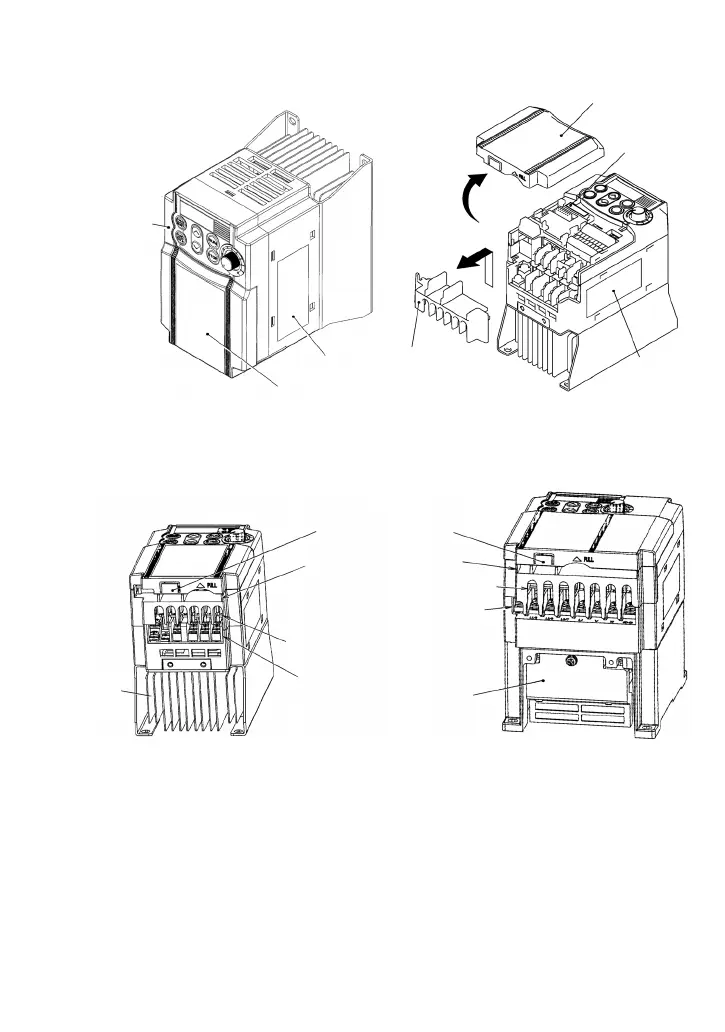

Figure 1.2 External Views of FRENIC-Mini
(2) View of terminals
Barrier for the RS485
communications port*
Control signal cable port
DB, P1, P (+) and N (-) wire port
L1/R, L2/S, L3/T, U, V, W,
grounding wire port
L1/R, L2/S, L3/T, P1, P (+), N (-)
wire port
DB, U, V, W,
grounding wire por
t
Heat
sink
Cooling
fan
(a) FRN0.75C1S-2 (b) FRN1.5C1S-2
(* When connecting the RS485 communications cable, remove the control
circuit terminal block cover and cut off the barrier provided in it using nippers.)
Note: A box () in the above model names replaces A, C, E, or J depending on
the shipping destination.
Figure 1.3 Bottom View of FRENIC-Mini
1.3 Transportation
• When carrying the inverter, always support its bottom at the front and rear sides with both hands.
Do not hold covers or individual parts only. You may drop the inverter or break it.
• Avoid applying excessively strong force to the terminal block covers as they are made of plastic
and are easily broken.
