 Overflow control
• Triggering condition
The float switch is turned on.
• Operation details
– The drain pump is turned on.
– When the operation mode is cooling or dry, operate the followings.
• The compressor is stopped.
• Then indoor fan control is turned off.
• Release condition
– The float switch is turned off.
• In the case that on the cooling or dry mode the thermostat is on, refer to "During the com-
pressor in operation" for the operation after release.
• In other case, refer to "When the compressor is not in operation" for the operation after
release.
– 3 minutes passed
• Operation after release
The compressor stopps permanently.
 The compressor is stopped by Anti-freezing control
• Triggering condition
During the compressor in operation, the compressor is stopped by Anti-freezing control.
• Operation details
The drain pump is kept on in 60 minutes after Anti-freezing control released.
• Release condition
60 minutes passed
• Operation after release
According to the settings, operate the followings.
On
Off
On
Off
On
Off

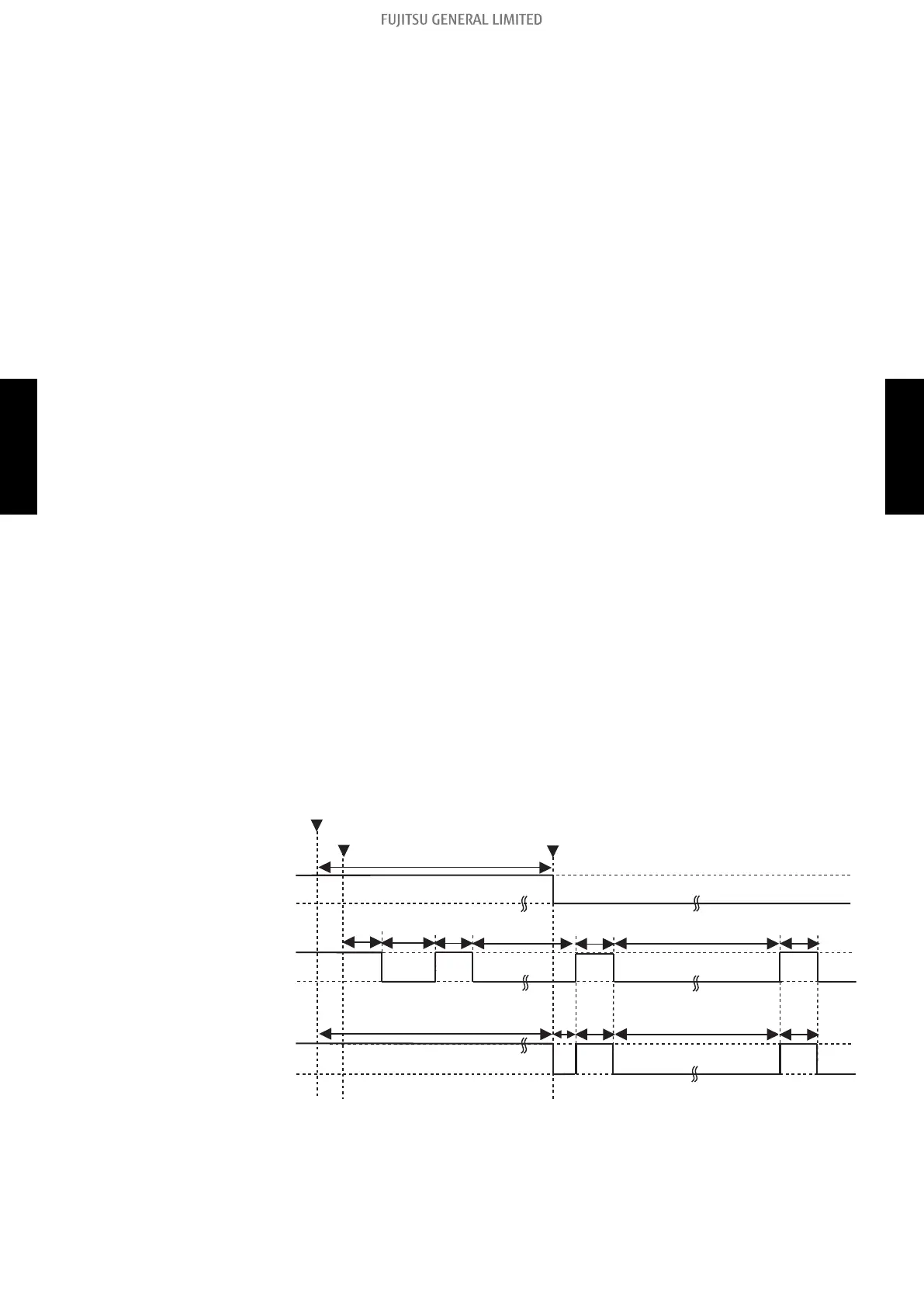

a. Operation at
anti-freezing
b. Operation when
cooling mode is
stopped
Operation at
a. and b.
60
3
7
3 3
47
3
117
(min)
3
2
3
60
117
Anti-freezing start
Stopped
Release
freezing
7-9. Drain pump control - (04-26) - 7. Various control
CONTROL AND FUNCTIONS CONTROL AND FUNCTIONS

Fujitsu ABYG36KRTA Specifications

General

Style	Split-type
Color	White
Features	Bladeless Design
Min/Max: 0.50-3.20 kW	000 BTU/h
Min/Max Cooling 2.20/8.00 kW?	860-11
2	9.5 (2.8 - 11.2) kW
Min/Max: 0.50-4.40 kW	000 BTU/h
Min/Max Heating 1.90/9.00 kW?	000 Btu/h
Moisture Removal	2.60 l/h
Fan Airflow Rate	High / Mid / Low: [CMM] (C) 17.5/15.9/14.3 (H) 17.5/15.9/14.3 CMM
Heating (?): 10.0 ~ 45.0 ?	Cooling: -15 to 46 °C DB
Sound Pressure Level	Indoor (Cooling) : High 44 dB(A)
Indoor (Heating): High 44 dB(A)	36 / 26 / 23 dBA (H / L / QLo)
Refrigerant Type	R32
Refrigerant Charge	-
Annual Energy Consumption	Cooling: 524 kWh/a
Heating: 2904 kWh/a	-
Heating: 4.12 W	Cooling: 2.910 kW
Frequency	50 Hz
Voltage	230 V
Heating: 6.60 A	Max Cooling: 22.60 A
Battery Life	-
Battery Capacity	-
Depth	705 mm
Height	235 mm
Width	1700 mm
Net Weight	38.0 kg
