4-2. External output
With using external output function, some status signals are transmitted to the control PCB, and the
related LED lamp indicates the status of this product.
¢
Error status output
Signal on air conditioner error status is generated when a malfunction occurs.

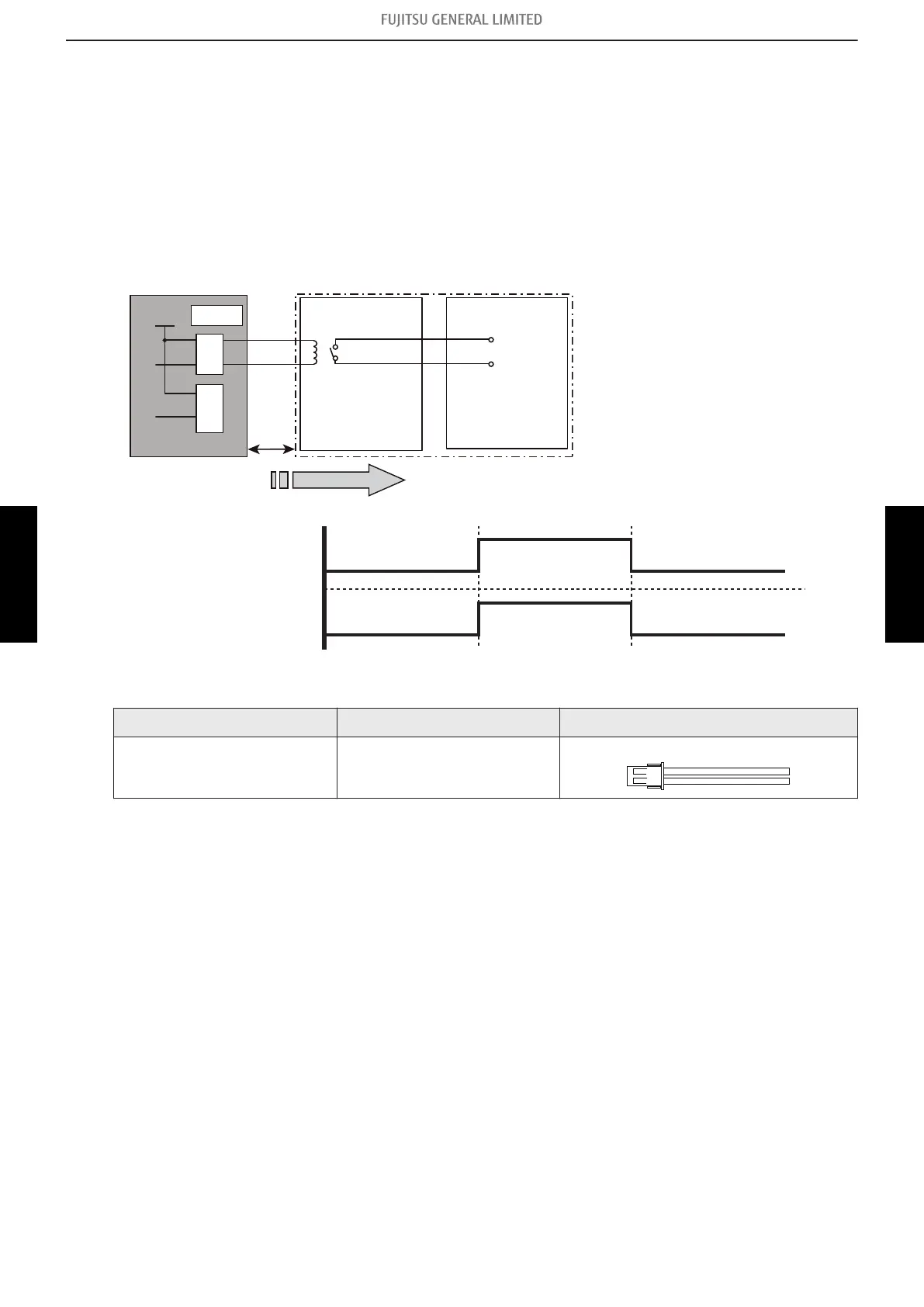

• Circuit diagram example
Outdoor unit
control PCB
Example:
Relay unit
Connected unit (Locally purchased)
Example: Fan
Signal
Connector
1
2
1
2
10m*
12 V
On/
Off
P590
On/
Off
PA590
• Output voltage (Vcc): DC 12
V 50 mA or less
• *: Make the distance from
the PCB to the connected
unit within 10 m.
Error
Normal
On
Off
Error status
Output signal
• Optional part
Part name Model name Exterior
External connect kit UTY-XWZXZ3
External output wire
4-2. External output - (05-23) - 4. External input and output for outdoor unit
FIELD WORKING FIELD WORKING

Fujitsu ABYG36KRTA Specifications

General

Style	Split-type
Color	White
Features	Bladeless Design
Min/Max: 0.50-3.20 kW	000 BTU/h
Min/Max Cooling 2.20/8.00 kW?	860-11
2	9.5 (2.8 - 11.2) kW
Min/Max: 0.50-4.40 kW	000 BTU/h
Min/Max Heating 1.90/9.00 kW?	000 Btu/h
Moisture Removal	2.60 l/h
Fan Airflow Rate	High / Mid / Low: [CMM] (C) 17.5/15.9/14.3 (H) 17.5/15.9/14.3 CMM
Heating (?): 10.0 ~ 45.0 ?	Cooling: -15 to 46 °C DB
Sound Pressure Level	Indoor (Cooling) : High 44 dB(A)
Indoor (Heating): High 44 dB(A)	36 / 26 / 23 dBA (H / L / QLo)
Refrigerant Type	R32
Refrigerant Charge	-
Annual Energy Consumption	Cooling: 524 kWh/a
Heating: 2904 kWh/a	-
Heating: 4.12 W	Cooling: 2.910 kW
Frequency	50 Hz
Voltage	230 V
Heating: 6.60 A	Max Cooling: 22.60 A
Battery Life	-
Battery Capacity	-
Depth	705 mm
Height	235 mm
Width	1700 mm
Net Weight	38.0 kg
