Peak cut mode

By performing following on-site work, operation that suppresses the current value can be enabled:

The air conditioner is set to the “Peak cut mode” when closing the contact input of a commercial

timer or on/off switch to a connector on the control PCB of the outdoor unit.

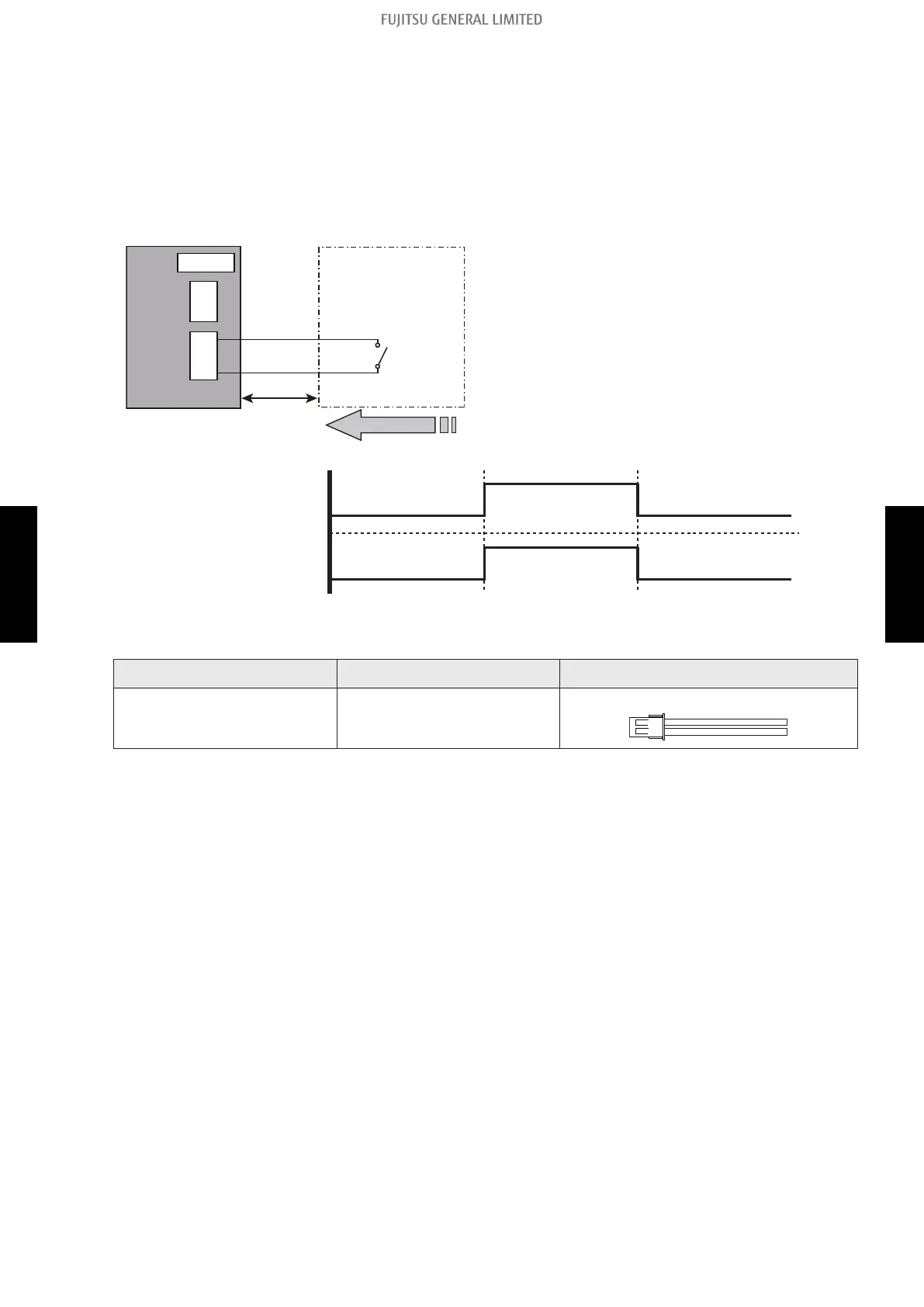

• Circuit diagram example

Outdoor unit

control PCB

Connected unit

(Locally purchased)

Example: Switch

Signal

10m*

Connector

P580PA580

• Contact capacity: DC 24 V or more, 10 mA

or more.

• *: Make the distance from the PCB to the

connected unit within 10 m.

• Construct a circuit as shown in this figure

with using optional parts mentioned below.

• Input signal: On in “Peak cut mode”

• Input signal: Off in normal operation

• To set the level of “Peak cut mode”, refer

to "Peak cut mode" on page 05-9.

Off

Input signal

Peak cut mode

• Optional part

Part name Model name Exterior

External connect kit UTY-XWZXZ3

External input wire

4-1. External input - (05-22) - 4. External input and output for outdoor unit

FIELD

WORKING

FIELD

WORKING
