Fujitsu ABYG36KRTA User Manual

¢
External heater output
Function
setting /
Rotary SW of External
input and output PCB
External output Output signal Command
60-11 / D Output of indoor unit CN47
Low → High Heater on
High → Low Heater off
60-00 / 2
External input and output
PCB
Output 3
Off → On Heater on
60-09 / B
60-10 / C
On → Off Heater off
Output signal Condition
Low → High
Heater turns on as shown in diagram of heating temperature
Off → On
High → Low
Heater turns off as shown in diagram of heating temperature
• Other than Heating mode
On → Off • Error occurred
• Forced thermo off
• Fan stop protection
Specifications of the signal output performance are as shown as follows:
Example: When set temperature (Ts) is set at 22 °C;
• And room temperature (Tr) increase above 12 °C, signal output is on.
• And Tr increase above 21 °C, signal output is off.
• And Tr decrease below 19 °C, signal output is on.
• And Tr decrease below 10 °C, signal output is off.
Off
Off
On
Tr-Ts
Tr-Ts=-1 °C
Tr-Ts=-10 °C
Tr-Ts=-3 °C
Tr-Ts=-12 °C
The output also turns off in defrost operation.

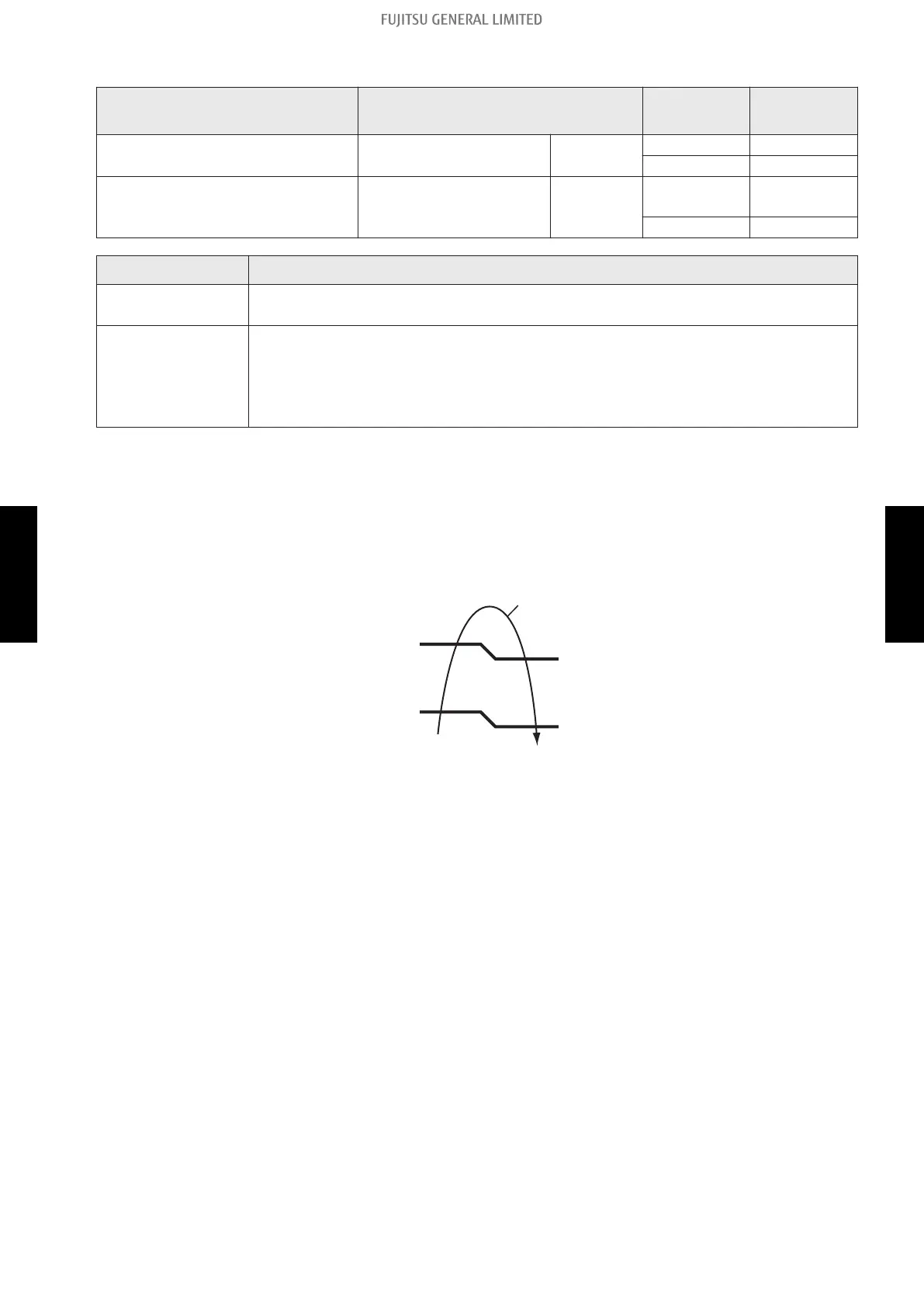

3-4. Details of function - (05-20) - 3. External input and output for indoor unit
FIELD WORKING FIELD WORKING

Fujitsu ABYG36KRTA Specifications

General

Style	Split-type
Color	White
Features	Bladeless Design
Min/Max: 0.50-3.20 kW	000 BTU/h
Min/Max Cooling 2.20/8.00 kW?	860-11
2	9.5 (2.8 - 11.2) kW
Min/Max: 0.50-4.40 kW	000 BTU/h
Min/Max Heating 1.90/9.00 kW?	000 Btu/h
Moisture Removal	2.60 l/h
Fan Airflow Rate	High / Mid / Low: [CMM] (C) 17.5/15.9/14.3 (H) 17.5/15.9/14.3 CMM
Heating (?): 10.0 ~ 45.0 ?	Cooling: -15 to 46 °C DB
Sound Pressure Level	Indoor (Cooling) : High 44 dB(A)
Indoor (Heating): High 44 dB(A)	36 / 26 / 23 dBA (H / L / QLo)
Refrigerant Type	R32
Refrigerant Charge	-
Annual Energy Consumption	Cooling: 524 kWh/a
Heating: 2904 kWh/a	-
Heating: 4.12 W	Cooling: 2.910 kW
Frequency	50 Hz
Voltage	230 V
Heating: 6.60 A	Max Cooling: 22.60 A
Battery Life	-
Battery Capacity	-
Depth	705 mm
Height	235 mm
Width	1700 mm
Net Weight	38.0 kg
