SERVICE PARTS INFORMATION 12
Terminal
SERVICE PARTS INFORMATION 13

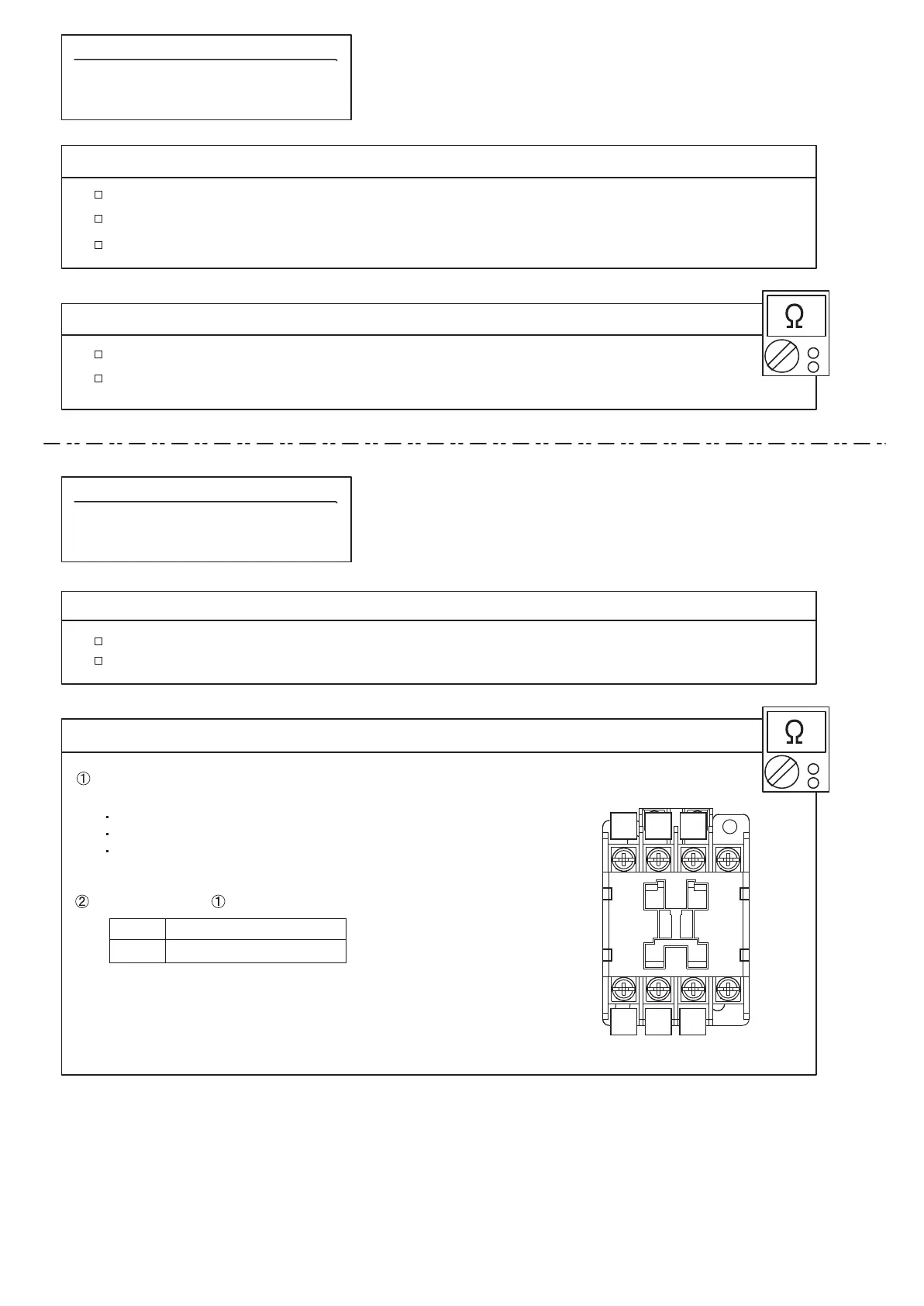

Magnetic Relay
Are there no abnormalities at threaded parts (Stripped threads, deformation, damage, etc.) ?
No short between adjacent terminals?
Conducts before and after same terminal?
Not clogged with foreign matter?
Check Point 1 : Appearance check
Check Point 2 : Electric check
Between R to U
Between S to V
Between T to W
Set the tester to the "Resistance" mode, and check for open/short
between the following terminals. (No polarity)
Open : Normal
Short : Abnormal (contacts fused)
No fissures, breaks, damage, etc. at the body and terminals section?
Are there no abnormalities at threaded parts (Stripped threads, deformation, damage, etc.) ?
R
U V W
S T
Check Point 1 : Appearance check
Check Point 2 : Electric check
No fissures, breaks, damage, etc. at the body and terminals section?
Judge the result of as follows:
04-106
