Fujitsu Airstage VR-II ASUA9TLAV User Manual

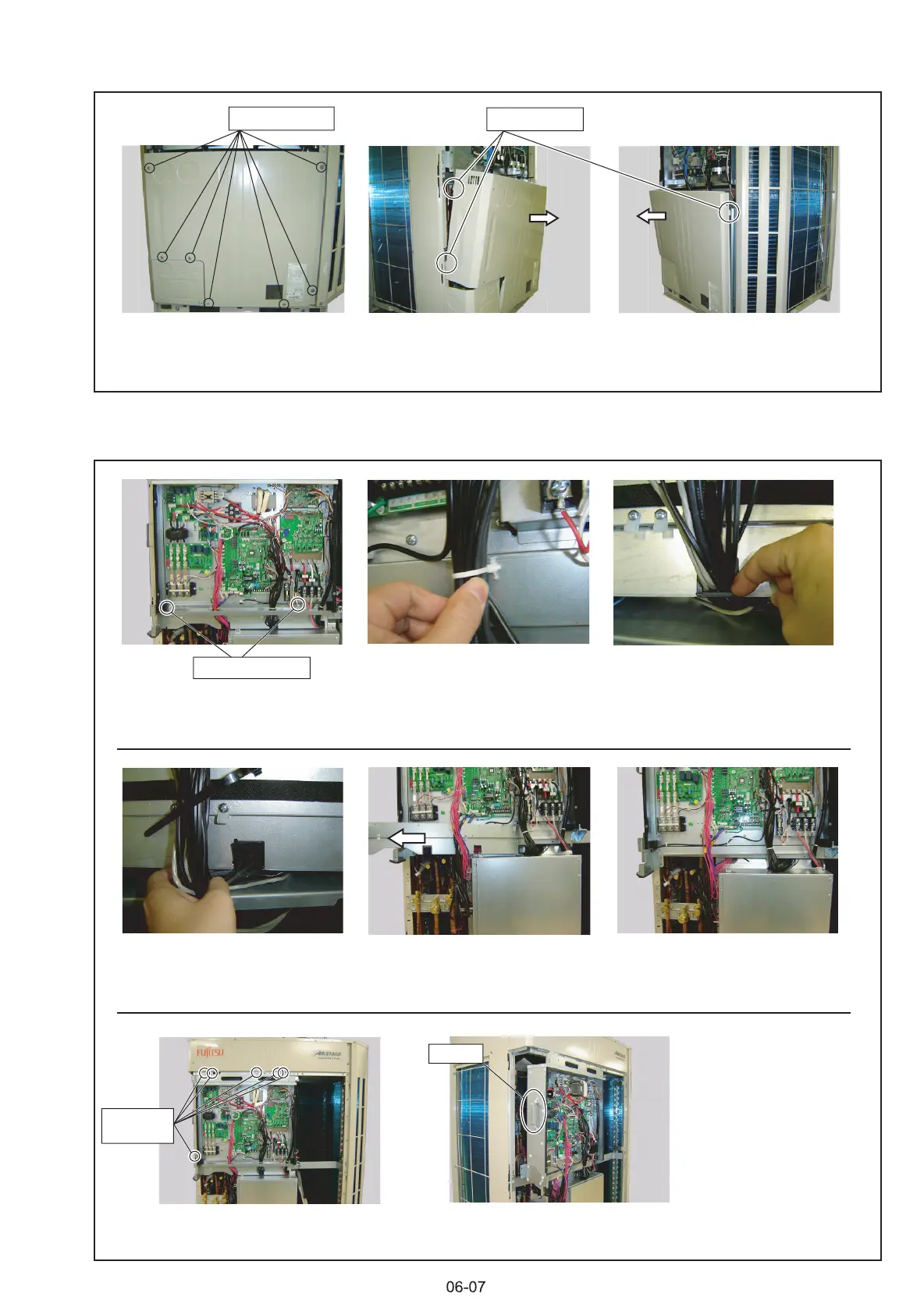

Remove the 7 mounting screws.
9. PANEL BTM removal
10. Control Box open
Remove the PANEL BTM by sliding toward.
Screws (7 places) Hook (3 places)
Screws (2 places)
Screws
(6 places)
Handle
Remove the 2 mounting screws. Loose or remove the cable ties.
(3 places)
Remove the locking stopper
of edging saddle. (3 places)
Remove the wires from edging saddle.
(3 places)
Remove the Wire plate by sliding rightward.
Remove the 6 mounting screws.
Open the Control Box with handle.
