EXTERNAL OUTPUT11-2.
OPERATION STATUS OUTPUT

An air conditioner operation status signal can be output.

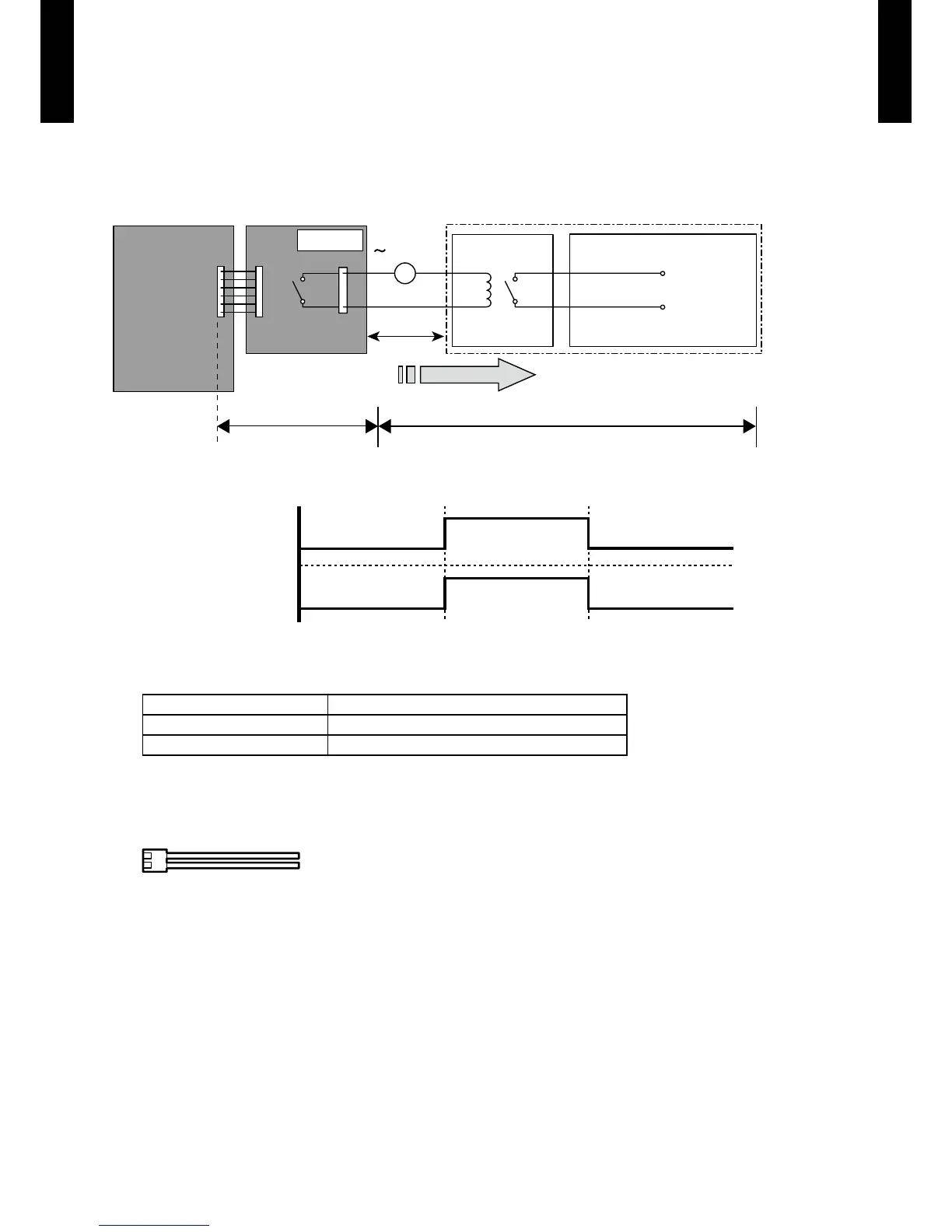

Circuit diagram example

* Make the distance from the PC board to the connected unit within 10m.
Relay spec. : Max.24VDC, 10mA to less than 500mA.
Field supplyOptional parts
Ex.)Display
Indoor
control PC board Communication kit Connected unit
Ex.)Relay unit
1
2
Signal
Relay
power
supply
V
Connector
*10 m
24V DC
ON
OFF
Operation
Stop
Indoor unit
Output signal
Parts (Optional)

Parts name
Model name
External connect kit UTY-XWZXZ5
Communication kit UTY-TWBXF
* For operating the EXTERNAL function, the wall mounted type requires the communication kit in addition to the wire
(UTY-XWZXZ5).
Wire (External output) : UTY-XWZXZ5
