Fujitsu ASYG14LTCB User Manual

-
(
02 - 08
)
-
OUTDOOR UNIT AO

G09-14LT
OUTDOOR UNIT AO

G09-14LT

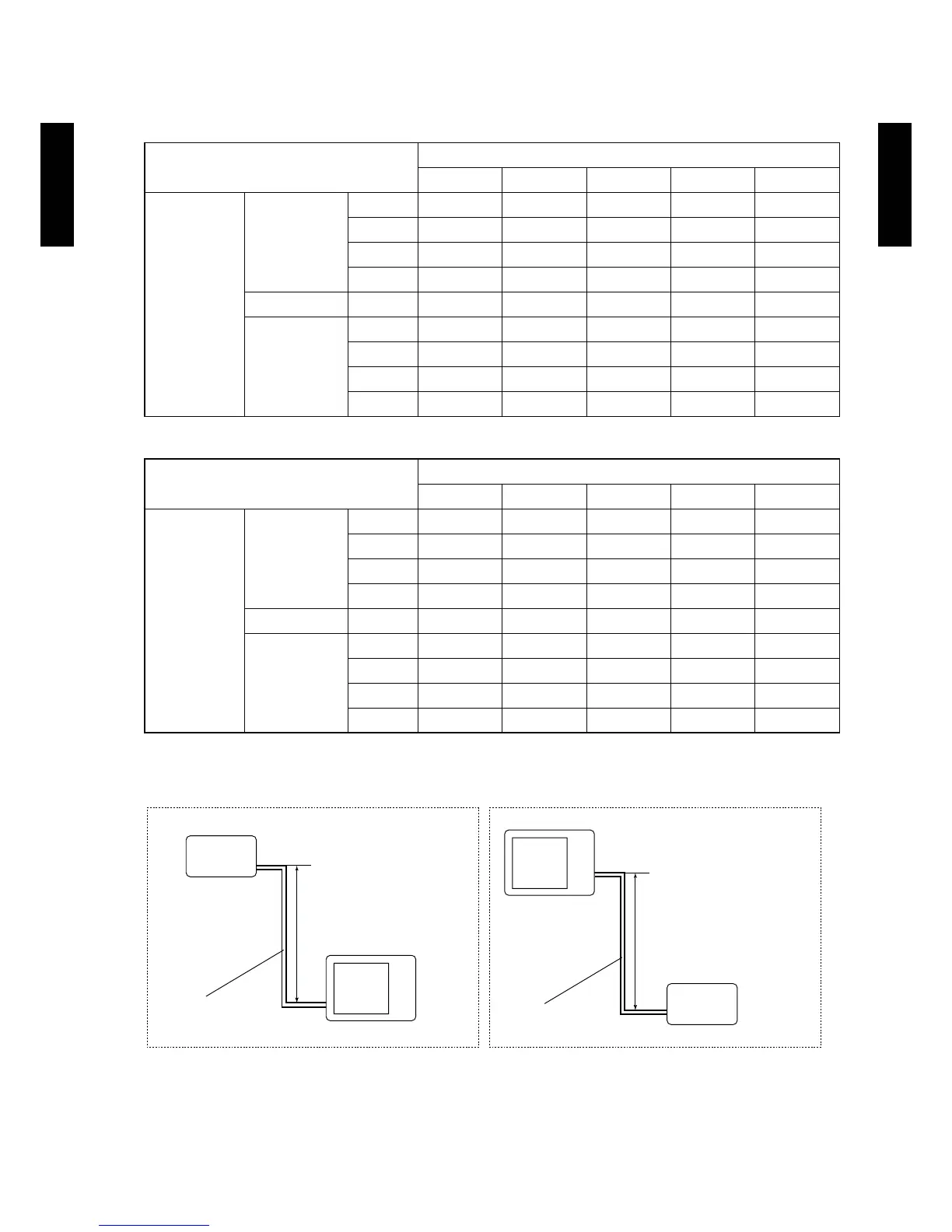

CAPACITY COMPENSATION RATE FOR PIPE LENGTH 5.
AND HEIGHT DIFFERENCE
MODEL

:AO

G09LT
Height difference H

1 Indoor unit is upper than outdoor unit.

2 Indoor unit is under than outdoor unit.
Indoor unit
Indoor unit
Connection pipe
Outdoor unit
Outdoor unit
Connection pipe
HEATING
Pipe length (m)
57.5101520
Height
difference H
(m)

1
Indoor unit is
upper than
outdoor unit.
15 - - - 0.896 0.879
10 - - 0.968 0.890 0.879
7.5 - 0.994 0.968 0.896 0.879
5 1.000 0.994 0.968 0.896 0.879
0 1.000 0.994 0.968 0.896 0.879

2
Indoor unit is
under than
outdoor unit
-5 0.995 0.989 0.963 0.891 0.875
-7.5 - 0.987 0.961 0.889 0.873
-10 - - 0.959 0.887 0.871
-15 - - - 0.878 0.862
COOLING
Pipe length (m)
57.5101520
Height
difference H
(m)

1
Indoor unit is
upper than
outdoor unit.
15 - - - 0.858 0.868
10 - - 0.929 0.872 0.882
7.5 - 0.960 0.933 0.876 0.885
5 0.992 0.964 0.937 0.879 0.889
0 1.000 0.972 0.944 0.887 0.896

2
Indoor unit is
under than
outdoor unit
-5 1.000 0.972 0.944 0.887 0.896
-7.5 - 0.972 0.944 0.887 0.896
-10 - - 0.944 0.887 0.896
-15 - - - 0.887 0.896
