Fujitsu B24W-6 LED User Manual

Getting s tarted
Connecting the device
Please observe the sa fety information in "Importa nt note s", Page 7.
CE conformance and optimum pict ure quality are guaranteed only if
you use the data cables supplied.
► Switch off the monitor an d the computer.
► Disconnect the power plug
from the computer.

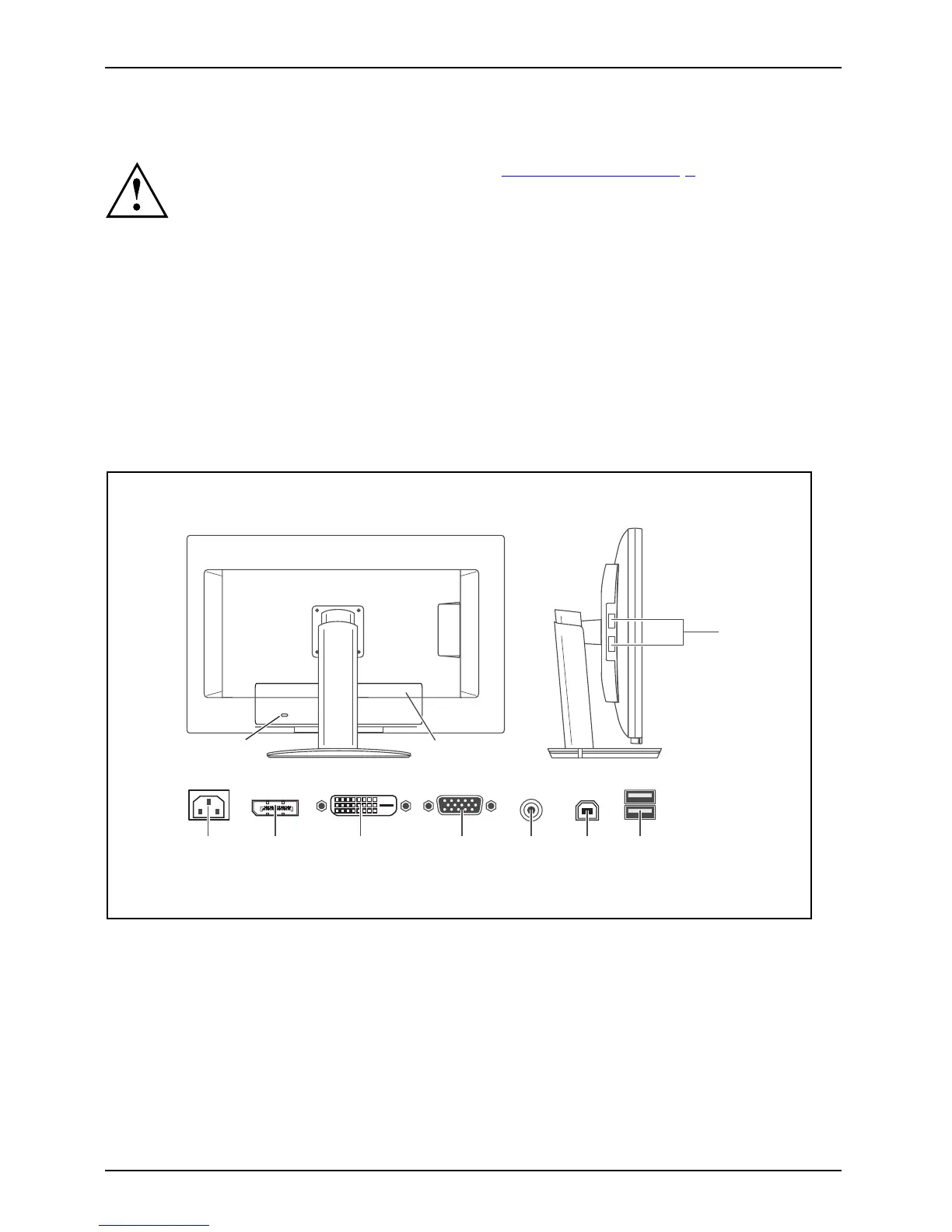

Connecting cables to the monitor
The monitor ports are pr
otected by a cover.
The data cab les s upplie
d have two 1 5-pin D-SUB connectors or two 24-pin DVI
connectors for connec
tion to the monitor and to the computer.
Information on the c o
mputer connections and interfaces is contained in the
operating manual fo
r the computer.
34
5
67
89
1
2
9
1=Securi
ty slot for "Kensington Lock"
2 = Cover
3=Power
connector
4 = Display Port (DP) socket
5=DVI-
D socket (DVI)
6=D-SUBs
ocket (VGA)
7 = AUDIO-IN socket
8=USBIN
(Downstream)
9 = USB OUT (U pstream)
► Remove the cover.
► Select th e appropriate data cable for your computer.
16 Fujitsu Technology Solutions

Fujitsu B24W-6 LED Specifications

General

3D	No
Panel type	TN
Pixel pitch	0.270 x 0.270 mm
Aspect ratio	16:10
Display surface	Matt
Display diagonal	24 \
Display resolution	1920 x 1200 pixels
Display technology	LED
Vertical scan range	56 - 76 Hz
Horizontal scan range	30 - 82 kHz
Viewable size, vertical	324 mm
Contrast ratio (dynamic)	20000000:1
Contrast ratio (typical)	1000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	518 mm
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 800 (WXGA), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 800 x 600 (SVGA)
Mean time between failures (MTBF)	70000 h
HDCP	Yes
USB hub version	2.0
HDMI ports quantity	0
USB Type-A downstream ports quantity	5
Certification	EN 60950, TÜV GS, GOST, TCO 5.2, FCC B, CE
Product color	Gray
Market positioning	-
RMS rated power	3 W
Number of speakers	2
Pivot angle	0 - 90 °
LED indicators	Power
Tilt angle range	-5 - 35 °
Height adjustment	100 mm
Cable lock slot type	Kensington
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	ARA, CZE, DAN, DEU, DUT, ENG, ESP, FIN, FRE, ITA, NOR, POL, POR, RUS, SWE, TUR
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.3 W
Power consumption (standby)	0.4 W
Power consumption (typical)	22 W
Operating temperature (T-T)	5 - 35 °C
Package weight	8400 g
Cables included	AC, Audio (3.5mm), DVI, USB, VGA
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (with stand)	197 mm
Height (with stand)	395 mm
Depth (without stand)	65 mm
Width (without stand)	559 mm
Height (without stand)	368 mm
Weight (without stand)	6300 g
