SECTION 1
CAUTION
HEARING LOSS
Before connecting headphones or a microphone to your computer, always turn down
your computer’s master volume to a minimum.
Failure to do so could result in damage to the audio unit connected or could adversely
affect your hearing.
1 2 3
8 9
1. Headphone jack/Optical digital audio output terminal
• Headphone jack
Used to connect commercially available headphones with a f3.5 mini plug. This jack is
incompatible with some types of cable connectors, so you should consult a salesperson
before purchasing headphones.
• Optical digital audio output terminal
Used also to plug in the fiber-optic cable from an audio unit, e.g., an MD recorder, with an
optical digital input terminal. (Compatible with optical mini-plugs)
6. DC-IN jack
Used to connect the AC adapter included with your computer.
7. PC card slots
Used to insert optional PC cards.
The upper and lower slots are referred to as Slot 2 and Slot 1, respectively.
8. PC card eject button
Press this button to eject the PC card.

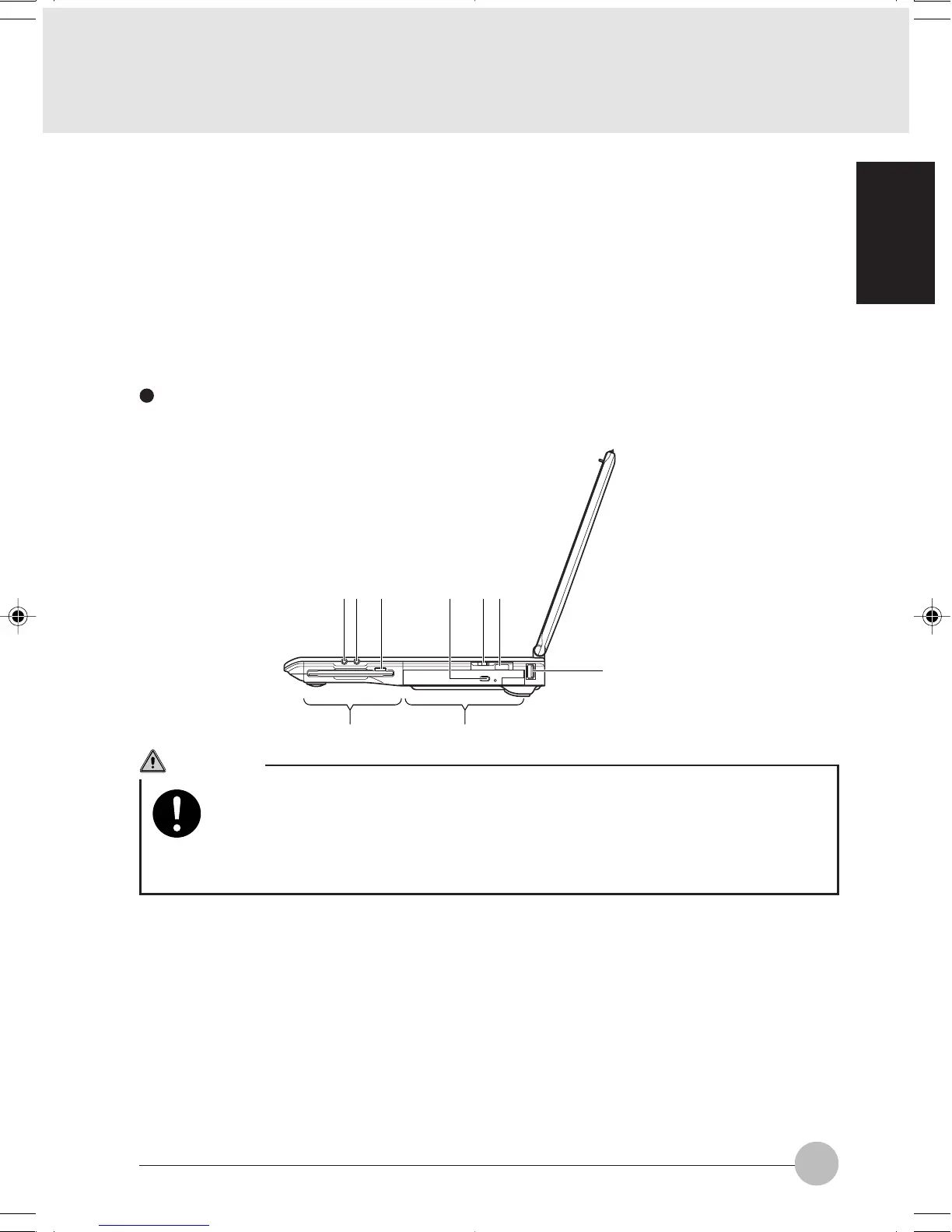

Right View of the Computer
4 5 6
7
