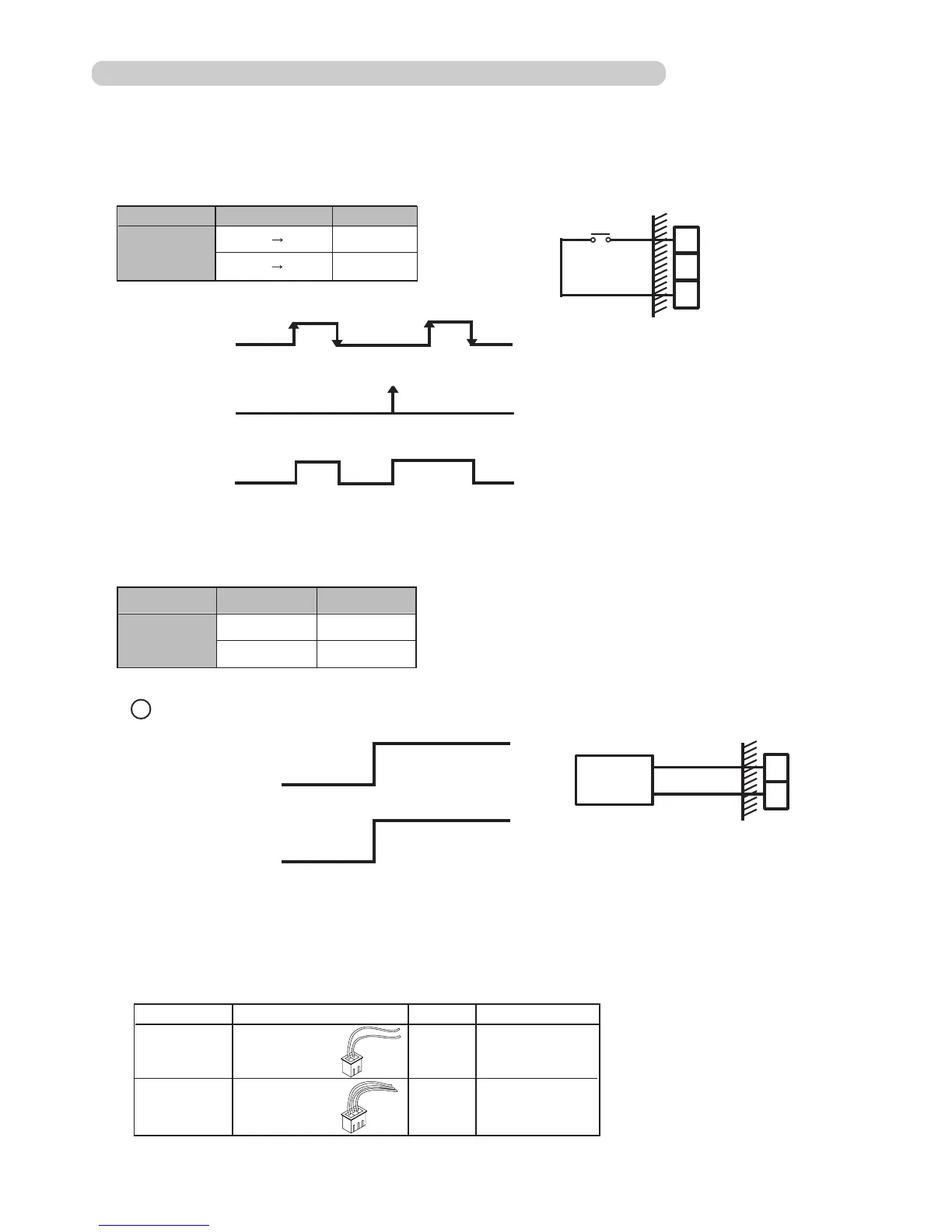

(1) Control input (Operation/Stop)
Indoor unit can be operated or stopped by using the connector CN10(RED) ON indoor unit PCB.
1
CN 10
(RED)
3
Ch 1
Ch1 of
CN10
*1)
On
On
Off
Remote
Controller
Indoor
Unit
NOTE
1. The last command has priority.
2. The wire connection shall be
separate from the power cable line.
Operation
Stop
(2) Output
1 Operation display
CONNECTOR OUT VOLTAGE STATUS
Operation12V
0V Stop
CN11
Operation
Stop
CN 11
Indoor
unit
1
2
CN 11
(WHITE)
+
-
Operation
Indicator
12V
0V
(3) Parts
Following cord (service parts) is required. Please use the parts number shown below
to order the cord from your sales representative.
Name and shapes Q'ty Parts No.
1
1
EXTERNAL
INPUT WIRE
EXTERNAL
INPUT WIRE
9368778002
9368779009
Usage
For output port
For control
input port
2
2-4-2 INDOOR UNIT (COMPACT WALL MOUNTED)
02-30
(WHITE)
INPUT SIGNAL COMMAND
OFF ON
CONNECTOR
CN10
(RED)
ON OFF
Operation
Stop
