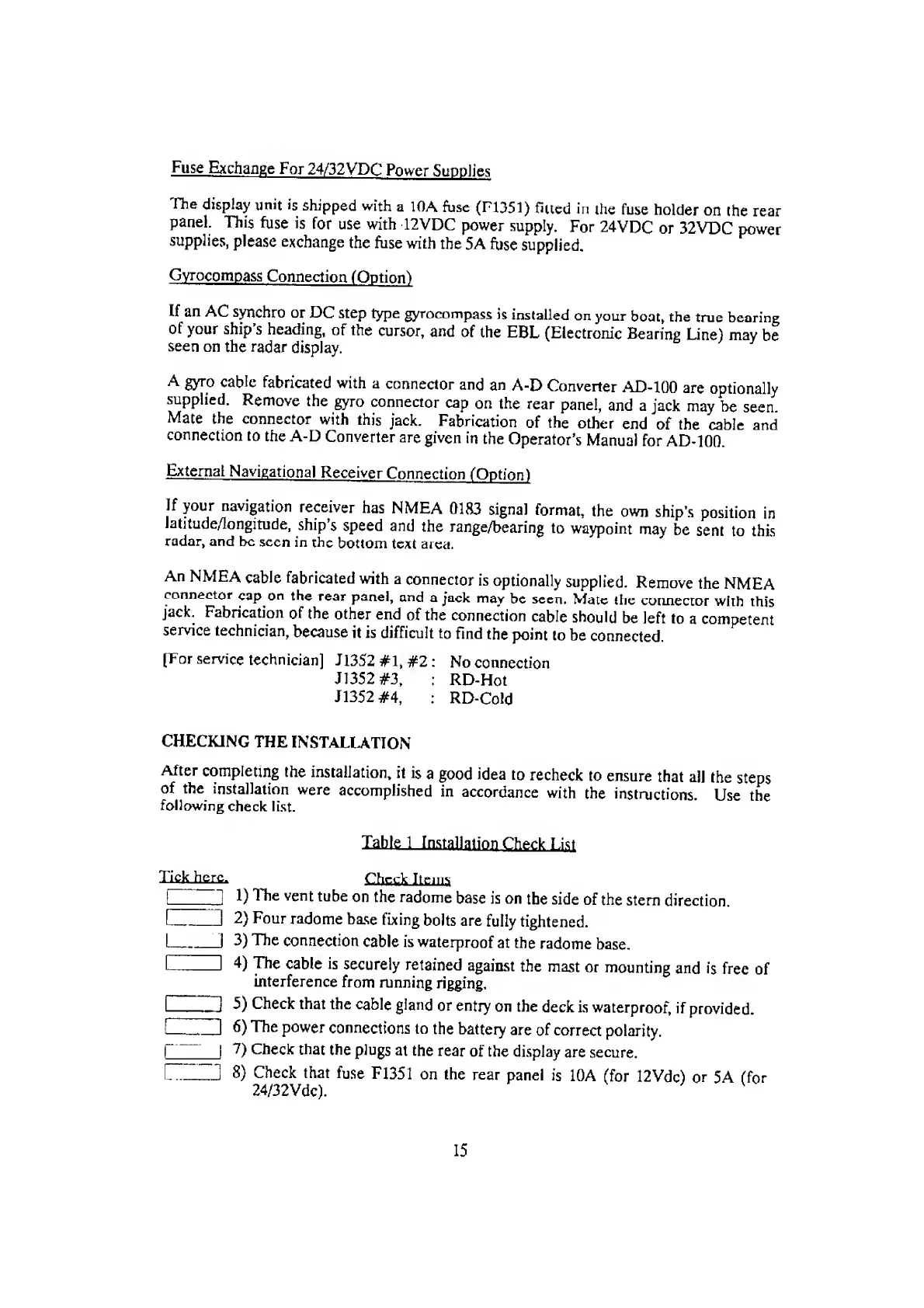

Fuse
Exchange
For
24/32VDC
Power
Supolies
The
display
unit
is
shipped
with
a
lOA
fuse
(F1351)
fiited
in
ihe
fuse
holder
on
the
rear
panel.
This
fuse
is
for
use
with
12VDC
power
supply.
For
24VDC
or
32VDC
power
supplies,
piease
exchange
the
fuse
with
the
5A
fuse
supplied.
Gyrocompass
Connection
('Qption'i
If
an
AC
synchro
or
DC
step
type
gyrocompass
is
installed
on
your
boat,
the
true
bearing
of
your
ship’s
heading,
of
the
cursor,
and
of
the
EBL
(Electronic
Bearing
Line)
may
be
seen
on
the
radar
display.
A
gyro
cable
fabricated
with
a
connector
and
an
A-D
Converter
AD-100
are
optionally
supplied.
Remove
the
gyro
connector
cap
on
the
rear
panel,
and
a
jack
may
be
seen.
Mate
the
connector
with
this
jack.
Fabrication
of
the
other
end
of
the
cable
and
connection
to
the
A-D
Converter
are
given
in
the
Operator’s
Manual
for
AD-100.
Externat
Navigational
Receiver
Connection
(Option)
If
your
navigation
receiver
has
NMEA
0183
signal
format,
the
own
ship’s
position
in
latitude/longitude,
ship’s
speed
and
the
range/bearing
to
waypoint
may
be
sent
to
this
radar,
and
bc
scen
in
the
bottom
tcxt
aica.
An
NMEA
cable
fabricated
with
a
connector
is
optionally
supplied.
Remove
the
NMEA
connector
cap
on
the
rear
panel,
and
a
jack
may
bc
seen.
Mate
the
connector
with
this
jack.
Fabrication
of
the
other
end
of
the
connection
cable
should
be
left
to
a
competent
service
technician,
because
it
is
difficult
to
find
the
point
lo
be
connected.
[For
service
technician]
J1352
#1,
#2
:
No
connection
J1352
#3,
:
RD-Hot
J1352#4,
;
RD-Cold
CHECKING
THE
INSTALLATION
After
completing
the
installation,
it
is
a
good
idea
to
recheck
to
ensure
that
all
the
steps
of
the
installation
were
accomplished
in
accordance
with
the
instructions.
Use
the
following
check
li.st.
lable
1
Installation
Check
list
T
i
ck
hcr
c
.
Check
Items
I
1
1)
"The
vent
tube
on
the
radome
base
is
on
the
side
of
the
stem
direction.
I_I
2)
Four
radome
base
fixing
bolts
are
fully
tightened.
I_I
3)
The
connection
cable
is
waterproof
at
the
radome
base.
I.
I
4)
The
cable
is
securely
retained
against
the
mast
or
mounting
and
is
free
of
interference
from
running
rigging.
I
,
J
3)
Check
that
the
cable
giand
or
entry
on
the
deck
is
waterproof,
if
provided.
I
_
J
6)
The
power
connections
to
the
battery
are
of
correct
polarity.
I
i
7)
Check
that
the
plugs
al
the
rear
of
the
display
are
secure.
8)
Check
that
fuse
F1351
on
the
rear
panel
is
lOA
(for
12Vdc)
or
5A
(for
24/32Vdc).
15
