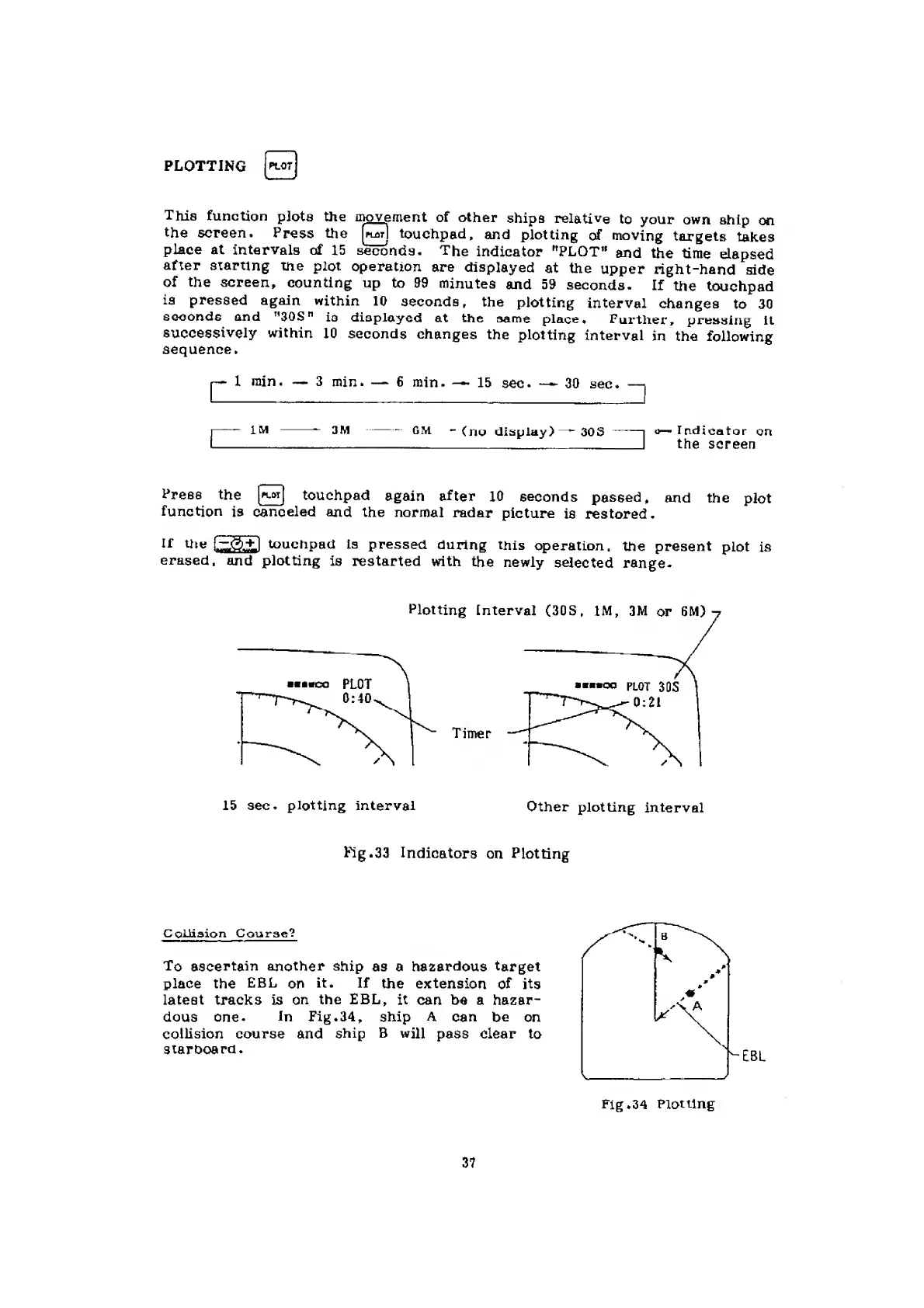

PLOTTING PLOT
This function plots the n røve rnent of other ships relative to your own shlp on
the screen. Press the pust touchpad, and plotting cf moving targets takes
place at intervals of 15 seconds, The indicator "PLOT" and the time elapsed
after starting the plot operation are displayed at the upper right-hand side
of the screen, counting up to 99 minutes and 59 seconds. If the touchpad
is pressed again within 10 seconds, the plotting interval changea to 30
seoonds and "30S" ia diaplayed at the same place. Further, pressing 11
successively within 10 seconds changes the plotting interval in the following
sequence.
Press the ^ touchpad again after 10 seconds passed. and the plot
function is canceled and the normal radar picture is restored.
£0-111 touchpad l3 pressed duiing this operation, the present plot is
erased, and plotting is restarted with the newly selected range-
15 sec. plotting interval Other plotting interval
Pig.33 Indicators on Plotting
CoUiaion Courae?
To ascertain another ship as a hazardous target
place the EBL on it. If the extension of its
latest tracks is on the EBL, it can be a hazar-
dous one. In Pig. 34, ship A can be on
collision course and ship B will pass clear to
starboard.
Fig.34 Plot ting
37
