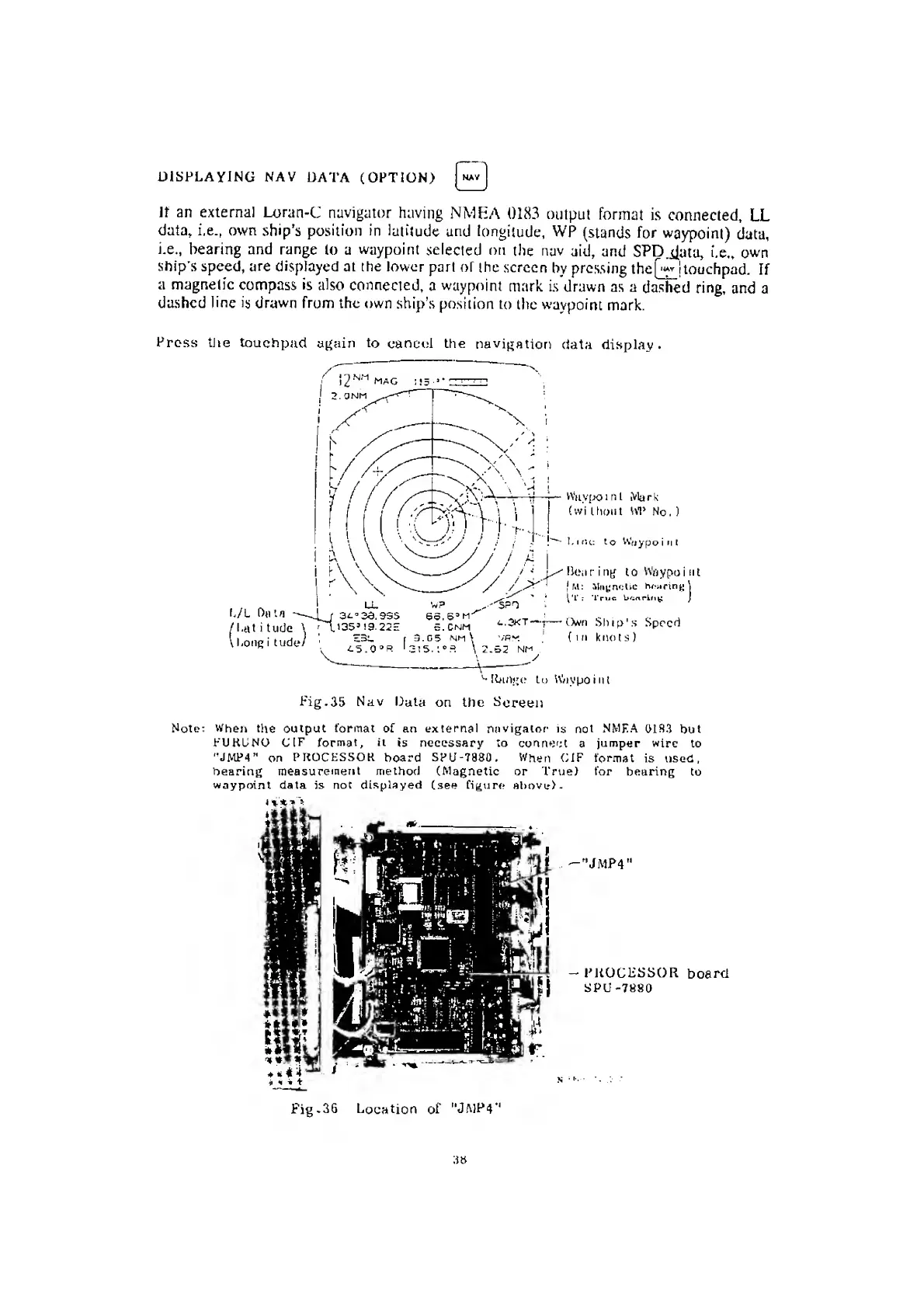

DiyPLAYING NAV DATA (OPTION)
Jt an external Lx}ran-C nuvigator having NMEA 0183 ouipiit format is connected, LL
data, i.e., own ship’s position in lalitude und longilude, WP (stands for waypoint) data,
j.e., bearing and range lo a waypoint selecied on tlie nav aid, and SPD.iJata, i.e., own
ship’s speed, are displayed at the lower part of ihe screen by prcssing theQ^jtouchpad. If
a magnetic compass is also connected, a waypoint mark is drawn as a dasiied ring, and a
da.shcd line is drawn from thc own ship’s position to ihc waypoint mark.
Press tJie touchpad again to canool the navigation data display.
Nole: Wheri the output format of an external navigalor is not NMEA OIS.S bot
PURUNO CIF format, il »s necessary to conneet a jumper wire to
"JMP4" on PROCESSOR board SPU-7880 . When CIF format is oscd,
bearing measureinent melhod (Magnetic or Trvie) for benring to
waypoint data is not displayed (see figure al)Ove>.
Fig.36 Location ot' "JMP4'‘
