3. ADJUSTMENTS
3-11

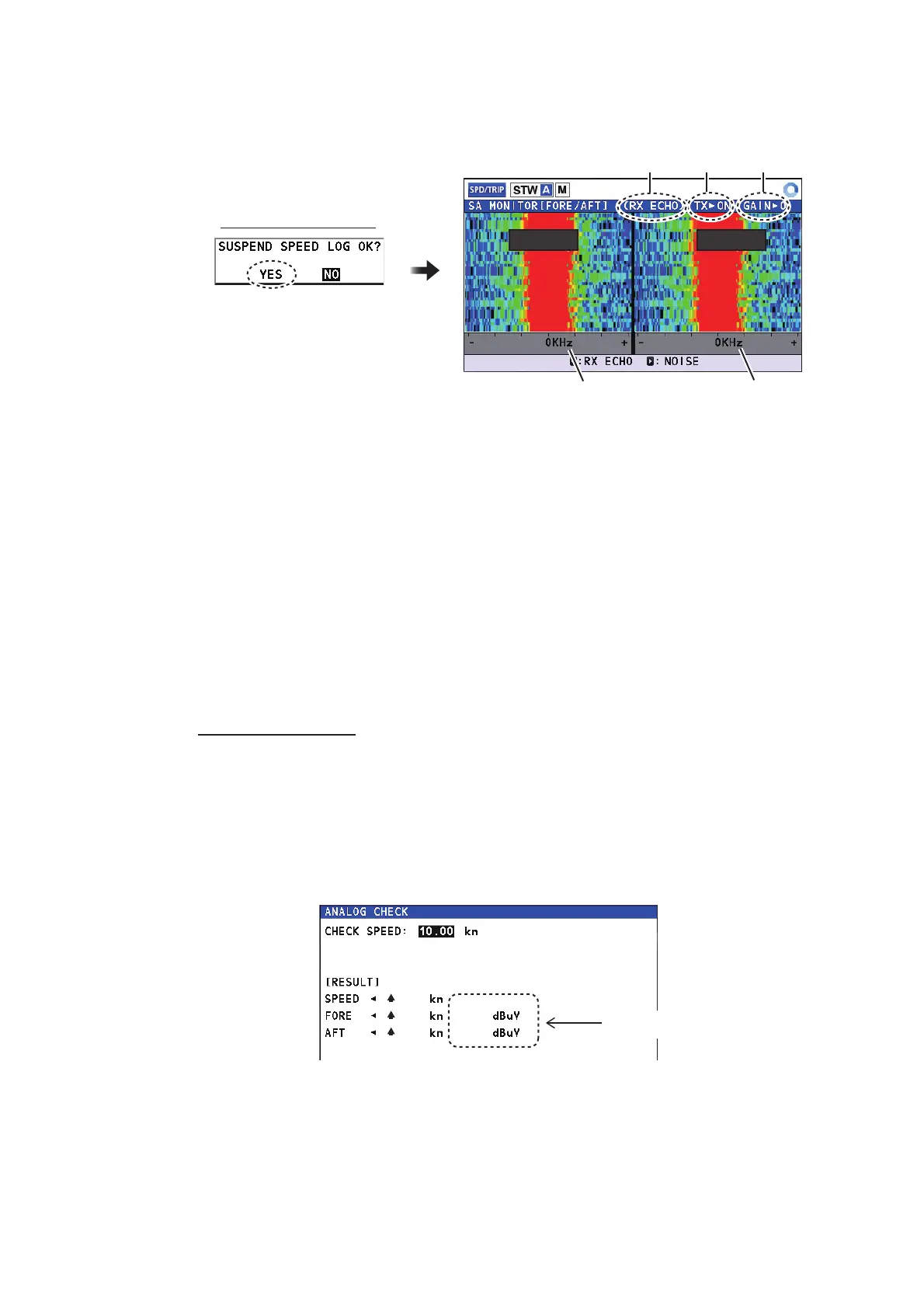

Select [SA MONITOR] then the confirmation massage appears. Select [YES] to show
the [SA MONITOR]. To close the SA monitor, see "< MONITOR MENU >" on page 3-
9.
• Received echo for FORE and AFT: The left half is for FORE data, and the right half
is for AFT data. The echo data is scrolled to the top and the latest data is shown at
the bottom of the each display area.
• Echo mode: Show the echo type transmitted. Press the X key to show echo data
for the speed calculating, and press the W key to show the echo data for noise
check.
• Frequency: The horizontal scale shows the frequency according to the transducer
setting.
• [TX]: The transmission mode which is set on the [MONITOR MENU] is shown. See
"< MONITOR MENU >" on page 3-9 for details.
• [GAIN]: The gain level which is set on the [MONITOR MENU] is shown.
See "< MONITOR MENU >" on page 3-9 for details.
[ANALOG CHECK]
This screen is to check the analog circuit of the transceiver unit. For example, if you
set 10 kn as ship’s speed for test, check that 10 kn is displayed in the [RESULT]. If
there is a discrepancy between this set value and the result, there may be a malfunc-
tion so contact your local dealer.
During displaying the [ANALOG CHECK] display, the ship’s speed is not calculated.
To go to the [MAINTENANCE] window, press the MENU/ESC key.
• [CHECK SPEED]: Set the ship’s speed for test to check the analog circuit. The set-
ting range is [-10.00] to [40.00] kn (default: [10.00] kn).
• [SPEED]: Show the ship’s speed/direction which the transceiver unit outputs. This
value is updated every second. The setting range is [↓ 99.99] to [↑ 99.99] kn. Ship
direction is indicated as follows: [↑] means “Go forward” and [↓] means “Go back-
ward”.
FORE AFT
Frequency
Frequency
Confirmation message
Select [YES].
TX modeEcho mode Gain
10.01
10.02
10.00
102.0
100.0
Signal level
To Next Page
