6. MAINTENANCE, TROUBLESHOOTING
6-11
<SELF TEST>
PROGRAM No. ROM RAM DIP SW
SPU 0359204-04.** OK OK 0000
RFC 0359202-01.** OK OK
KEY 0359203-01.** OK OK
REMOTE1 0359203-01.** OK OK
REMOTE2
CARD 0359209-01.** OK OK 0000
PROCESSOR UNIT MONITOR
-12V -11.6
3.3V 3.3
5V 4.9
12V 11.6
SCANNER MOTOR 20.7
RF UNIT MONITOR
TEMPERATURE 27.3
TUNE IND 1.4
HV 527.9
R. MONITOR 1.6
MAG. CURRENT 1.5
HEATER 1.8
12V 11.9
-12V -11.8
5V 4.8
32V 31.8
TUNE OUT 19.2
TRIGGER FREQ 2273
ANT SPEED 21.6
*.**: Program Version No.
#: Installed card units are shown.
0
0 0 0 0 0
0
0
0
0
0
0
#

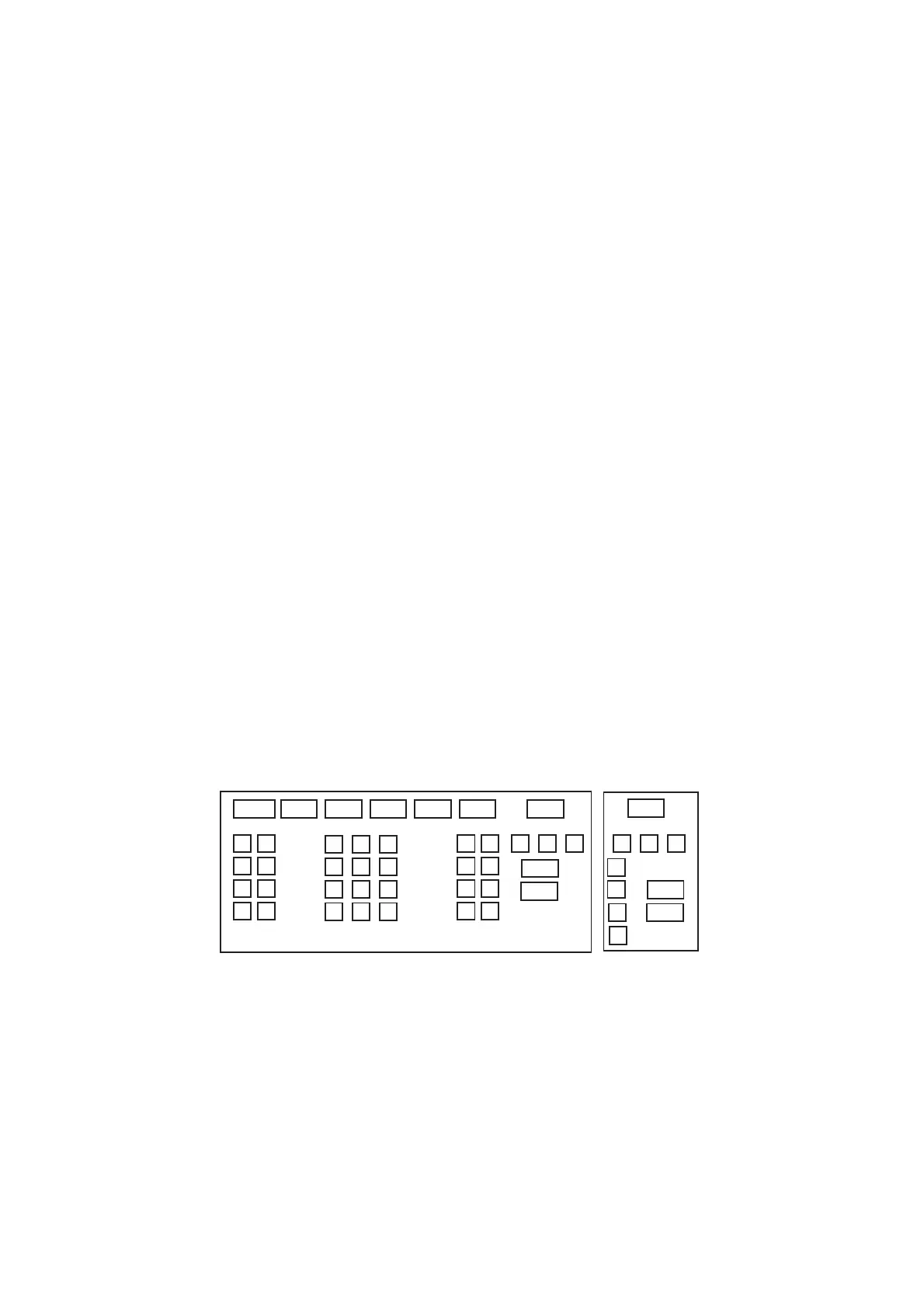

Self test results, keyboard test
6. The small squares and circles displayed at the bottom of screen are for
testing the control and keys on the control unit. As you operate controls and
keys, corresponding squares are highlighted, indicating that your control/key
operations are properly recognized. Numerals indicate the position of the
controls under check.
