4. HOW TO INSTALL OPTIONAL EQUIPMENT
4-4
4.3 Waterproofing Kit OP16-68 (for IC-307)
Note: This kit cannot be used if the IC-307 is mounted face upward.
OP16-68 (Code No.: 001-189-400)
1. Unfasten four screws to remove the cover of IC-307.

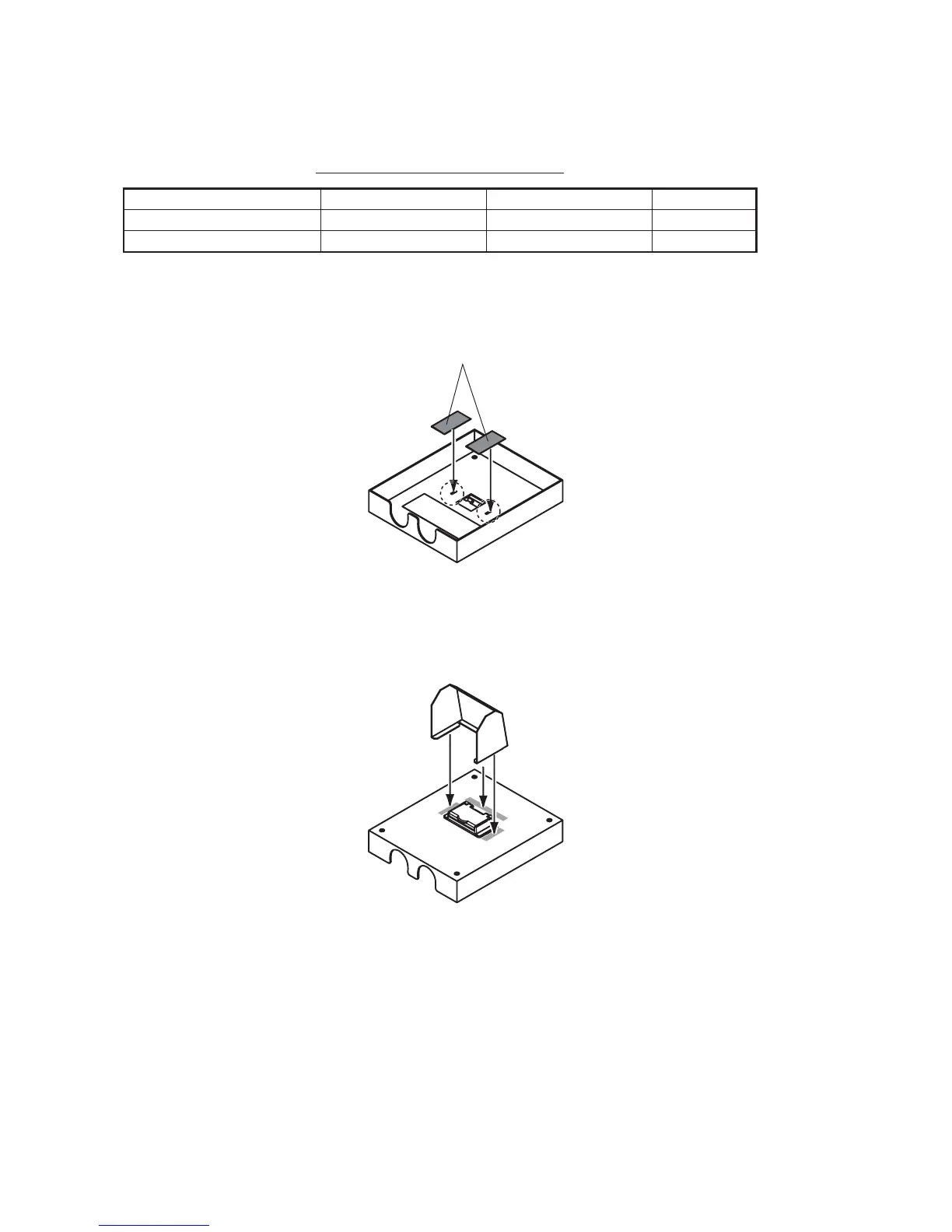

2. Attach supplied fixing tape to the underside of the cover as shown in the illustra-
tion below.
3. Attach the cover.
4. Remove the paper from the waterproofing cover and attach the cover as shown in
the illustration below.
Name Type Code No. Qty
Water proofing Cover 16-023-5501 100-374-950-10 1
Fixing Tape 24-009-1225 100-368-200-10 2
Fixing tape
(IC-307)
To Next Page
