2. CONNECTIONS
2.1 Standard Connection

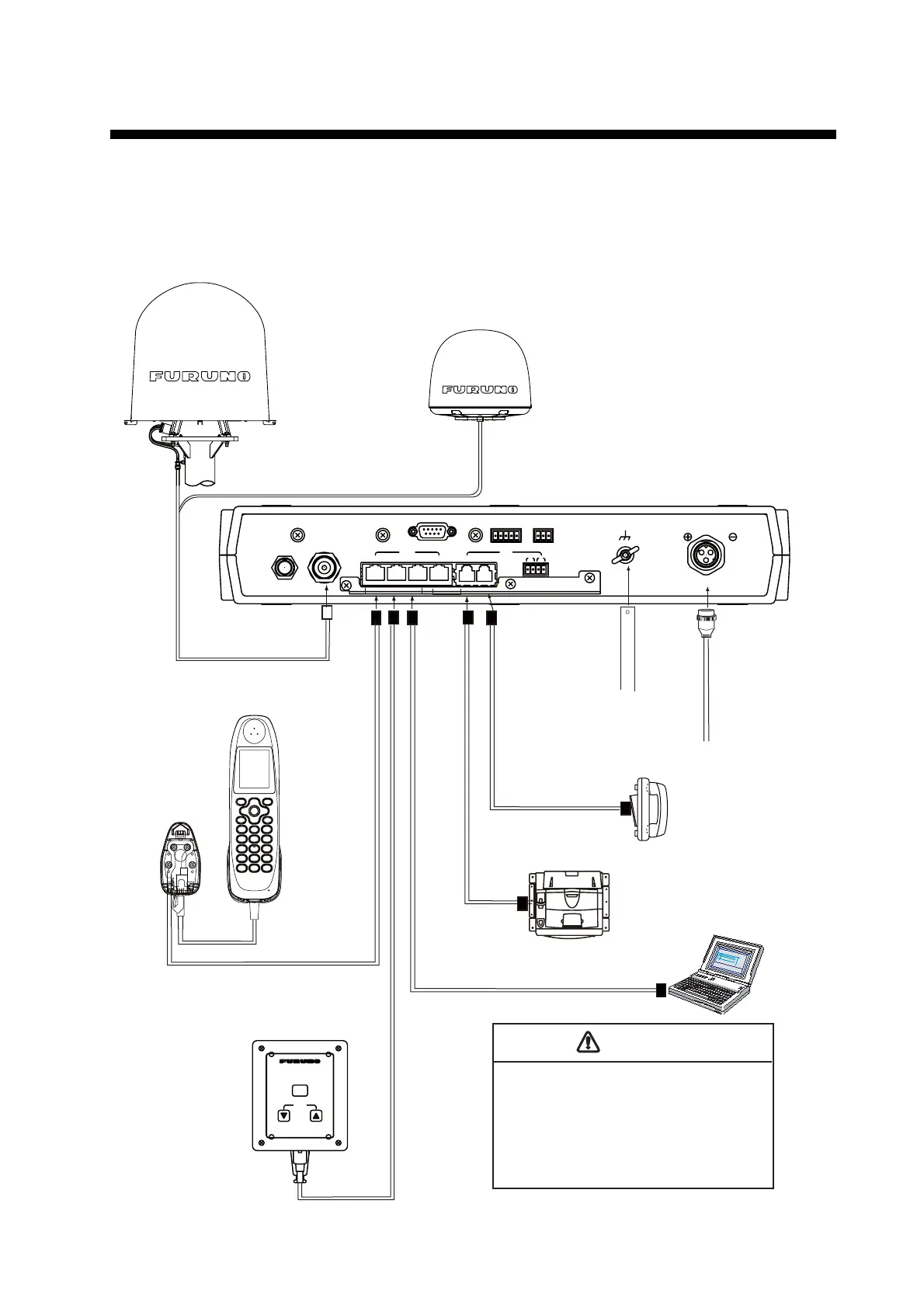

Run and connect cables, refering to the figure below and the interconnection diagram (page S-1).
ALARMNMEARS-232C
LAN
ANT
1234
TEL
12
34
12-24 VDC
12-6A
12
L-BAND OUT
3 GND
Inmarsat FleetBroadband
VOLUME
INCOMING INDICATOR
ACK
FELCOM 500
Antenna unit
FB-1500
Communication unit
FB-2000
IP Handset
FB-8000
Incoming Indicator
FB-3000
Telephone
FC755D1
Facsimile
FAX-2820
Copper
strap
05-003-
0031-0
This unit is shipped with a 15 A fuse fitted
in the power cable, which is for use with
12 VDC ship’s battery.
For 24 VDC power, replace the fuse with
a 7 A fuse and attach the “7A” label
(supplied) to the power cable.
Use of wrong fuse can result in damage
to the equipment.
CAUTION
12-24 VDC
Ship
’ s power
distributor
MJ-A3SPF0018-
050ZC, 5m
8D-FB-CV, 30/40/50 m 12D-SFA-CV, 100 m
FR-FTPC-CY, 10/20/30/50/100 m MOD-Z072, 5 m/2 m/10 m
FR-FTPC-CY
, 10/20/30/50/100 m
MOD-Z072, 2 m/5 m/10 m
MODULAR CABLE
MODULAR CABLE
PC
FR-FTPC-CY, 10/20/30/50/100 m
MOD-Z072, 5 m/2 m/10 m
Bolt or weld
to ship’ hull.
FELCOM 250
Antenna unit
FB-1250
