2.5 Desktop Installation of Communication Unit to-
comply with IPX2 (dripping) standard

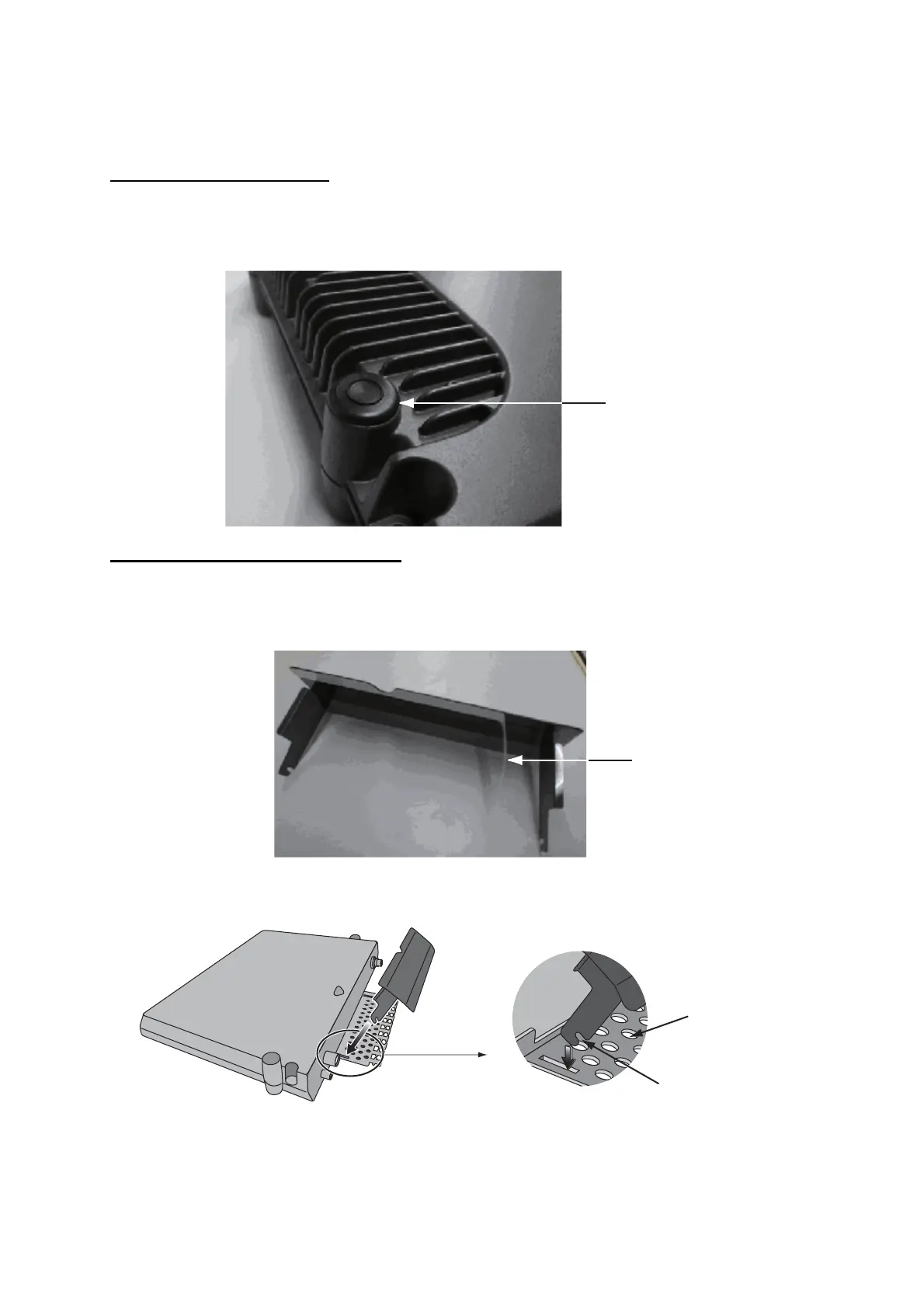

How to inset the grommet
Be sure to install the Communication Unit to a desktop to protect from dripping. After installing,
affix the grommets over the mounting screws.
How to install the connector cover
After connecting the cables, perform the following to affix the connector cover.
1. Peel off the double sided tape (white) from the connector cover.
2. Plug the guide rail of the connector cover into the slots as shown, and pull slightly to hook into
the slot.
Grommet inset
(4 grommets)
Tape
Hook into slot
Cable fixture
Connector cover
guide rail
To Next Page
