Frontmount Installation (Option)

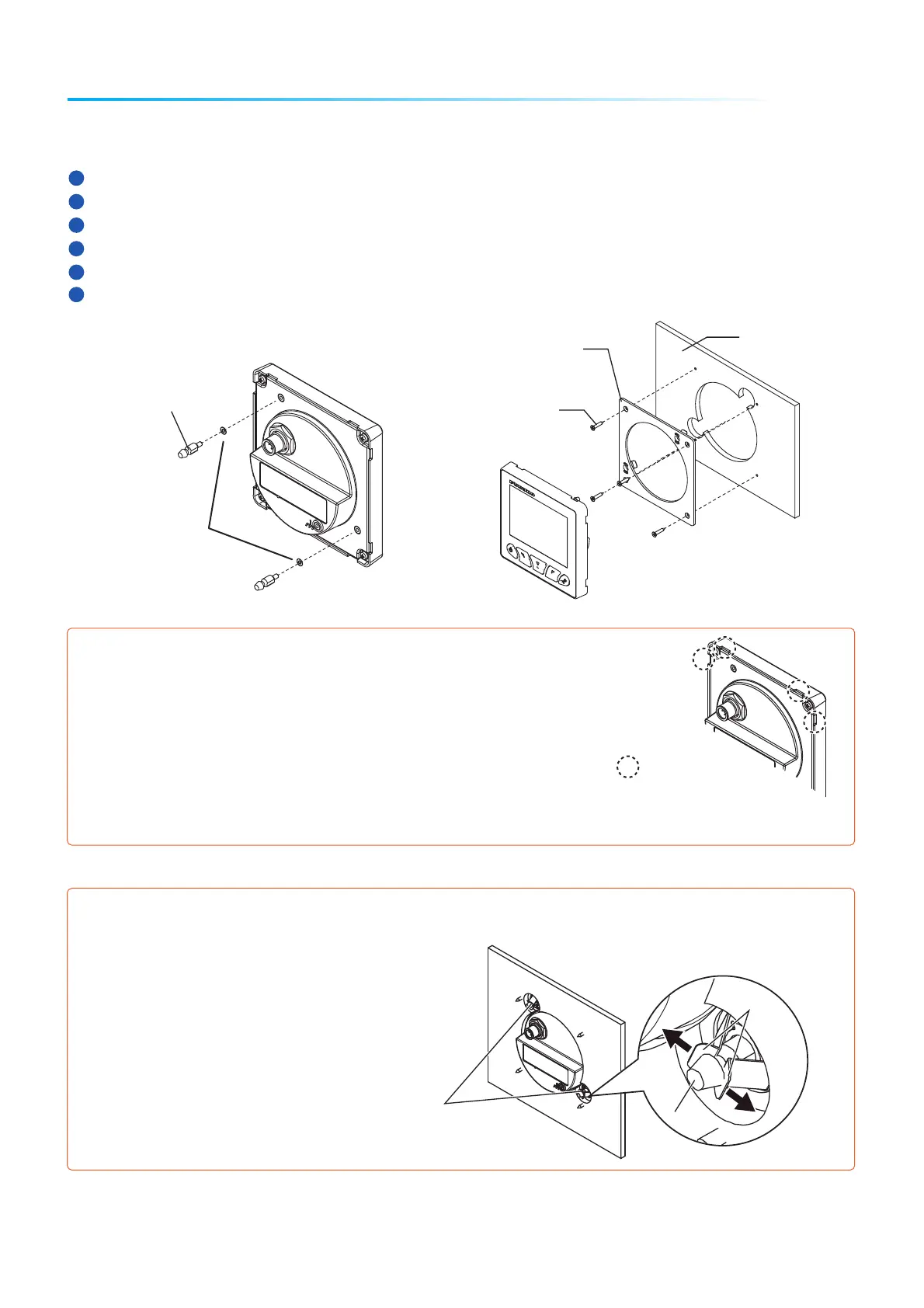

The optional frontmount kit OP26-29 may be used to install the FI-70 where access behind the console is limited.
Using the template supplied with the frontmount kit, cut a hole in the mounting location.
Fit the snap pins (supplied) to the FI-70, as shown in the figure below.
Fit the frontmount panel to the console with four self-tapping screws (supplied).
Referring to page 4, connect and ground the FI-70.
Set the FI-70 into the frontmount panel, using the snap pins and snap pin slots as guides.
Push the FI-70 into the frontmount panel until a “click” sound is made, indicating that the FI-70 is now secure
in the panel.
Snap pin
Self-tapping
screw
Frontmount
panel
Console
Console rear
Snap pin
Pin holders
Release the pin holder
To remove the FI-70 from the frontmount panel,
release the pin holders at the back of the panel,
then remove the FI-70.
Failure to release the pin holders when removing
the FI-70 may damage the FI-70, the pin holders
or the pins.
Removing the FI-70 from the frontmount panelRemoving the FI-70 from the frontmount panel
Preventing water seepage from the mounting holesPreventing water seepage from the mounting holes
1
2
3
4
5
6
Note: Do not fit the flushmount sponge to the FI-70. The unit will not lock into the frontmount panel.
Indicates locking
points for soft cover
Where there is a risk of water seepage behind the unit or through the
screw holes, apply marine sealant around the FI-70 for waterproofing.
Referring to the figure on the right, apply masking tape to the soft
cover locking points to prevent marine sealant from blocking the
locking points.
There are eight locking points in total, four at the top rear of the unit
and four at the bottom rear of the unit.
Marine sealant blocking these locking points will prevent the soft
cover from fitting to the FI-70.
