4.4 How to Adjust the Engine Settings
The number of engines aboard the vessel and which engine number is used as a
display data source are set from the [Engine Setup] menu.
Note: The following settings must be completed in order to display correct engine data
on the FI-70.
1. Access the [System] menu using the procedure outlined on page 4-1.
2. Press the software keys to select [Engine Setup], then press the function key.
3. Press the software keys to select [Number of Engine], then press the function
key.
4. Press the software keys to select the appropriate number of engines aboard the
vessel, then press the function key.
The FI-70 is able to display up to three engines’ data. The [Number of Engine]

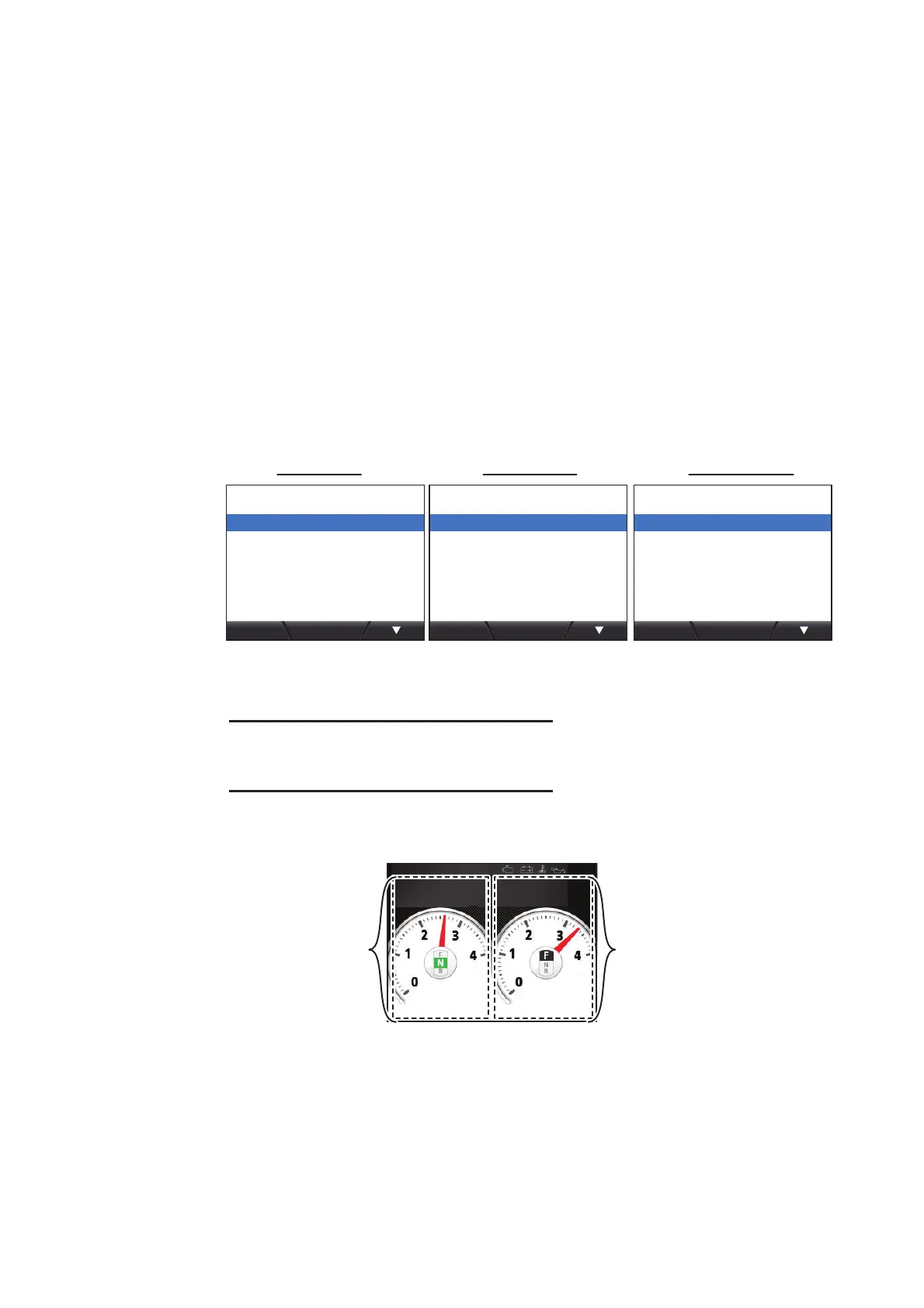

setting also changes the [Engine Setup] menu layout, as shown in the figure
below.
5. Select the engine number to be used as the data source.
Note: Engine number assignment must be done at the engine.
Where [Number of Engine] is set to [1]
[Engine Assign]: Select the engine to use as the data source.
Where [Number of Engine] is set to [2]
[Engine PORT]: Select the engine to use as the port-side data source.
[Engine STBD]: Select the engine to use as the starboard-side data source.
Ent Ent
Ent
Engine Assign: 1
Engine
Engine Alarm
Engine PORT: 1
2
Engine
Engine STBD:
Engine Alarm
Engine PORT: 1
2
3
Engine
Engine STBD:
Engine Center:
Engine Alarm
One engine Two engines Three engines
Two engine display
Eng. Temp. ºF
x1000 x1000
2600 3320
136
°F
-16
°F
Engine selected
at [Engine PORT]
Engine selected
at [Engine STBD]
