2. WIRING
5
2.2 Transducer Cable, Cable for External KP (option)
If the external KP is not to be connected, do only the applicable procedures in section 2.2.1 and
2.2.2.
The KP from an echo sounder or sonar can be connected to this network fish finder to synchronize
transmission between the sounder and this network fish finder. Use the optional Connector Kit for
TX Sync (Type, OP02-86, Code No. 001-205-780) and cable MPYC-4 (or MPYC-2) for the con-
nection. (The MPYC-4 is a Japan Industrial Standard (JIS) cable. If not available locally, see the
Appendix 1 for how to select the equivalent cable.)
Connector kit for TX sync

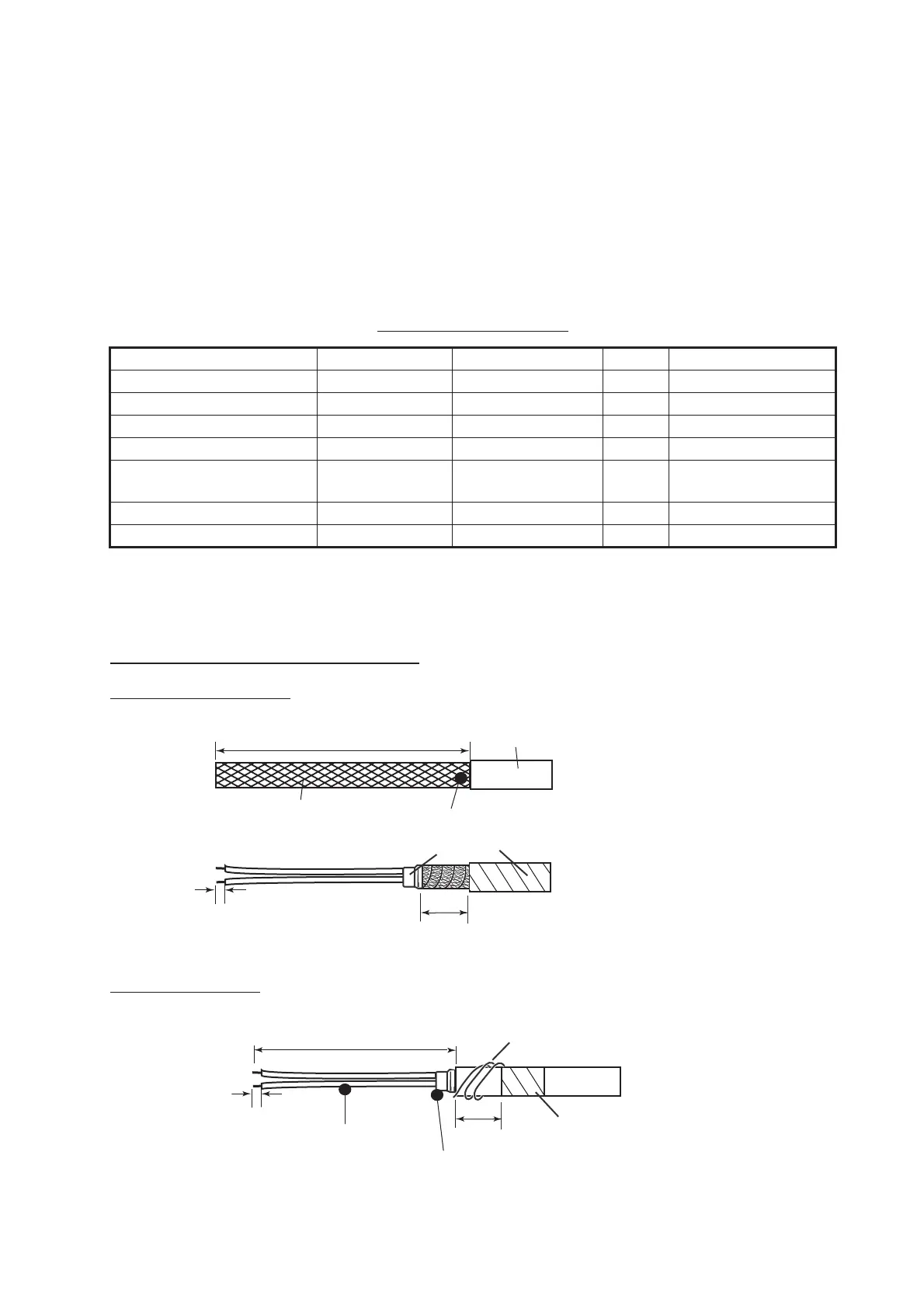

2.2.1 How to prepare the cables
Note: The label on the transducer cable can be removed if it interferes with treatment of the cable.
How to prepare the transducer cable
CM265LH/CM275LH-W
B265LH/B275LH-W
Name Type Code No. Qty Remarks
Upset UI Screw-B M4u20 000-163-756-10 2
Super Gland MGB20M-12B 000-177-248-10 1
PH Connector Assembly 02-1097 (4P) 001-206-000 1
Cable Clamping Plate 02-167-1528 100-379-090-10 1
Rainproof Panel 02-167-1529 100-379-100 1 No use. May be
discarded.
EMI Core GRFC-10 000-177-010-10 1
Crimp-on Lug NCW-1.25 000-157-213-10 4
Braided shield
Taping
Sheath
Extract braided shield and wrap it around sheath.
(This part lies in cable clamp.)
Extract cores from here and cut inclusion.
6
20
Approx. 100
Approx. 100
Vinyl tape (one turn)
㪍
20
Wind shield around cable.
(This part lies in cable clamp.)
Extract cores from here and
cut inner materials.
Put unused wires (3)
in vinyl tubing (local
supply) for insulation.
To Next Page
