3. INITIAL SETTINGS
14
After setting up the transducer at the DFF1-UHD, set the transducer type at the NavNet device.
See respective Installation Manual for the procedure.
Note: DIP Switch S3 is for factory use. Do not change the settings.
3.2 Operation Check

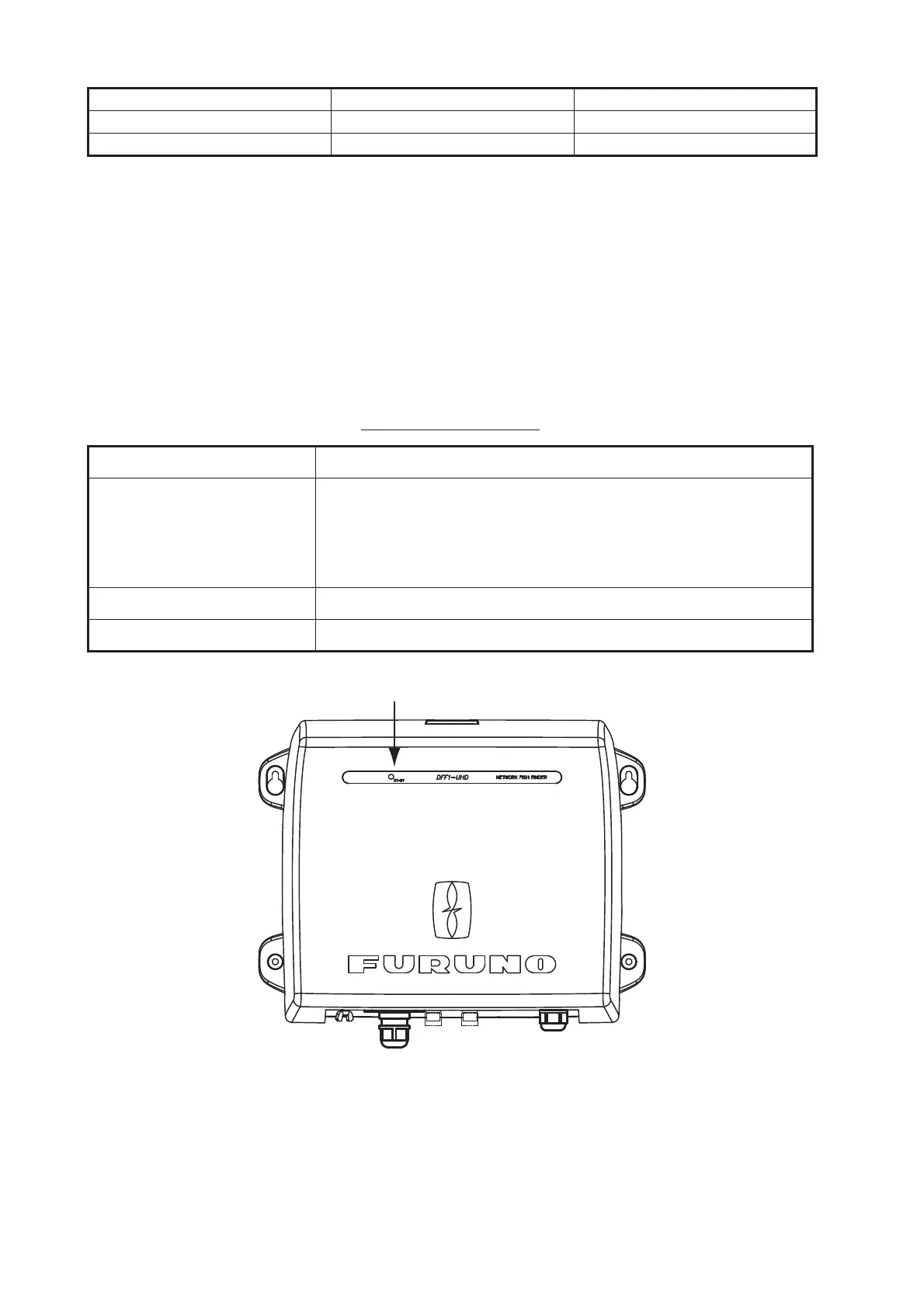

For NavNet TZtouch, the DFF1-UHD is powered on/off from the ship’s switchboard. For NavNet
3D, it is powered on/off from the display unit. The LED on the cover of the DFF1-UHD lights or
blinks according to equipment state, as described in the table below.
LED state and meaning
#2 Host name IP address
OFF ES092002 172.031.092.002
ON ES092003 172.031.092.003
LED state Meaning
Lit continuously • Standby state. (If no signal is received via LAN for more than 10
minutes, the equipment automatically goes into standby to lessen
power consumption.)
• Power on (20 seconds during initialization)
• IP address not set
Blinking every two seconds Normal operation
Blinking every 0.4 seconds Transducer settings at NavNet device not properly set.
LED
To Next Page
