2. WIRING
9

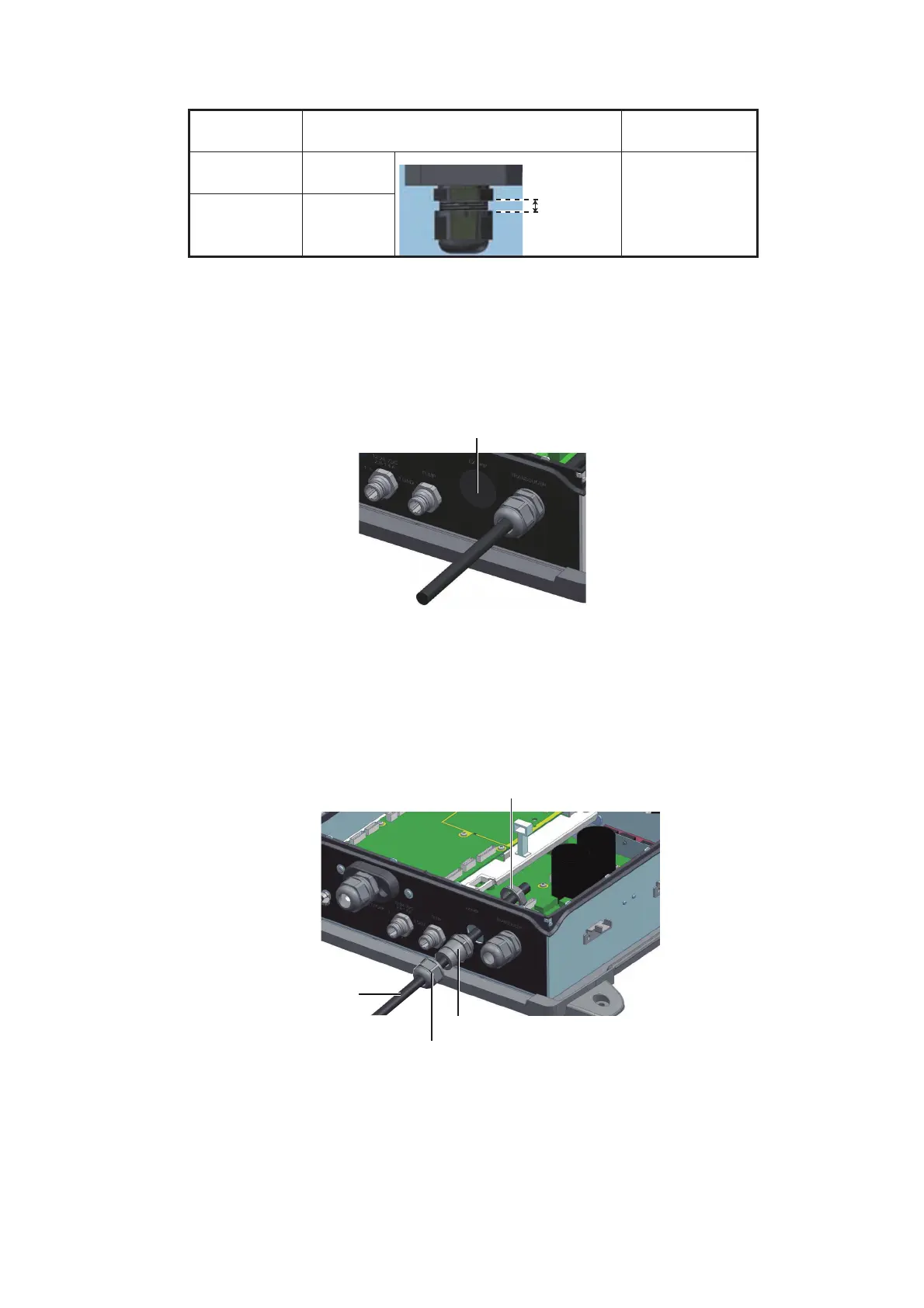

10. Tighten the sealing nut according to the information in the table below.
11. Reattach the shield cover and close the outer cover.
2.2.3 How to connect the cable for the external KP
1. Remove the cover, shield cover. (See step 1 in section 2.2.2 for how to open the cover.)
2. Detach the protective sheet from the location for the external KP.
3. Do the following:
1) Unfasten the sealing nut and lock nut from the supplied super gland. As shown below,
pass the cable through the sealing nut, super gland, hole in the network fish finder and the
lock nut.
2) Prepare the cable end, referring to "How to prepare the cable for the external
KP" on page 6.
Transducer
Clearance between super gland and
sealing nut
Torque
CM265LH/
CM275LH-W
4 mm 1.8 - 2.0 Nm
B265LH/
B275LH-W
2 mm
Clearance
Protective sheet
Lock nut
Super gland
Sealing nut
Cable for
external KP
(MPYC-4)
