1. OPERATIONAL OVERVIEW
7
Note 2: Certain devices or sensors can be manually disabled by turning them off from the
Options menu. See the figure below. The vertical sonar image cannot be disabled; it is
always displayed.
These displays can be
turned on or off.

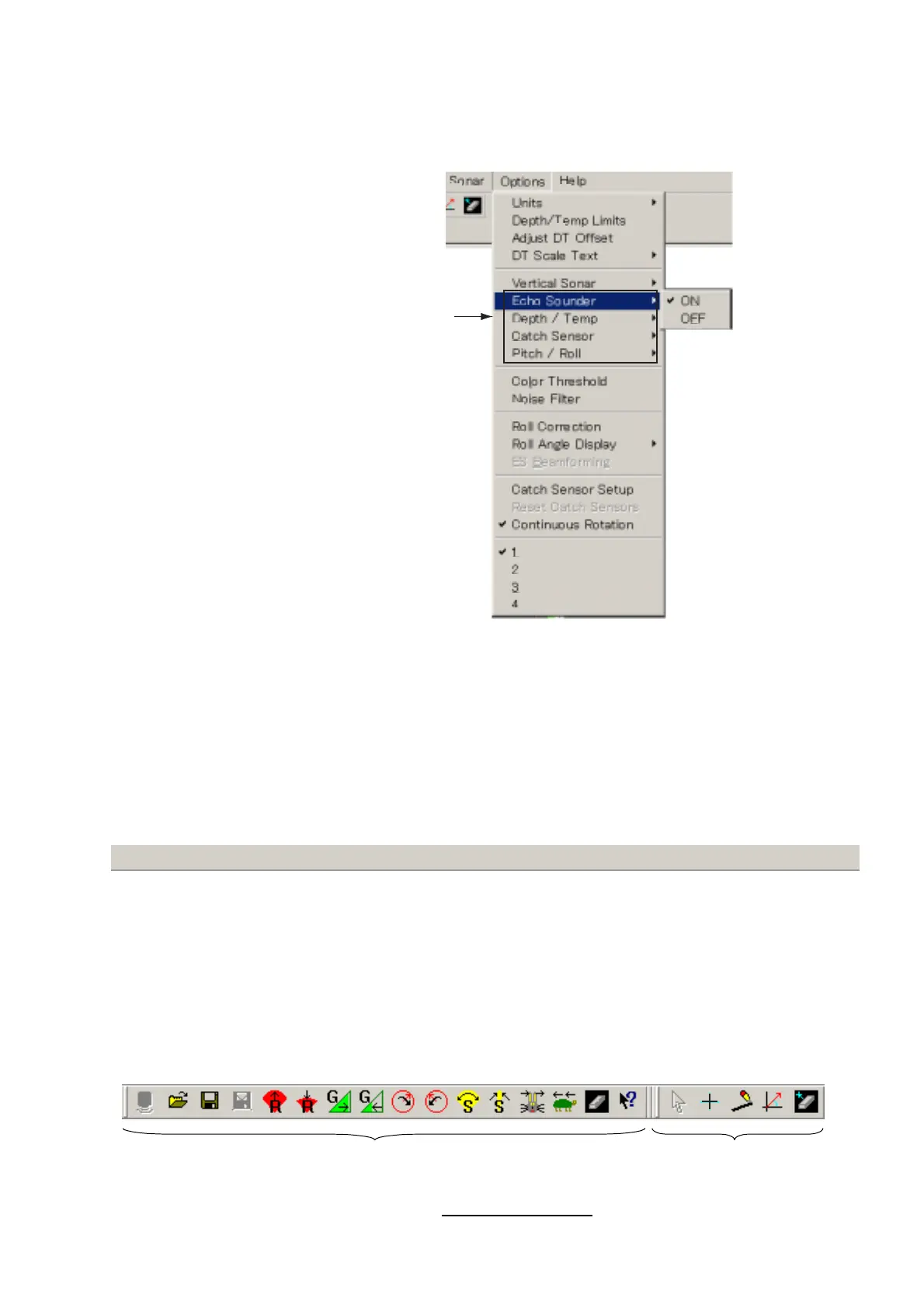

Options menu, Echo Sounder selected
1.5.1 Menu bar
The menu bar is the horizontal strip below the title bar at the top of the screen
and it contains the titles of the TS-331A’s drop-down menus. To open a menu,
sub menu or choose an option, click it with the left mouse button. A sub menu
which has an arrow (►) means it contains an options selection window, such as
the Echo Sounder sub menu shown above.
File View Color Table Grids Draw Mode Communication Diagnostics Sonar Options Help
Menu bar
1.5.2 Toolbars
The main toolbar and the draw toolbar are displayed across the top of the
application window, below the menu bar in the normal display mode. The
toolbars provide quick mouse access to many tools used in TS-331A program.
To hide or display a toolbar, uncheck or check appropriate tool bar on the View
menu.
Main toolbar Draw toolbar
Toolbars
Toolbar description
To Next Page
