1. OPERATIONAL OVERVIEW
9
1.6 Display Indications

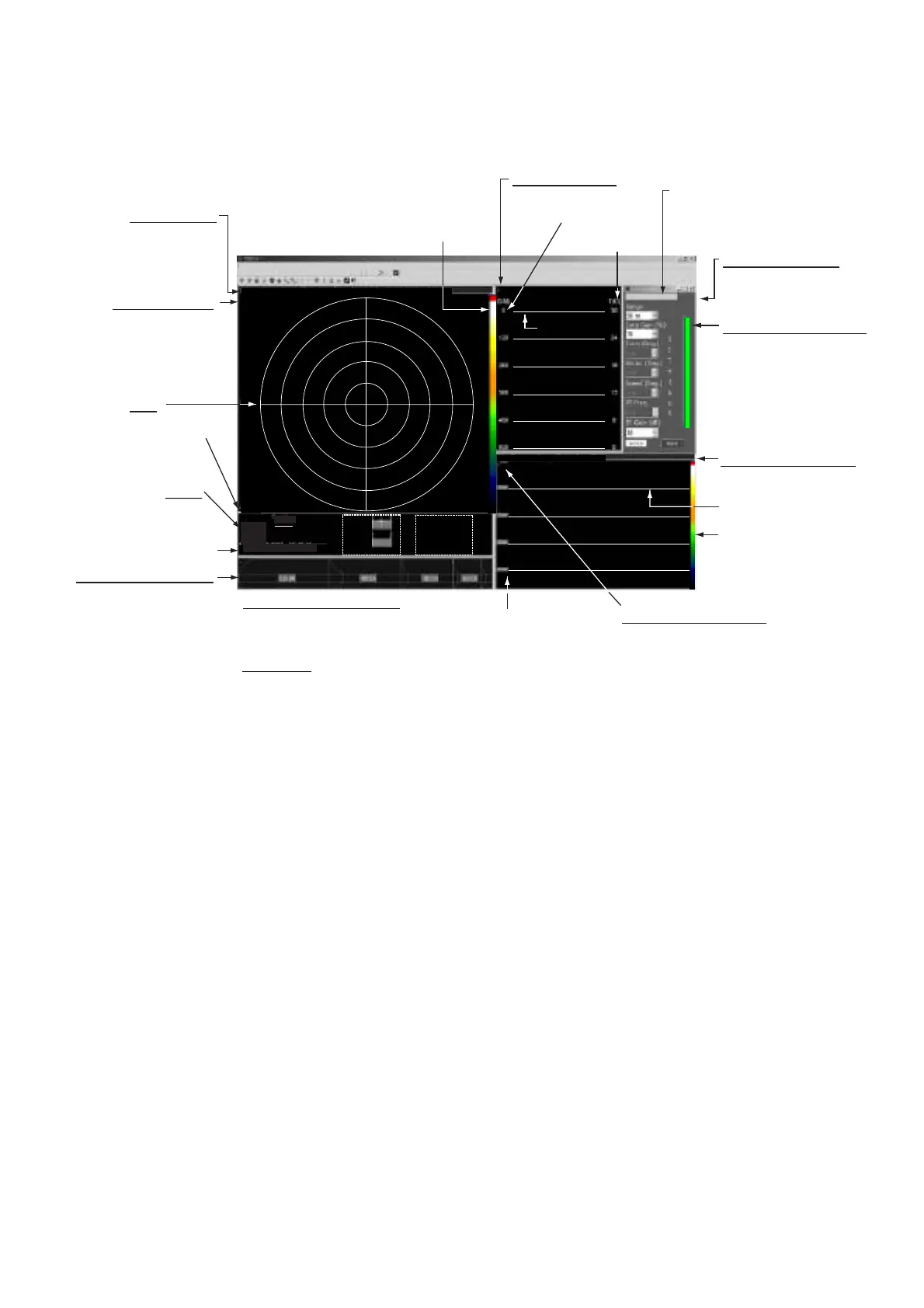

Below are all the indications which appear on the display screen.
2
Ship's Course :
Ship's Speed :
Trawl Direction:
Tr. Water spd :
CE Water spd :
Tr aw l
Pitch: +0.0
Roll : +0.0
Cod End
Pitch:----
Roll :----
Sonar settings
Range, gain,
speed, mode,
frequency
Scale
Depth
Bottom
Traw l
Cod End
Date, Time
*1 Pitch and Roll Indicator
Analog and digital indications
of net attitude at trawl and
cod end.
*2 Nav data
Course, speed, trawl direction,
trawl water speed, cod end
water speed. Requires appropriate
sensors.
*1
*2
Grid
(Circular or
square)
6
3 2 1 1 6 6 1 1 2 3
3
2
1
1
6
1
1
2
3
6M/DIV
Scale
Color
indicator
Echo sounder settings
Range, gain
Depth
scale
Temp.
scale
Settings dialog box
Item not available with
active window is shown
in gray.
Active window indicator
Color changes according
to active window.
Med. blue : Sonar
Green : Depth/temp
Red : Echo sounder
Light blue : Catch sensor
Purple : Pitch/roll
Catch sensor indicator
Time figure is how long
since sensor has
been activated.
Color inside each
section changes with
catch sensor status.
Triggered: Red
Standby: Yellow
Sleep: Bkgd color
DateTime 24-SEP-04 1:23:01
Depth
Bottom:
Trawl:
CodEnd:
Vertical
*
Asterisk(blinking)
Green: Receiving
signal from under-
water unit
Red: No signal
*
*
Asterisk(blinking)
Green: Receiving signal
from echo sounder
Red: No signal
Asterisk(blinking)
Blinks when depth/water
temp. data is received.
FURUNO logo
appears here.
Color
indicator
Grid
Grid
File View Color Table Grids Draw Mode Communication Diagnostics Sonar Options Help
Sonar settings: Range: 30 M, Gain: 70%, Speed: 03', Mode: Sector, Freq: High
Echo Sounder: Range: 50 M, Gain:10 dB
Indications
