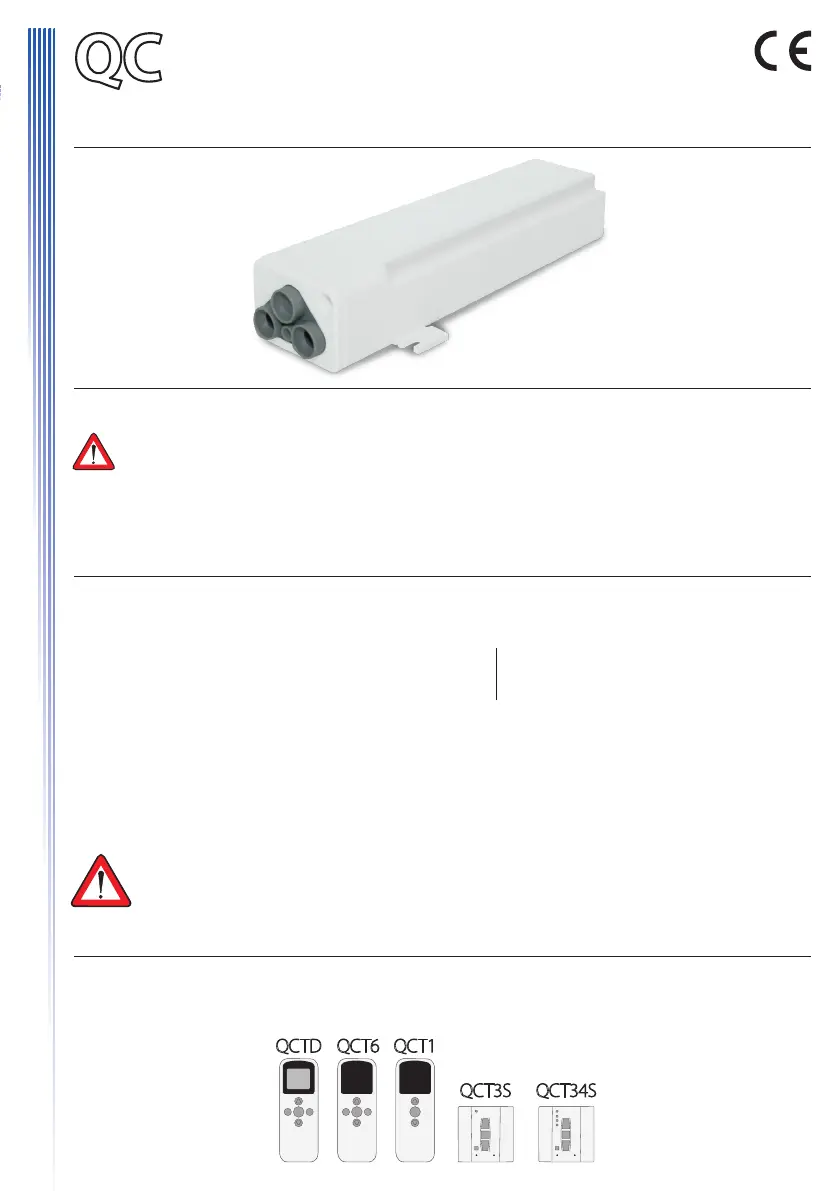

GAPOSA QC09 User Manual

5
IMPORTANT: READ CAREFULLY THESE INSTRUCTIONS
- In case of doubts about the installation, contact a qualied technician
- Disconnect supply during installation or whatever maintenance on the control
QC09 control unit for shutters and awnings is provided with a redio receiver (434,15MHz) and a
facility for a pushbutton and a wind sensor. It is in a water resistant box with an internal antenna.
TECHNICAL DATA
Power supply 230VAC 50-60Hz Dimensions 133X35X25mm
Max. motor power 500W Weight 100g
Frequency 434,15 MHz IP 55
The receiver can record up to 31 dierent codes to identify as many transmitters.
The shutter/awning is controlled by a transmitter and/or an external standard switch (normally
open). You can also install a wind sensor QCWS/QCWSRI/QCWSSRI (option) which closes the
awning automatically in case of strong wind.
The transmitter has a range of 20 mt. indoor and 100 m. outdoor.
Max. distance between wind sensor and QC09 is 30 m.
ATTENTION: If you install several QC09 in the same room, during the rst
installation you will have to supply and set each unit at a time in order to avoid
any interference (loss of programming or rotation inversion).
COMPATIBLE
TRANSMITTERS
Remote Control Unit for shutters and awnings
QC09
QCTD QCT6 QCT1
QCT3S QCT34S
