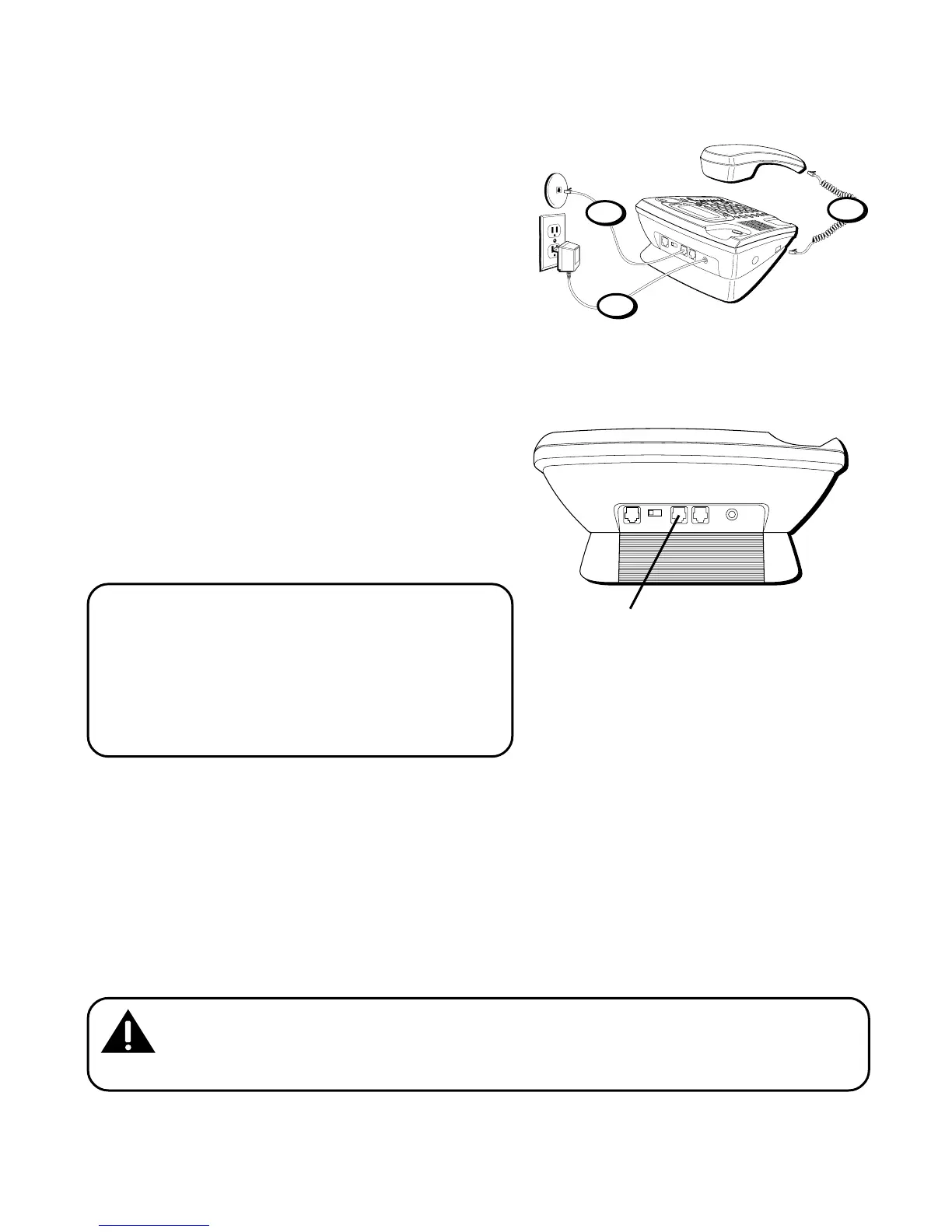

DESKTOP INSTALLATION
Two Lines on a Single Modular Jack
1. Plug one end of the handset cord into
the handset and the other end into the
jack on the side of the base. Place the
handset in the base.
2. Plug the power supply cord into the
POWER 6V AC jack on the base and
into an AC outlet.
3. Plug the gray telephone line cord into
the LINE 1+2 jack on the base and into
a dual line modular jack. For single
line use, See “A Single Line on a
Modular Jack“.
NOTE : The phone automatically
defaults to touch-tone dialing. To change
to pulse (rotary) dialing, see “Tone/
Pulse Dialing.” If you don’t know which
type of service you have, check with the
phone company.
3
2
LINE 1+2 LINE 2DATA PORT
DATA PORT
2 1
POWER
6V AC
LINE 1+2 jack
CAUTION: Use only the ATLINKS USA 5-2495 power supply that is
compatible with this unit. Using other power supplies may damage the
unit.
1
