13

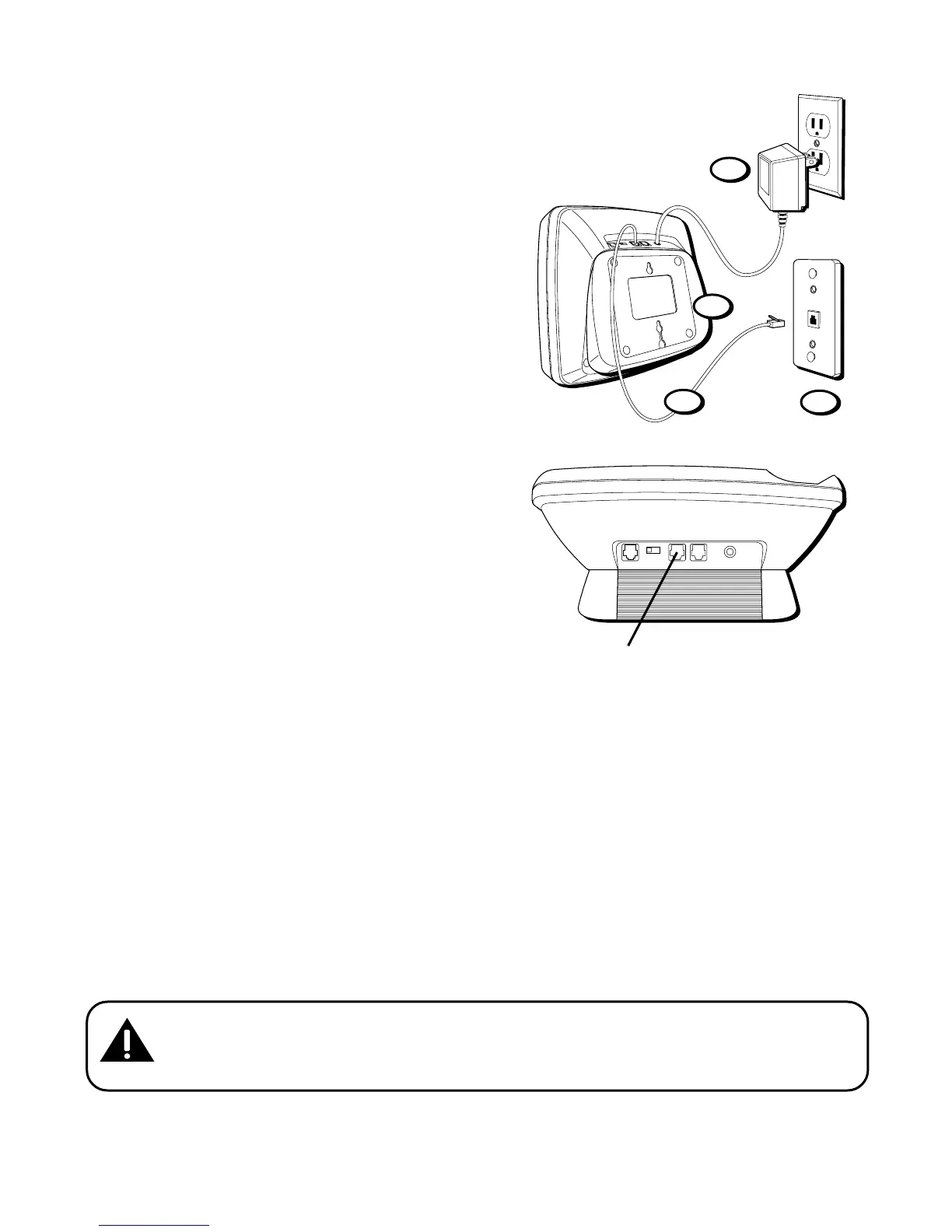

WALL MOUNT INSTALLATION
Two Lines on a Single Modular Jack
1. Remove the mounting bracket. Rotate
it so that the bottom of the phone is
flat. Reattach the wall mount bracket
by inserting the tabs into the slots on
the top of the unit first, and then
snapping the bottom tabs into place.
2. Plug the power supply cord into the
POWER 6V AC jack on the base and
into an AC outlet.
3. Plug the gray telephone line cord into
the jack marked LINE 1+2 on the back
of the unit and plug the other end into
a dual line modular wall jack. For
single line use, See “A Single Line on
a Modular Jack”.
1
2
3
4
LINE 1+2 LINE 2DATA PORT
DATA PORT
2 1
POWER
6V AC
LINE 1+2 jack
CAUTION: Use only the ATLINKS USA 5-2495 power supply that is
compatible with this unit. Using other power supplies may damage the
unit.
