GE AF-300 P11 User Manual

13-2
Data subject to change without notice 7/07. © 2007 GE Drives
Name Digital I/O interface card
Type OPCG11SDIO
Function 4 digital inputs: Binary code input of max. 16 bits or BCD input (Sink/Source changeable)
3 digital outputs: Binary code output of max. 8 bits.
Input Digital signal input (4 points) by short-circuiting terminals L1, L16 and M1
<Sink>
ON operation current: 4.5mA max.
OFF operation voltage: 27V max.
<Source>
ON operation current: 4.5mA max.
OFF operation voltage: 27V max.
Related function code: o19, o20
Output Digital signal output (3 points) by short-circuiting terminals between O1 to O6, and M2
<Sink>
ON operation current: 50mA max.
OFF operation voltage: 27V max.
<Source>
ON operation current: -50mA max.
OFF operation voltage: 27V max.
Related function code: o21
Power Source +24 VDC (3.2mA x 4 + 12.8mA)

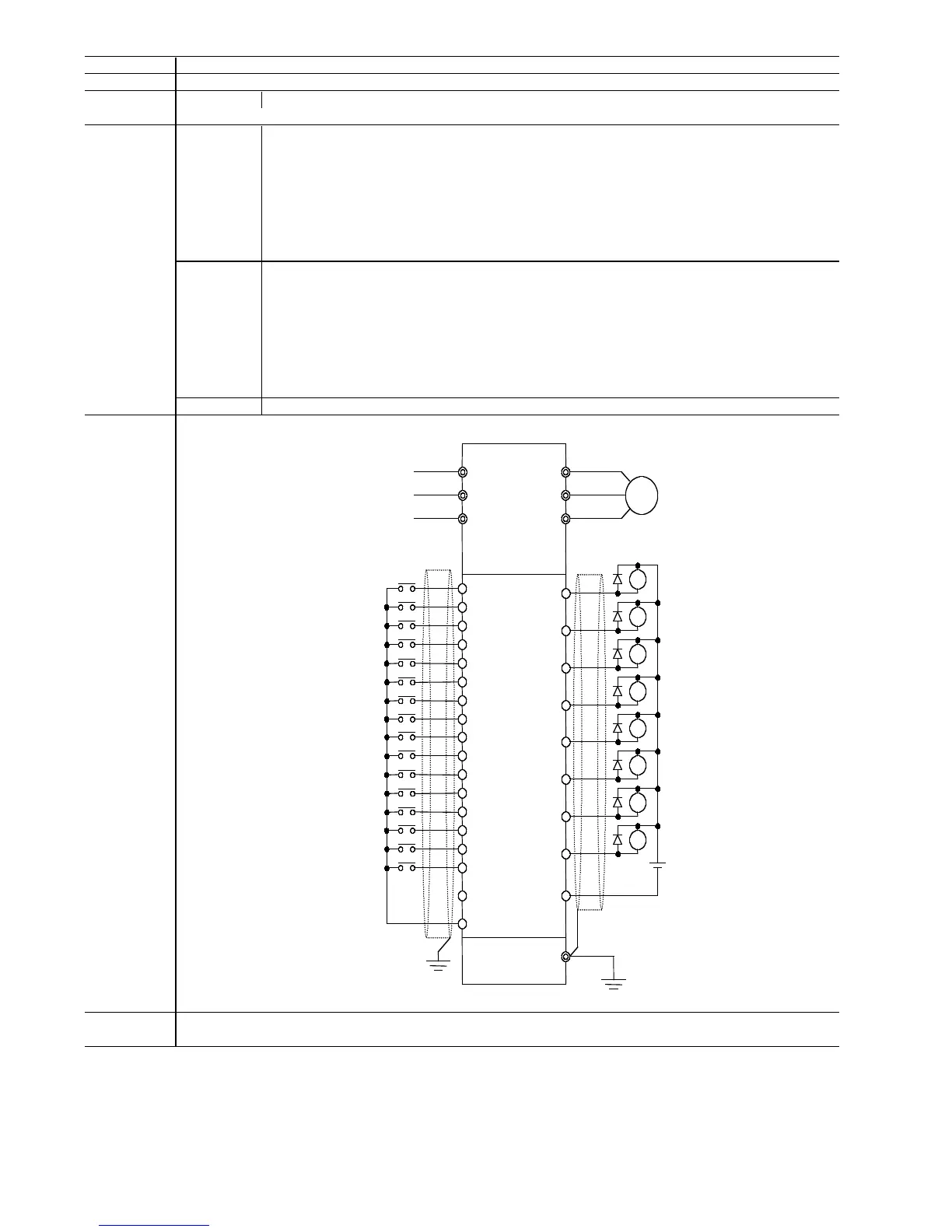

Connection
diagram
Remarks
Specifications
L1/R
L2/S
L3/T
U
V
W
I16
I15
I14
I13
I12
I11
I10
I9
I8
I7
I6
I5
I4
I3
I2
I1(LSB)
M1
O8(MSB)
O7
O6
O5
O4
O3
O2
O1(LSB)
Ry
Ry
Ry
Ry
Ry
Ry
Ry
Ry
M2
CM
AF-300 P11OPC-P11S-DIO
Sink
G
M
