GE AMX-II User Manual

GENERAL ELECTRIC MEDICAL SYSTEMS AMX-II X-RAY UNIT
7-1576 SM A0654E

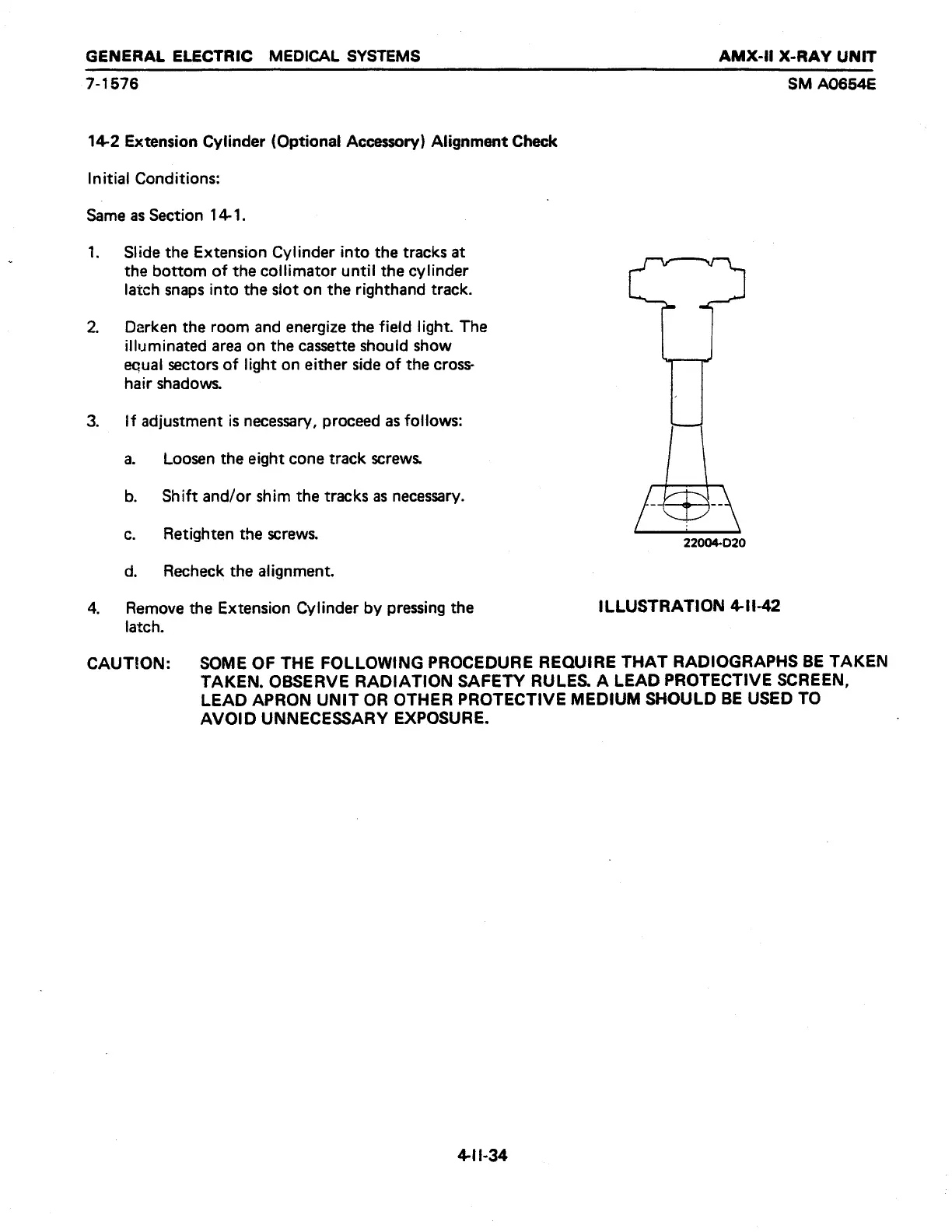

14-2 Extension Cylinder (Optional Accessory) Alignment Check
Initial Conditions:
Same as Section 14-1.
1. Slide the Extension Cylinder into the tracks at
the bottom of the collimator until the cylinder
latch snaps into the slot on the righthand track.
2. Darken the room and energize the field light. The
illuminated area on the cassette should show
ecual sectors of light on either side of the cross-
hair shadows.
3. If adjustment is necessary, proceed as follows:
a. Loosen the eight cone track screws.
b. Shift and/or shim the tracks as necessary. CS
| ン
ο. Retighten the screws. 22004020
d. Recheck the alignment.
4. Remove the Extension Cylinder by pressing the ILLUSTRATION 4-11-42
latch.
CAUTION: SOME OF THE FOLLOWING PROCEDURE REQUIRE THAT RADIOGRAPHS BE TAKEN
TAKEN. OBSERVE RADIATION SAFETY RULES. A LEAD PROTECTIVE SCREEN,
LEAD APRON UNIT OR OTHER PROTECTIVE MEDIUM SHOULD BE USED TO
AVOID UNNECESSARY EXPOSURE.
