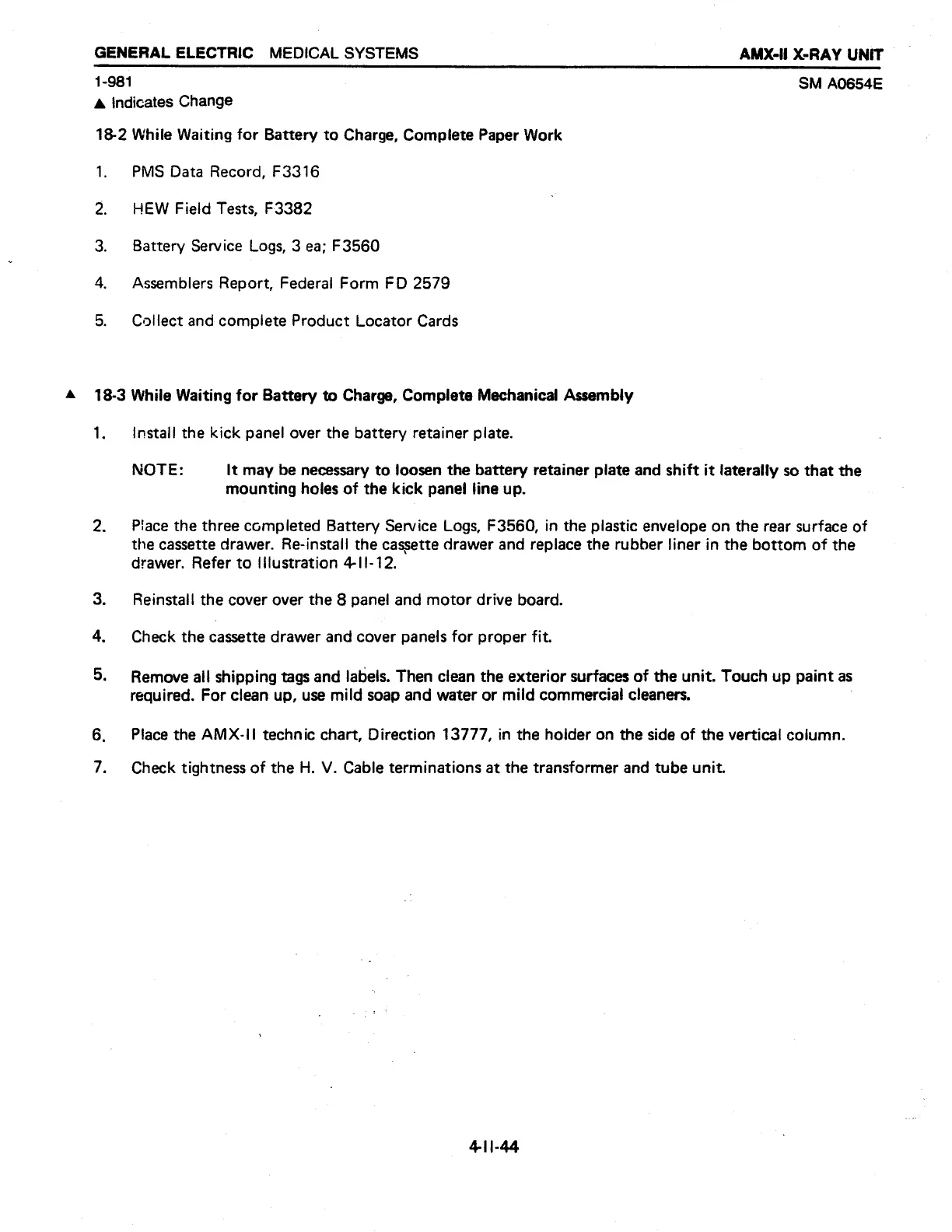

GENERAL ELECTRIC MEDICAL SYSTEMS AMX-ll X-RAY UNIT
1-981 SM A0654E
A Indicates Change
18-2 While Waiting for Battery to Charge, Complete Paper Work
1.
2.
PMS Data Record, F3316
HEW Field Tests, F3382
Battery Service Logs, 3 ea; F3560
Assemblers Report, Federai Form FD 2579
Collect and complete Product Locator Cards
18-3 While Waiting for Battery to Charge, Complete Mechanical Assembly
1.
Install the kick panel over the battery retainer plate.
NOTE: It may be necessary to loosen the battery retainer plate and shift it laterally so that the
mounting holes of the kick panel line up.
Place the three completed Battery Service Logs, F3560, in the plastic envelope on the rear surface of
the cassette drawer. Re-install the cassette drawer and replace the rubber liner in the bottom of the
drawer. Refer to Illustration 4-I!-12.
Reinstall the cover over the 8 panel and motor drive board.
Check the cassette drawer and cover panels for proper fit.
Remove all shipping tags and labels. Then clean the exterior surfaces of the unit. Touch up paint as
required. For clean up, use mild soap and water or mild commercial cleaners.
Place the AMX-11 technic chart, Direction 13777, in the holder on the side of the vertical column.
Check tightness of the H. V. Cable terminations at the transformer and tube unit.
4-11-44
