Functional and electrical safety checks: Electrical safety tests
2000966-542D Dash 3000/4000/5000 8-9
If measured reading is greater than the appropriate specification below,
the device under test fails. Contact GE Technical Support.
Acceptance criteria NC (Normal condition)
(USA only) 300 µA, and the device under test is powered from
100-120 V/50-60 Hz
(USA only) 300 µA, and the device under test is powered from a
center-tapped 200-240 V/50-60 Hz, single phase circuit (UL Split
Phase Exemption)
500 µA, and the device under test is powered from a non-center-
tapped, 200-240 V/50-60 Hz, single-phase circuit
Acceptance criteria SFC (Single fault condition) – ground (earth), line or neutral
open
(USA only) 300 µA, and the device under test is powered from
100-120 V/ 50-60 Hz
(USA only) 300 µA, and the device under test is powered from a
center-tapped 200-240 V/50-60 Hz, single phase circuit (UL Split
Phase Exemption)
1000 µA, and the device under test is powered from a non-center-
tapped, 200-240V/50-60 Hz, single-phase circuit.
NOTE
Center-tapped and non-center-tapped supply circuits produce
different leakage currents and the UL and IEC limits are different.

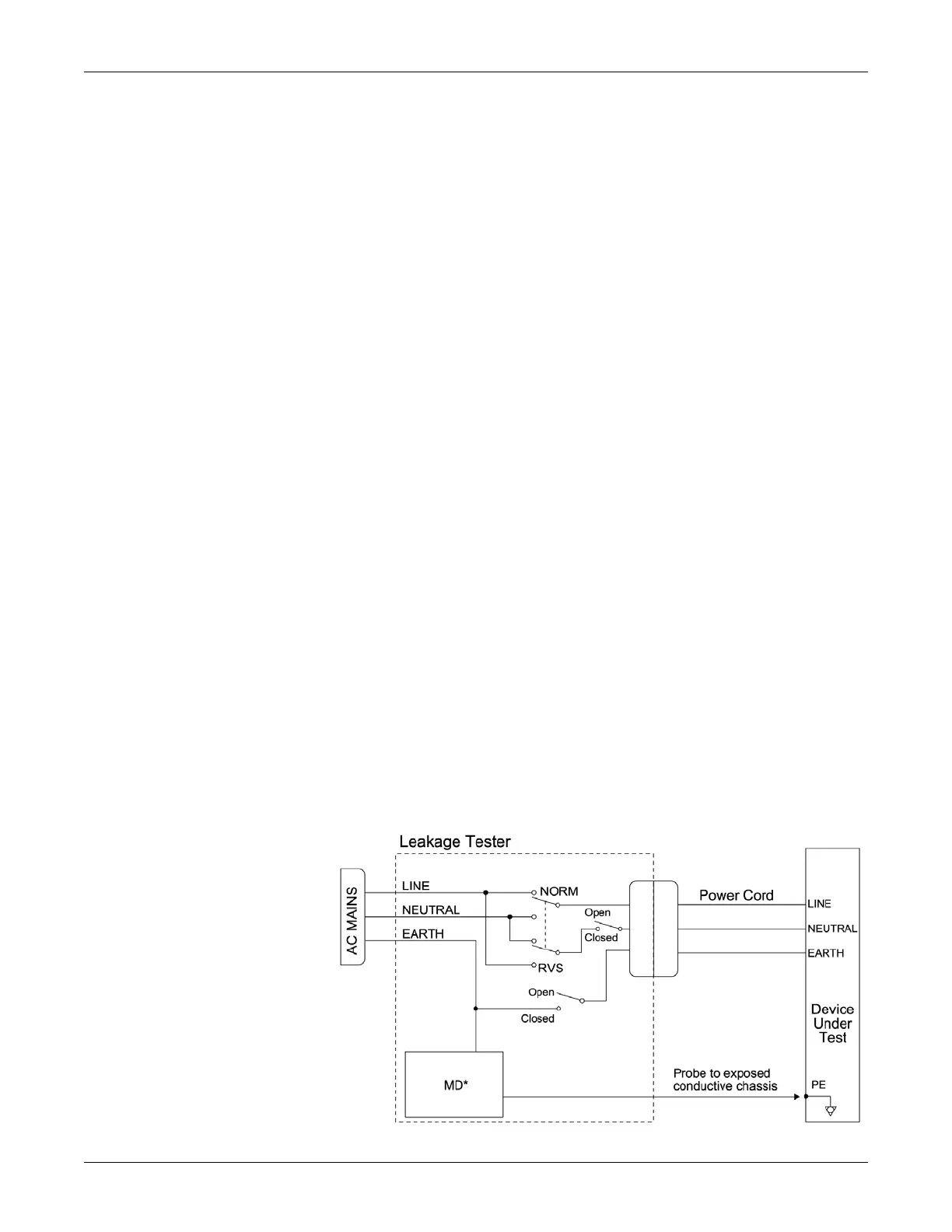

Enclosure (Touch) leakage current test
Perform this test to measure current leakage through exposed conductive
surfaces on the device under test during normal operation. Refer to the
instructions contained with the safety analyzer to perform enclosure
leakage current test.
