Functional and electrical safety checks: Functional Checkout procedures
8-32 Dash 3000/4000/5000 2000966-542D
Pulse oximetry tests for Masimo SET SPO2
Equipment
Use the following equipment for these tests:
Masimo SpO
2
Test Kit (2021087-001). Includes Masimo Tester and
SPO2 Sensor Adapter Cable.
NOTE
The Masimo Tester is intended for use only with Masimo
instruments or instruments containing Masimo SET oximetry
with standard Masimo PC Series patient cable connectors. See
the Masimo “Directions for Use” that came with the Tester for
more information
The PPR and SPO2 values for the Masimo Tester must be within
these limits: Peripheral pulse rate: 61 bpm
1 bpm; and SPO2
value: 81%
3%.
Procedures

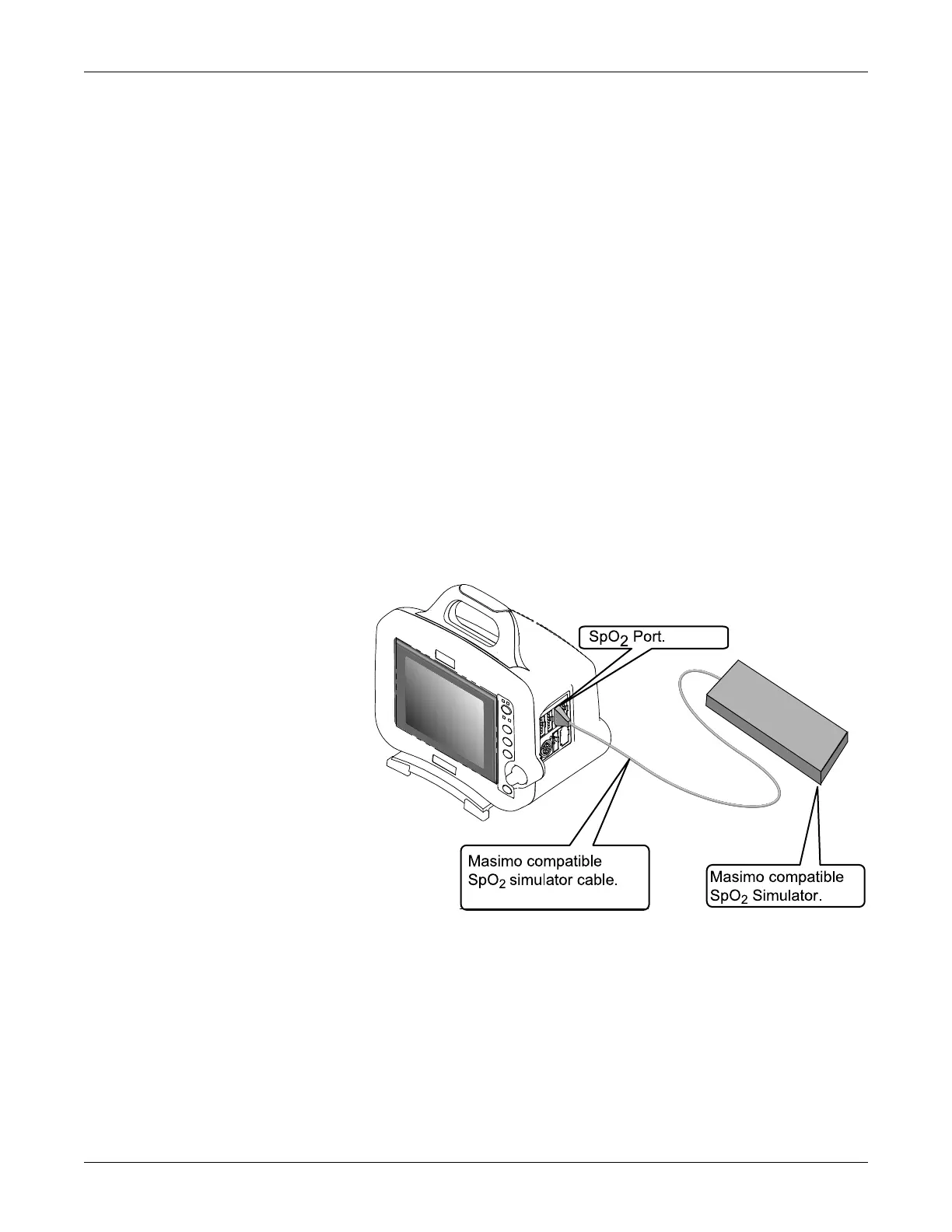

1. Connect the Masimo-style SPO
2
simulator cable between the SPO2
connector of the patient monitor and the SPO
2
simulator.
2. Turn on the patient monitor.
3. Verify the following are displayed at the patient monitor: (It might be
necessary to turn the SPO
2
parameter on.)
A waveform with an SpO
2
label.
An SPO
2
% reading between 78 - 84%.
A PPR reading between 60 and 62 beats per minute.
4. Disconnect the simulator cable from the module.
To Next Page
